Rear Chassis Fan
The rear fan is mounted to the rear chassis wall and secured by four Phillips screws.
1.
Prepare the computer for disassembly (
Preparation for Disassembly on page 31
2.
Remove the computer access panel (
Computer Access Panel on page 34
3.
Disconnect the fan control cable from the red/brown system board labeled CHFAN2.
4.
Remove the four screws that secure the fan housing to the chassis.
5.
Remove the fan from the chassis.

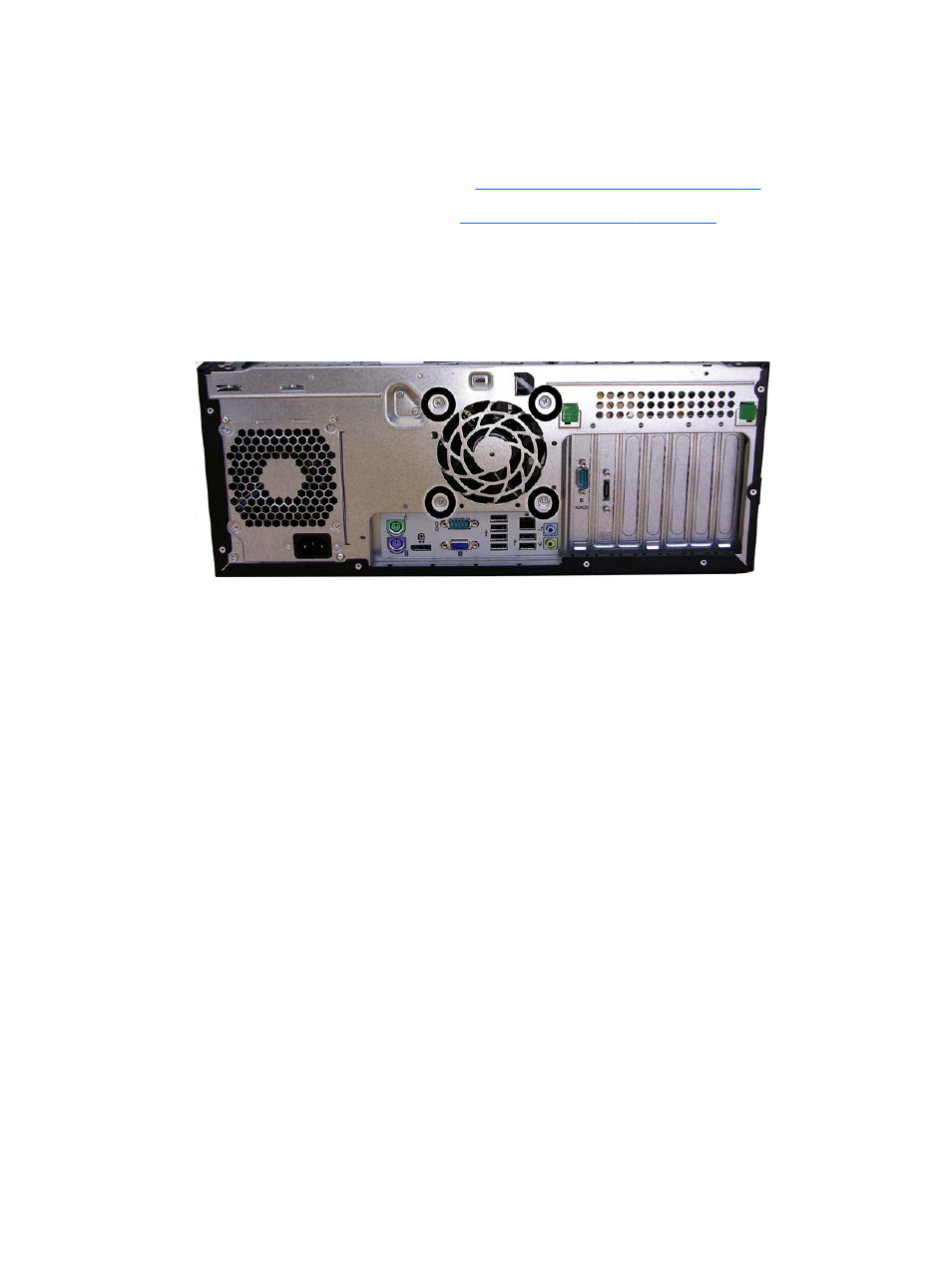

Figure 5-40
Removing the rear chassis fan
To install the fan, reverse the removal procedure. Be sure to orient the air flow out of the unit.
Rear Chassis Fan
67
