Front Bezel
1. Prepare the computer for disassembly ( Preparation for Disassembly on page 143 ).
2. Remove the computer access panel ( Computer Access Panel on page 150 ).
3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).

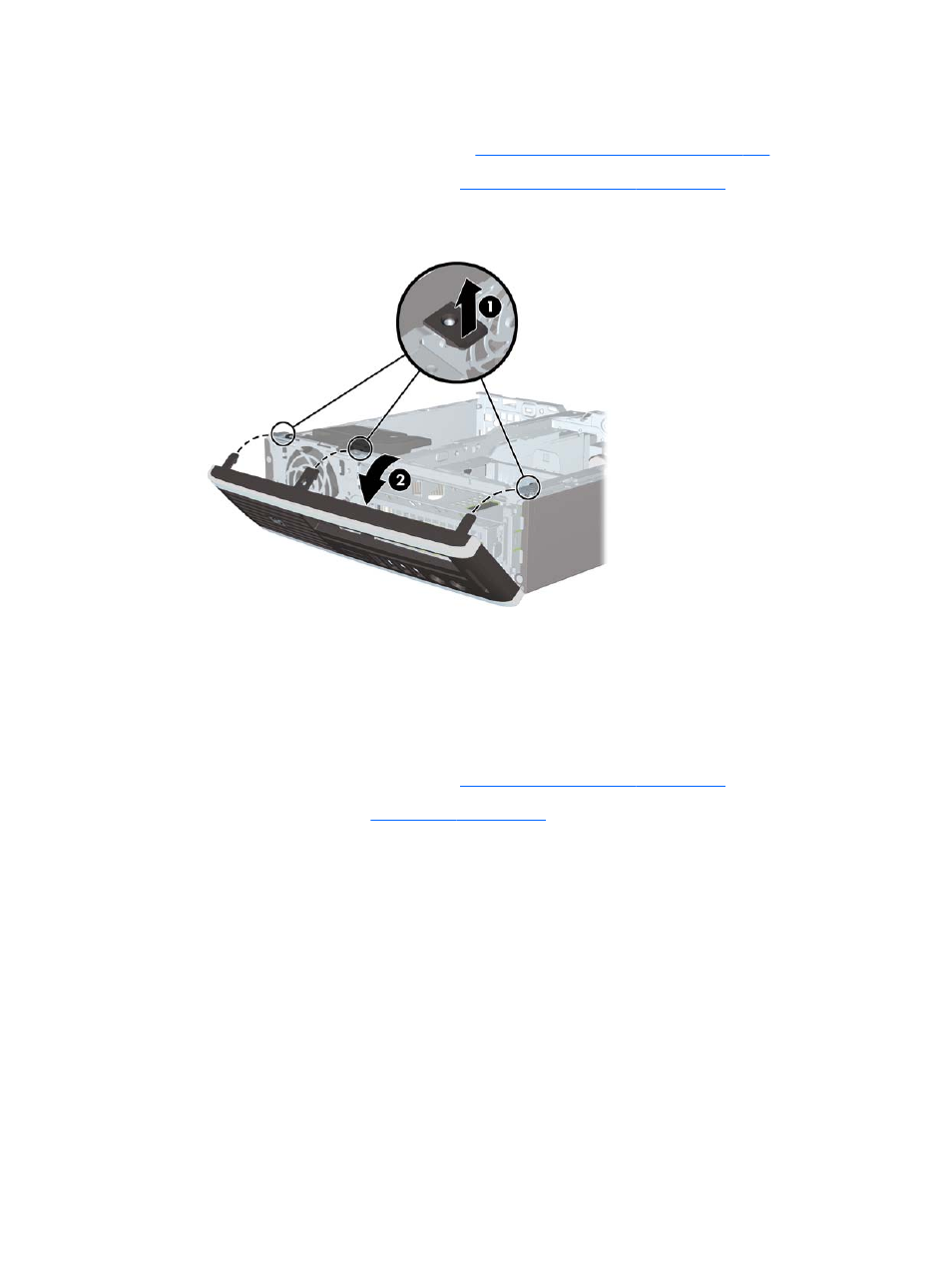

Figure 7-11 Removing the Front Bezel
To install the front bezel, reverse the removal procedure.
Bezel Blank
On some models, there is a bezel blank covering the external drive bay that needs to be removed
before installing a drive. To remove a bezel blank:
1. Remove the computer access panel ( Computer Access Panel on page 150 ).
2. Remove the front bezel ( Front Bezel on page 151 ).
Front Bezel 151
