HP 8080 ELITE BUSINESS User Manual
Page 127
7.
Rotate the drive cage to its upright position.

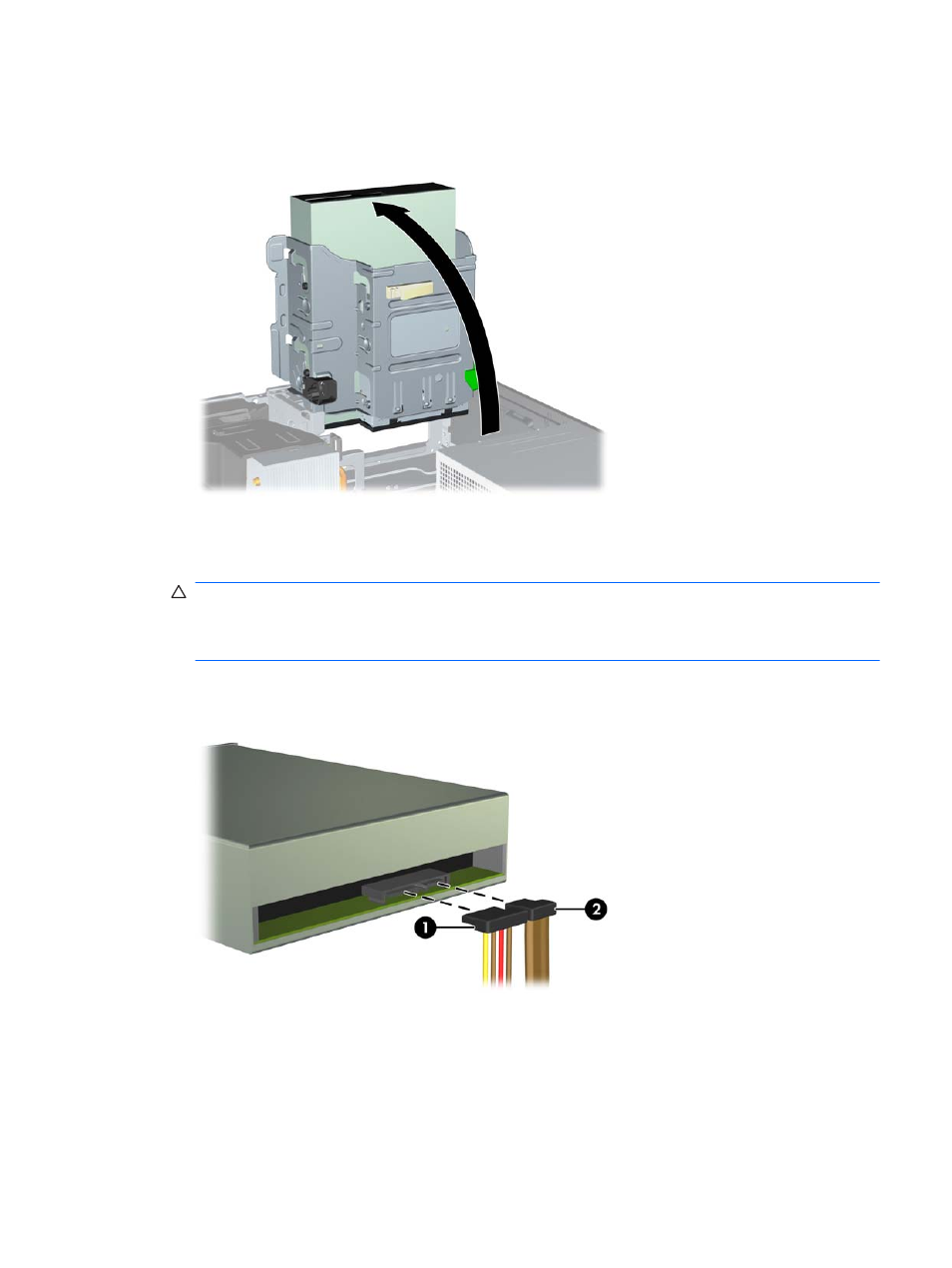

Figure 6-33
Rotating the Drive Cage Up
8.
Connect the SATA data cable to the white system board connector labeled SATA1.
9.
Route the data cable through the cable guides.
CAUTION:
There are two cable guides that keep the data cable from being pinched by the
drive cage when raising or lowering it. One is located on the bottom side of the drive cage. The
other is located on the chassis frame under the drive cage. Ensure that the data cable is routed
through these guides before connecting it to the optical drive.
10.
Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Figure 6-34
Connecting the Power and Data Cables
Drives 115
