Speaker
The speaker is mounted to the inside front of the chassis with two screws.
1. Prepare the computer for disassembly ( Preparation for Disassembly on page 31 ).
2. Remove the computer access panel ( Computer Access Panel on page 34 ).
3. Disconnect the speaker wire from the white system board connector labeled SPKR.
4. From the inside of the unit, remove the two screws (1) that secure the speaker to the front of the
chassis.
5. Rotate the top of the speaker downward (2), and then remove it from the chassis.

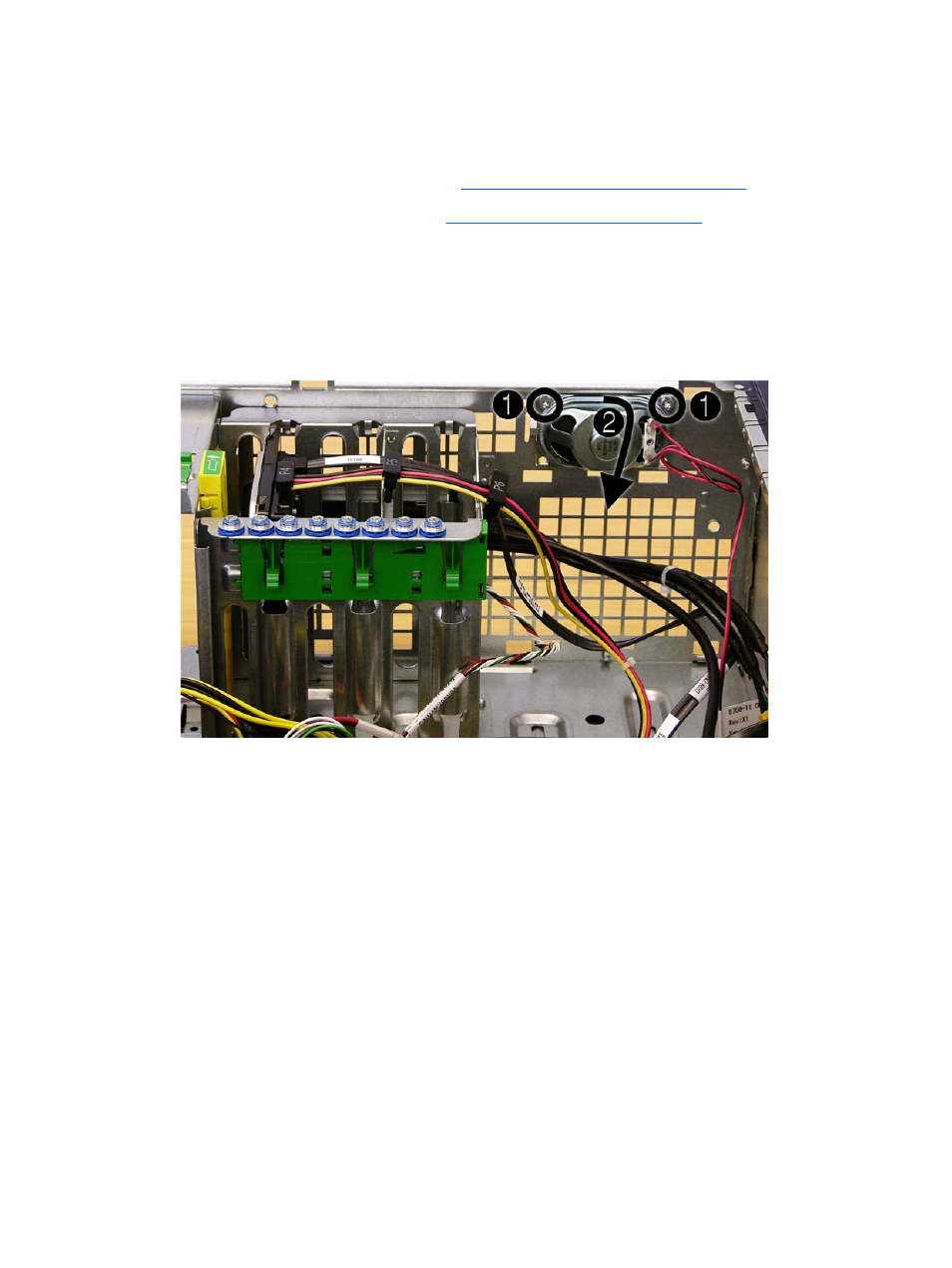

Figure 5-39 Removing the speaker
To install the speaker, reverse the removal procedures.
66 Chapter 5 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
