Hood Sensor
The hood sensor is attached in a slot in the rear of the chassis.
1.
Prepare the computer for disassembly (
Preparation for Disassembly on page 87
2.
Remove the access panel (
Computer Access Panel on page 95
).
3.
Unplug the sensor cable from the white system board connected labeled HSENSE.
4.
Slide the hood sensor straight out of the notch in the chassis.
NOTE:
A flat blade screwdriver can be used to push the hood sensor out of the slot.

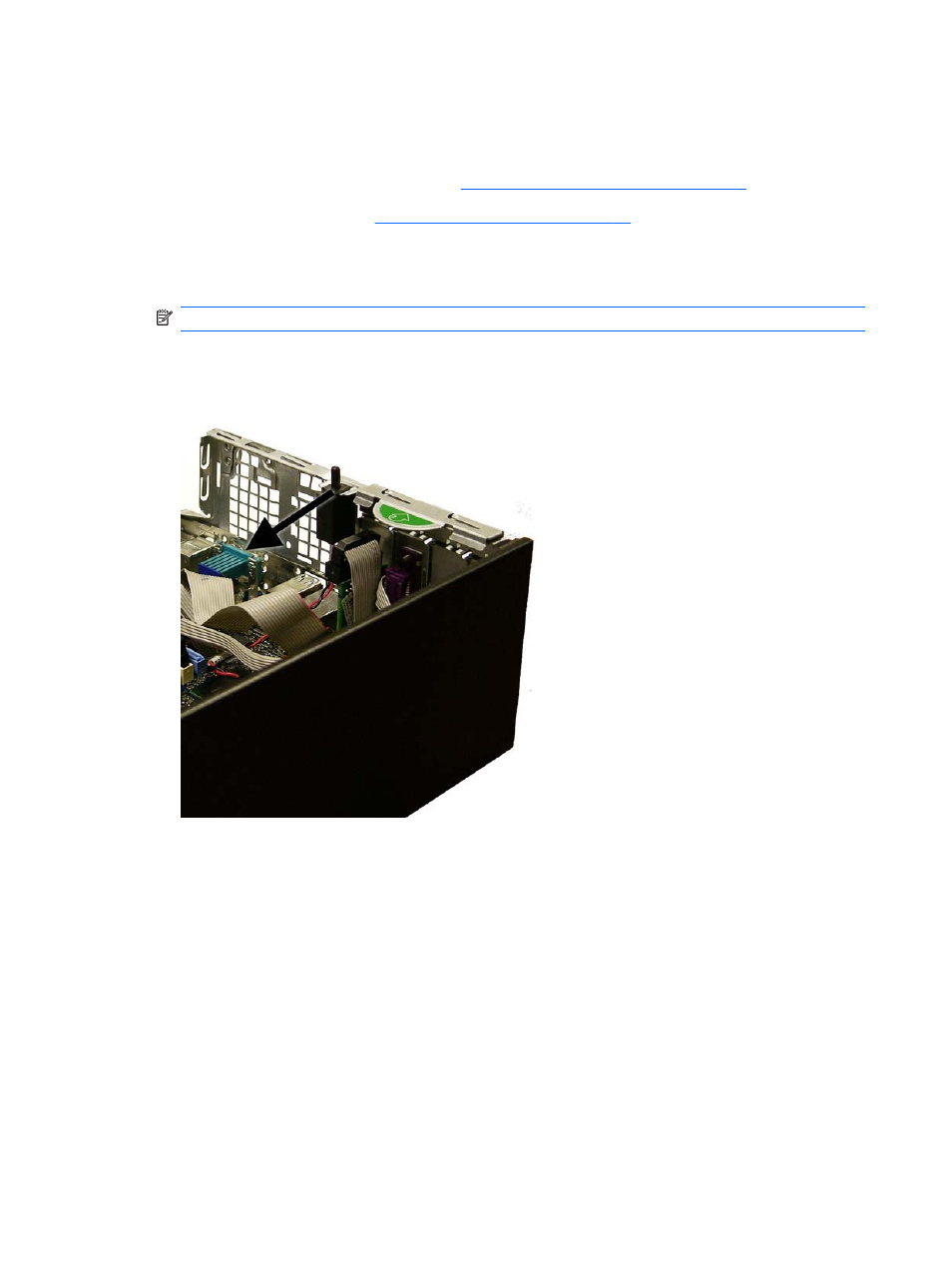

Figure 6-56
Removing the hood sensor from the chassis fan
To install the hood sensor, reverse the removal procedure.
130 Chapter 6 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
