HP 8080 ELITE BUSINESS User Manual
Page 177
5.
Remove the two Torx T15 screws that secure the cage to the chassis (1), lift the tab (2) on the
hard drive cage, slide the cage toward the rear of the unit (3), and then pull the cage up and out
of the chassis.

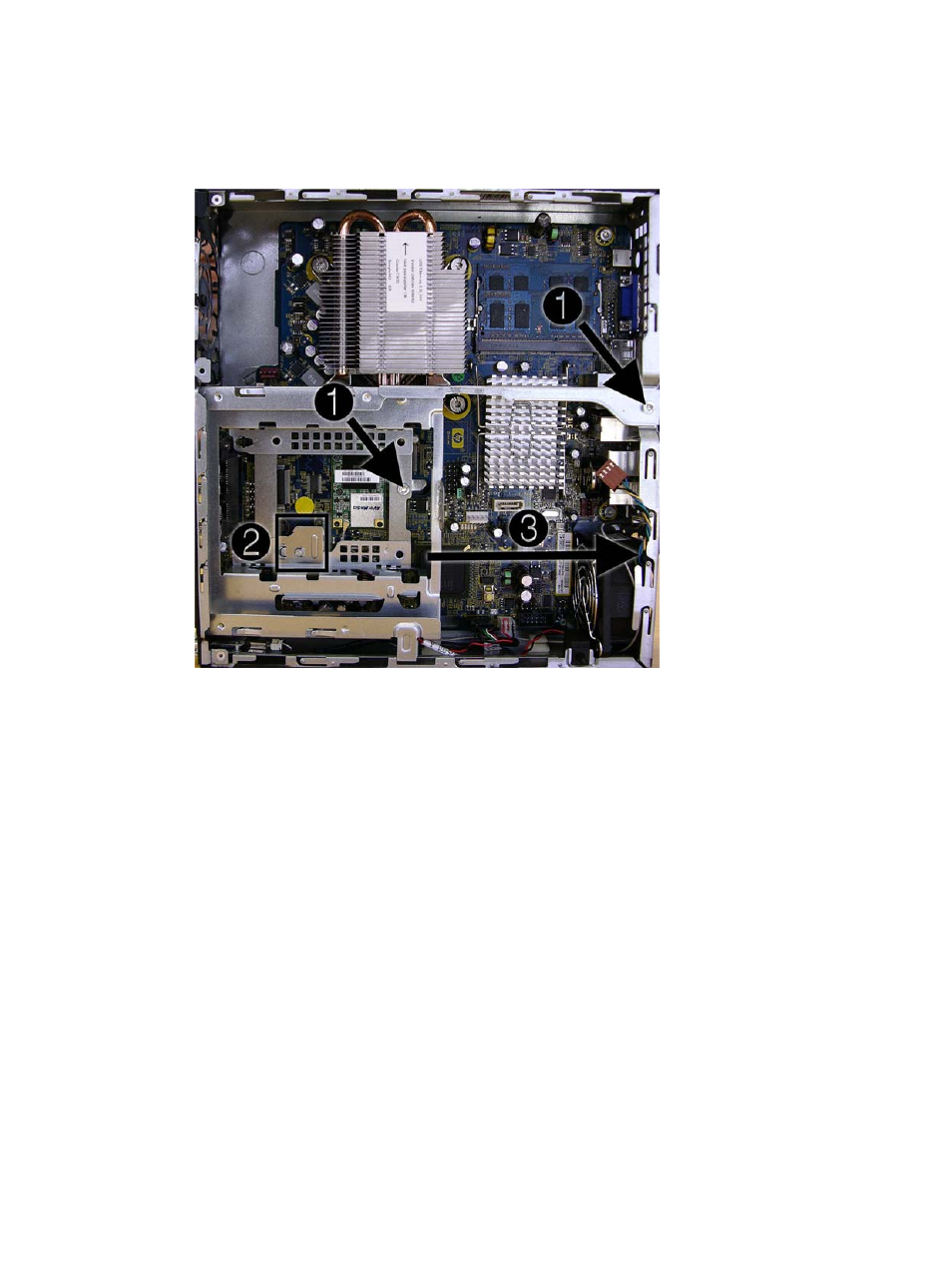

Figure 7-26
Removing the hard drive cage
To install the hard drive cage, reverse the removal procedures.
Hard Drive Cage 165
