HP 8080 ELITE BUSINESS - Manual (Page 56)

4. Press straight down on the two green thumb tabs inside the chassis (1) and rotate the expansion
card retention latch up (2).

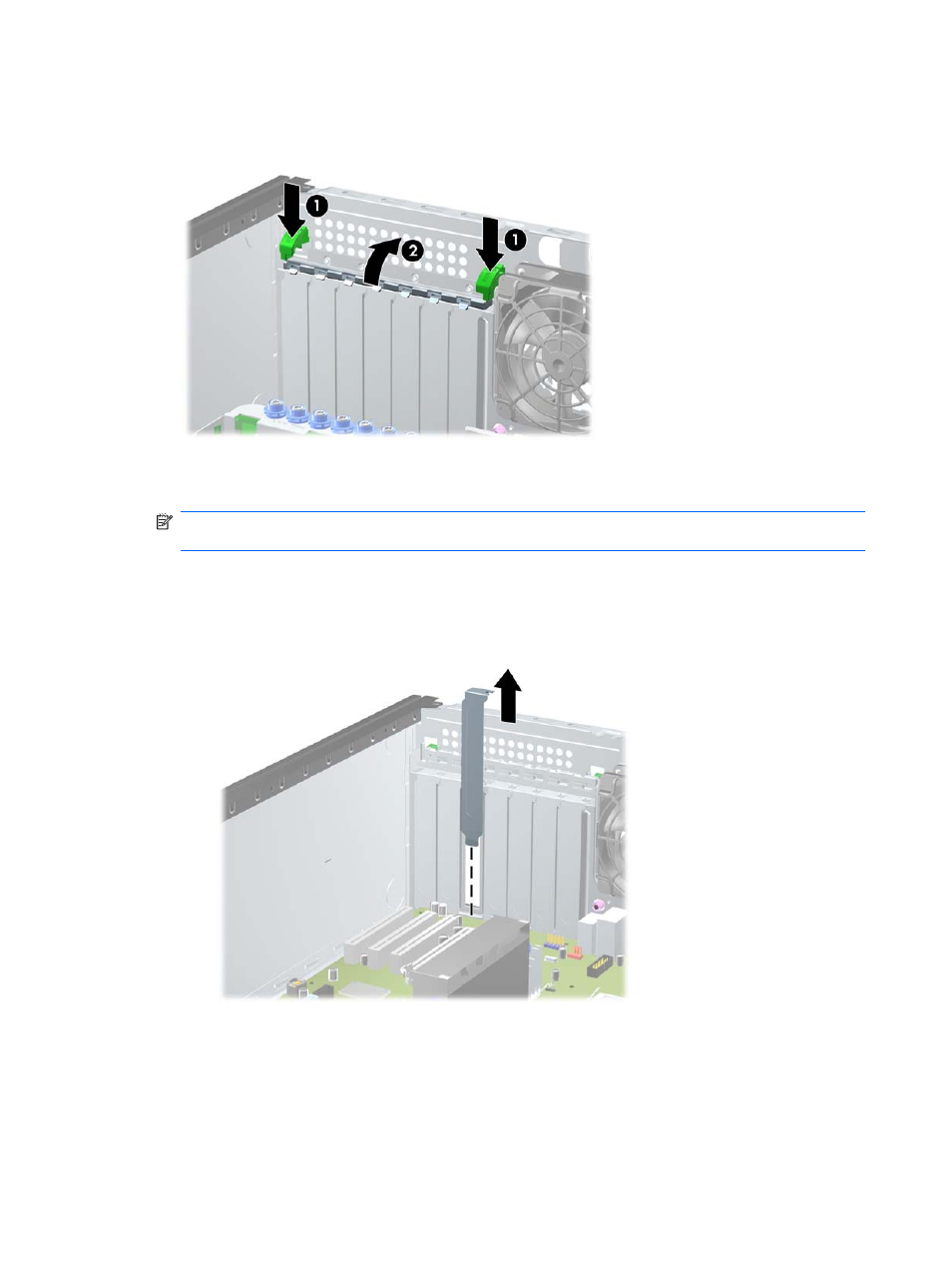

Figure 5-9 Opening the Expansion Slot Retainer
5. Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
a. If you are installing an expansion card in a vacant socket, remove the appropriate
expansion slot cover on the back of the chassis. Lift the expansion slot cover from the
expansion slot.
Figure 5-10 Removing an Expansion Slot Cover
44 Chapter 5 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
