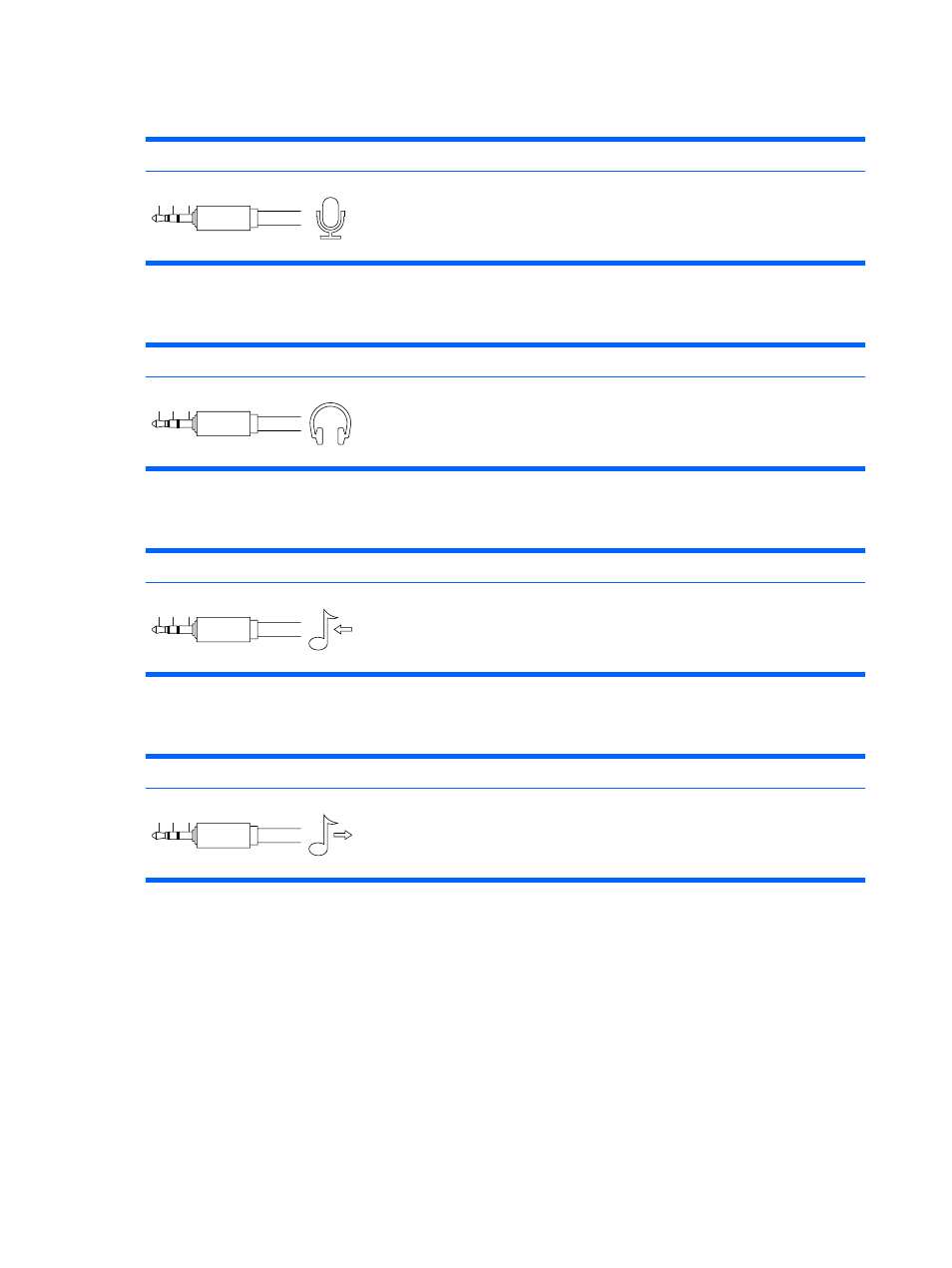

Microphone

Connector and Icon (1/8” miniphone)

Pin

Signal

1 2 3

1 (Tip)

2 (Ring)

3 (Shield)

Audio_left

Power_Right

Audio_right

Headphone

Connector and Icon (1/8” miniphone)

Pin

Signal

1 2 3

1 (Tip)

2 (Ring)

3 (Shield)

Audio_left

Power_Right

Ground

Line-in Audio

Connector and Icon (1/8” miniphone)

Pin

Signal

1 2 3

1 (Tip)

2 (Ring)

3 (Shield)

Audio_In_Left

Audio_In_Right

Ground

Line-out Audio

Connector and Icon (1/8” miniphone)

Pin

Signal

1 2 3

1 (Tip)

2 (Ring)

3 (Shield)

Audio_Out_Left

Audio_Out_Right

Ground

182 Appendix A Connector Pin Assignments
