TV Tuner Module
1. Prepare the computer for disassembly ( Preparation for Disassembly on page 143 ).
2. Remove the computer access panel ( Computer Access Panel on page 150 ).
3. Remove the optical drive ( Removing the Existing Optical Drive on page 157 ).
4. Remove the hard drive ( Hard Drive on page 161 ).
5. Remove the hard drive cage ( Hard Drive Cage on page 164 ).
6. Remove the heat sink ( Heat sink on page 170 ).
7. Disconnect the antenna cable from the connector on the TV tuner module.
8. Remove the two Torx T5 screws that secure the TV tuner module to the system board.
9. Lift the card to a 45 degree angle, and then remove the module from the connector by pulling it
away at an angle.

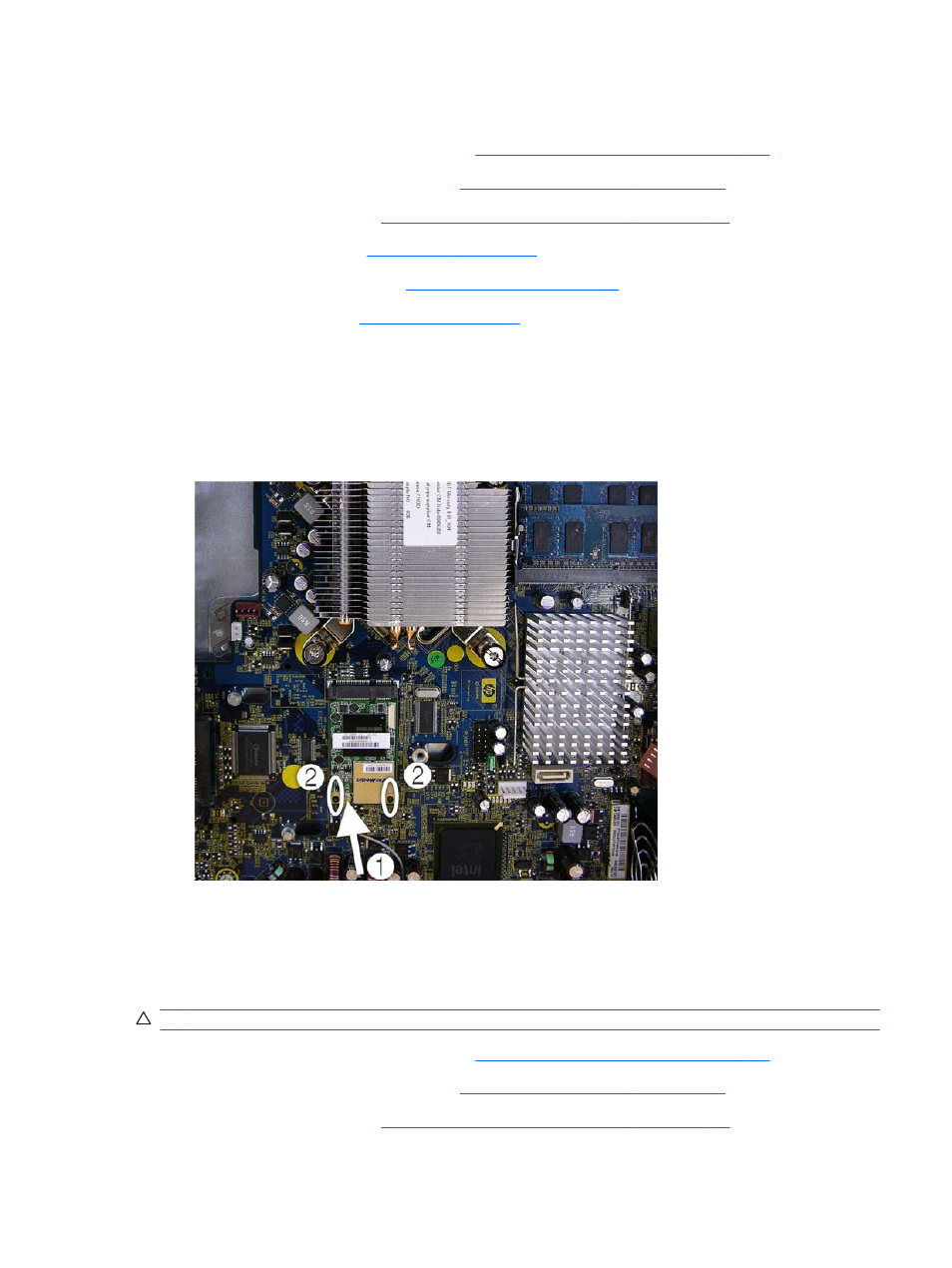

Figure 7-34 Removing the TV tuner module
To install the TV tuner module, reverse the removal procedure. Make sure the antenna cable is
correctly routed over the speaker and in the clips mounted on the inside chassis wall.
System Board
CAUTION: Be very careful when removing or replacing the system board to prevent damaging it.
1. Prepare the computer for disassembly ( Preparation for Disassembly on page 143 ).
2. Remove the computer access panel ( Computer Access Panel on page 150 ).
3. Remove the optical drive ( Removing the Existing Optical Drive on page 157 ).
