L100 Inverter
Confi
gur
in
g
Dr
iv
e P
a
ra
mete
rs
3–3
Using Keypad Devices
Inverter Font Panel Keypad

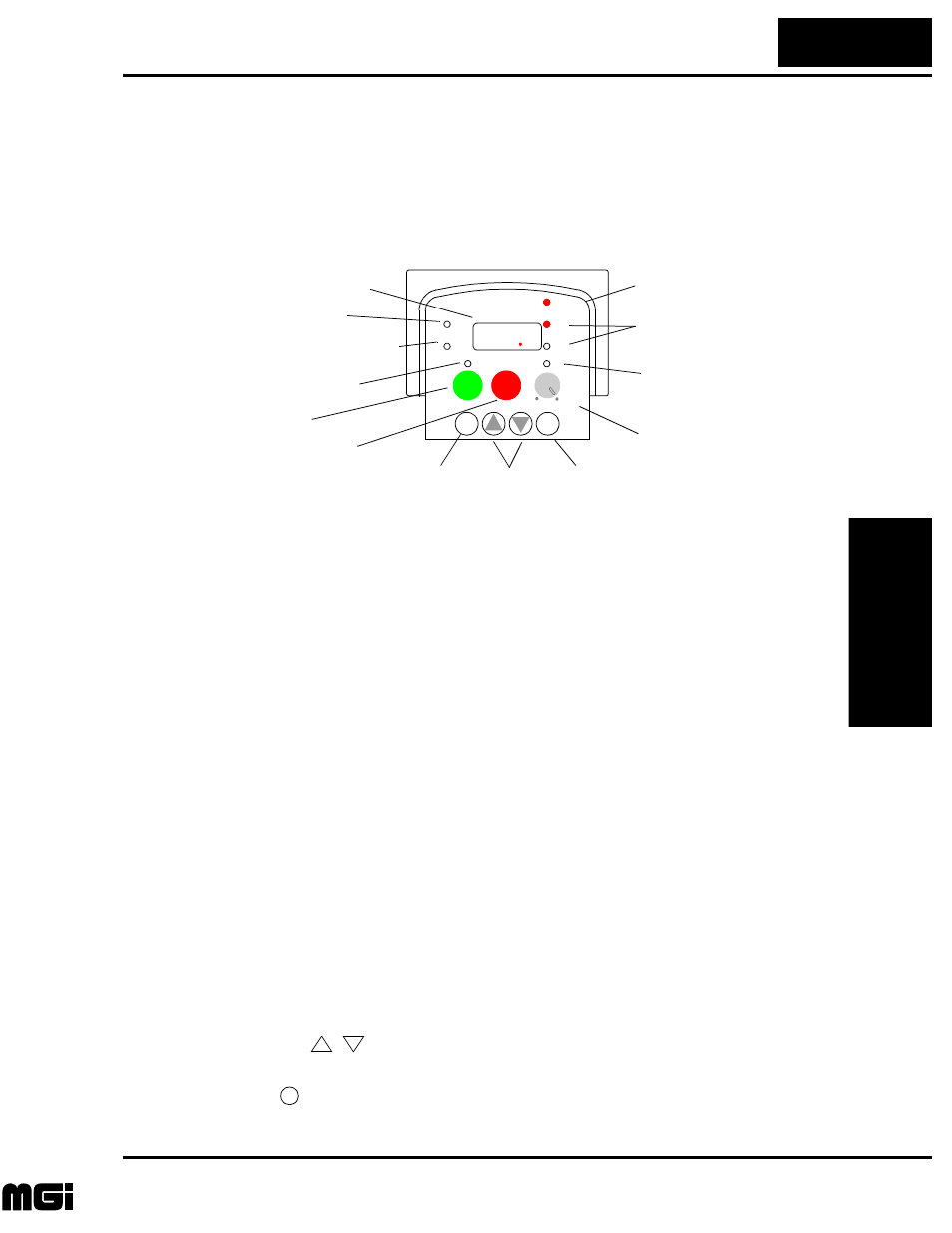

The L100 Series inverter front keypad contains all the elements for both monitoring and
programming parameters. The keypad layout is pictured below. All other programming
devices for the inverter have a similar key arrangement and function. The DOP Plus PC
software has an on-screen keypad as well.
Key and Indicator Legend
• Run/Stop LED - On when the inverter output is running the motor (Run Mode), and
Off when the inverter output is Off (Stop Mode).
• Program/Monitor LED - This LED is On when the inverter is ready for parameter
editing (Program Mode). It is Off when the parameter display is monitoring data
(Monitor Mode).
• Run Key - Press this key to run the motor (the Run Enable LED must be On first).
• Run Enable LED - is On when the inverter is ready to respond to the Run command,
Off when the Run command is disabled.
• Stop/Reset Key - Press this key to stop the motor when it is running (uses the
programmed deceleration rate). This key will also reset an alarm which has tripped.
• Potentiometer - allows an operator to enter data for selecting a scalar value from a
range, associated with the inverter output frequency.
• Potentiometer Enable LED - On when the potentiometer is enabled for value entry.
• Parameter Display - a 4-digit, 7-segment display for parameters and function codes.
• Display Units, Hertz/Amperes - One of these LEDs will be On to indicate the units
associated with the parameter display.
• Power LED - This LED is On when the power input to the inverter is On.
• Function Key - This key is used to navigate through the lists of parameters and
functions for setting and monitoring parameter values.
• Up/Down ( , ) Keys - Use these keys to alternately move up or down the lists of
parameter and functions shown in the display, and increment/decrement values.
• Store ( ) Key - When the unit is in Program Mode and the operator has edited a
parameter value, press the Store key to write the new value to the EEPROM.
0 5 0 Hz
POWER
A
RUN
PRG
RUN
STOP STOP STOP STOP
RESET
MIN MAX
HITACHI
FUNC. STR 1 2
Function
key
Up/Down
keys
Store
key
Run Enable LED
Run Key
Program/Monitor LED
Run/Stop LED
Stop/Reset Key
Potentiometer
Display Units
Power LED
Hertz / Amperes LEDs
Parameter Display
Potentiometer
Enable LED
1
2
STR
