Introduction

A motor control system will obviously include a motor and inverter, as well as fuses for
safety. If you are connecting a motor to the inverter on a test bench just to get started,
that’s all you may need for now. But a fully developed system can also have a variety of
additional components. Some can be for noise suppression, while others may enhance

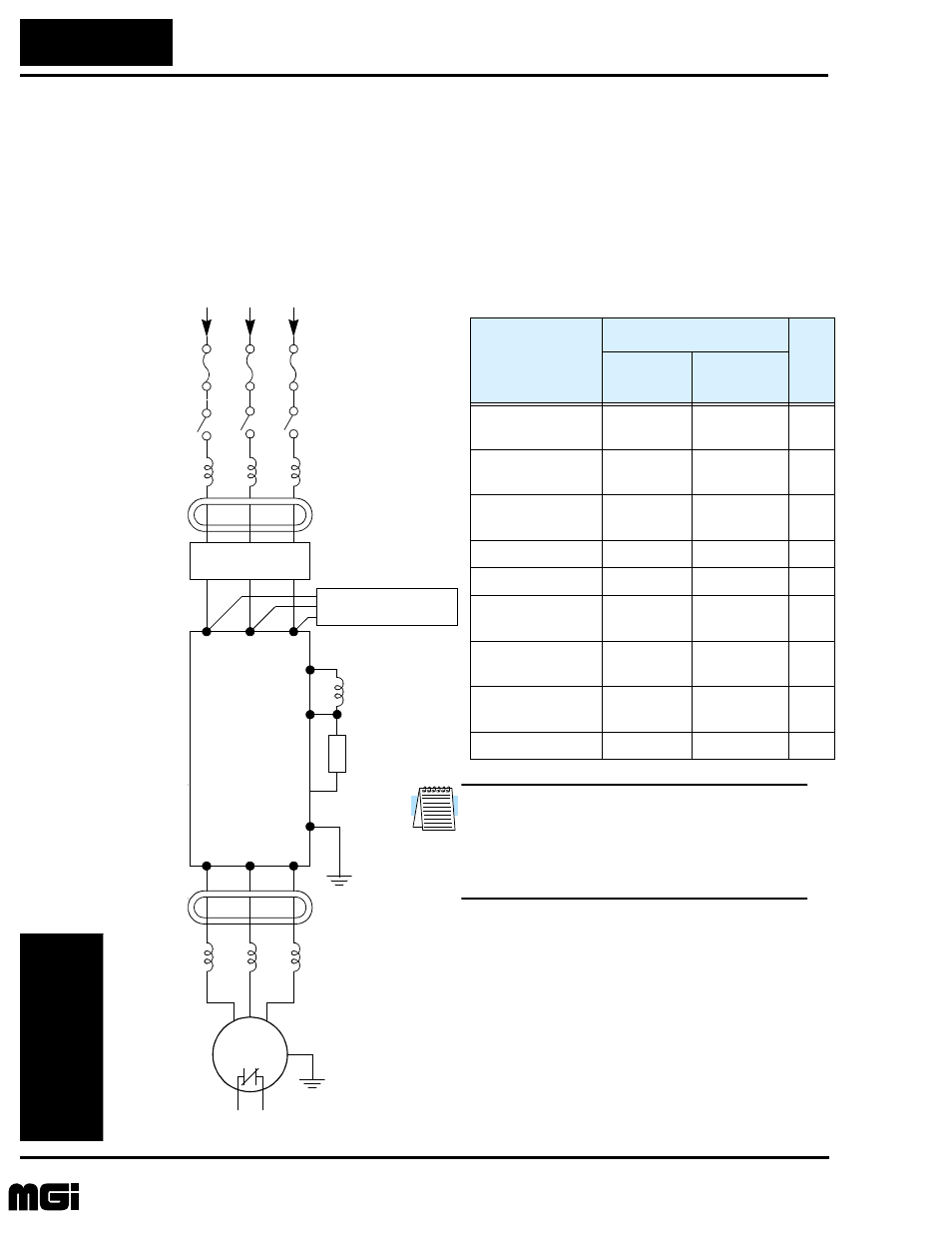

the inverter’s braking performance. The figure below shows a system with several
possible optional components, and the table gives part number information.

NOTE: The Hitachi part number series for
accessories includes different sizes of each part
type, specified by the –x suffix. Hitachi product
literature can help match size and rating of the
your inverter to the proper accessory size.

Each inverter accessory comes with its own
printed instruction manual. Please refer to those
manuals for complete installation details. This
chapter gives only an overview of these optional
system devices.

Name

Part No. Series

See

page

Europe,

Japan

USA

AC reactor, input
side

ALI–xxx

HRL–x

3

RF noise filter,
input side

ZCL–x

ZCL–x

4

EMI filter
(for CE)

FFL100–xx

FFL100–xx

4

Capacitive filter

CFI–x

CFI–x

4

DC link choke

HDC–xxx

4

Resistance
braking unit

BRD–xxx

BRD–xxx

5

RF noise filter,
output side

ZCL–xxx

ZCL–xxx

4

AC reactor, output
side

ALI–xxx

HRL–xxx

3

LCR filter

HRL–xxC

3

From power supply

Motor

Inverter

L1

L3

L2

T1

T3

T2

GND

+

+1

AC reactor, or

LCR filter

RF noise

filter

DC link choke

AC reactor

EMI filter

Capacitive filter

Braking

unit

RF noise filter

Thermal switch

Cut-off
switch
