Adjustments

Stylus Color Service Manual

Move the carnage manually to the right adjust position and repeat steps 3 and 4, referring to

Figures 418 and 419.

0.04

Thickness

Carriage Roller

I l l

Gauge

Front Frame

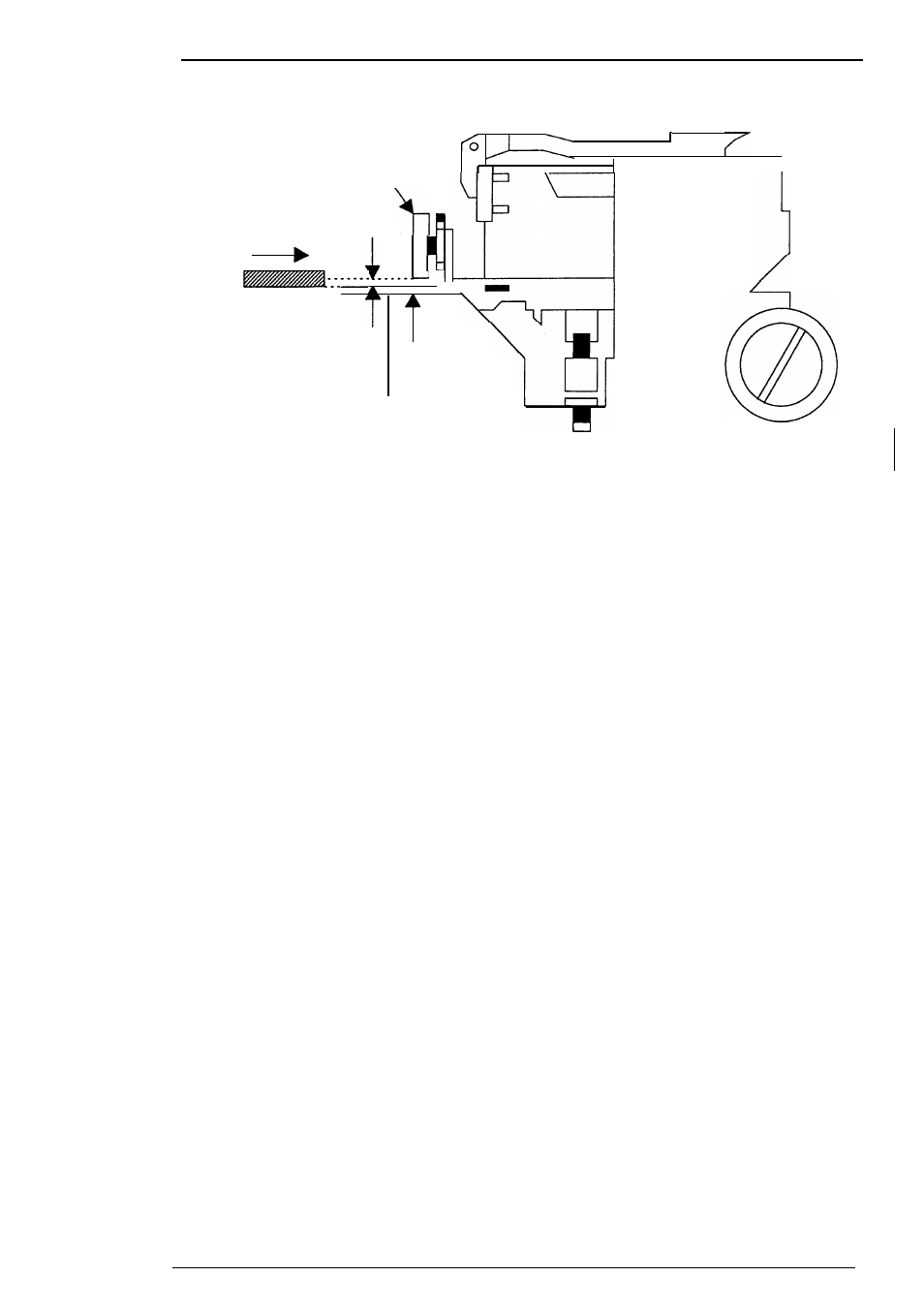

Figure 4-19. Confirming the Gap

4.1.8 Internal Timer Reset Operation

This operation is required when replacing the M-4A1O printer mechanism. There are 6 timers in
this printer:

1. Refresh timer

2. Timer (monochrome and CMY)
3. Flushing level decision timer
4. Fail absorbing timer
5. Total print timer
6. PAUSE timer

When

replacing the printer mechanism, it is necessary to reset the timers as described here:

1. Connect the PC to the target printer and turn on the printer.

2. Execute BASIC on the PC and run the VERXXX.BAS program.

1. Destination Setting

2. Head Angle Confirmation Pattern Printing

(Head Front/Rear Vertical Position Printing)

3. Head Front/Rear Vertical Position Confirmation

4. Head Gap Adjustment

5. Bi-D Adjustment
6. Internal Timer Reset
7. END

When the main menu appears, choose ‘Internal timer reset” by entering “6”. This resets the

internal timer. The following message then appears.

All parameters of the internal timer
are now reset. Press Y and ENTER
to return to the main menu.

4. Press “Y’’and ENTER.

5. Press “7” and ENTER.
6. Turn off the printer.

Rev. D

4-17
