2.2.5 Pump Mechanism
The paper feed motor drives the pump mechanism when the transmission gear is moved to the
position where the paper feed motor disengages the pump mechanism gear trains, when the
carriage unit is at the ink system home position. The figure below shows a block of the pump
mechanism. Pump system operation depends on the rotational direction of the paper feed drive
motor, as shown in Table 2-6.
Drive: Pump Mechanism
Carriage
Hook
Spring
Release
PF Motor

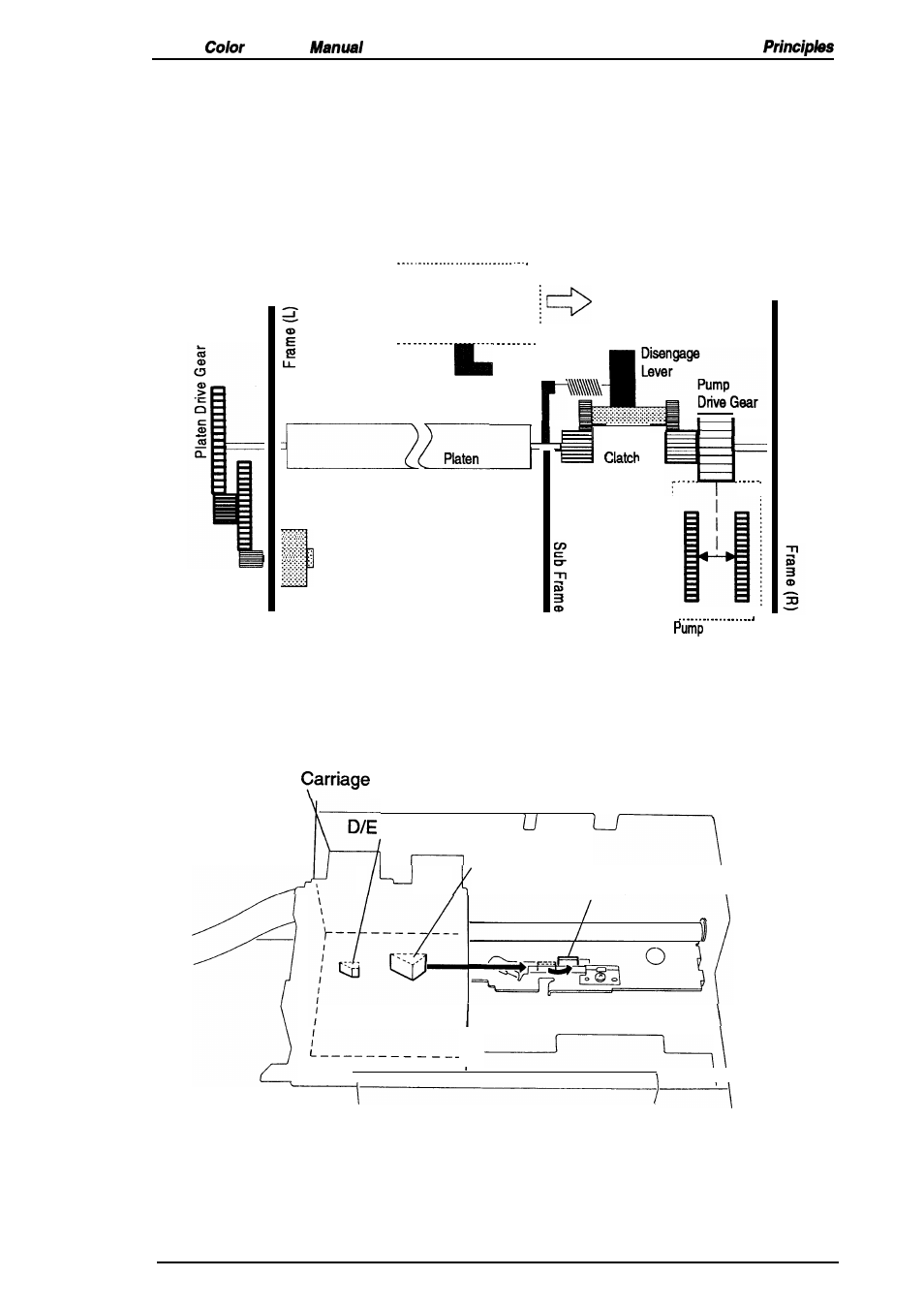

Figure 2-9. Pump Mechanism Block
Unit
Drive: Switch Lever Set
D/E Reset Lever
D/E Set Lever
D/E Lever \
I
L.
H
Figure 2-10. Switch Lever Set
