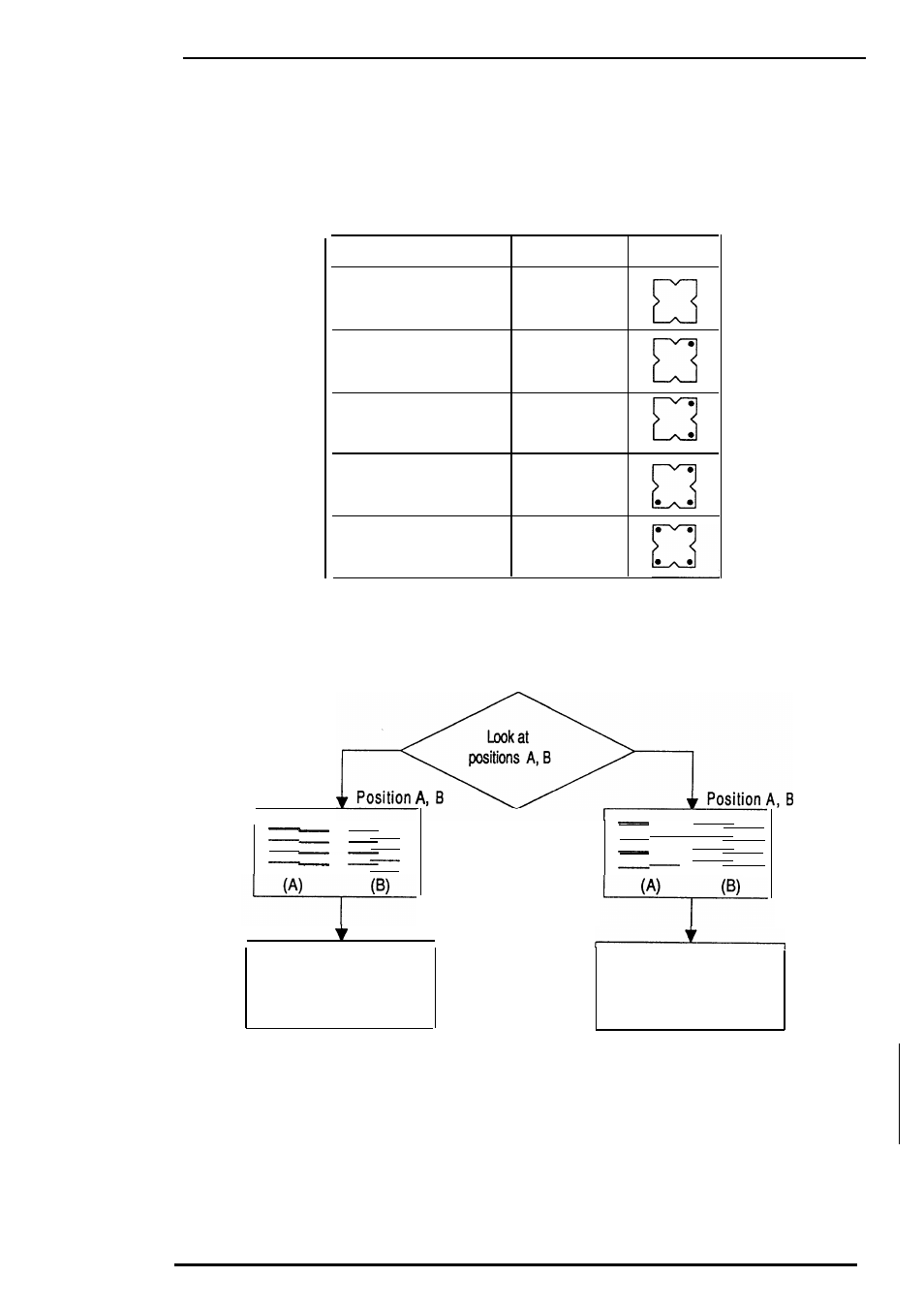

The angular spacer for the color head come in five thicknesses, each having its own shape. The
following figure shows the relation of the shape and the thickness level.
Since the color head is not equipped with
a
linear spacer, the angle adjustment is decided only by
the angular spacer (exclusive use for color head), which is placed under the left side of the base
h e a d .
Angular Spacer (For Color Head)
Spacer Name Thickness Shape
angular spacer YMC 0.30
●
angular spacer YMC-B 0.35
●
angular spacer YMC-C 0.40
●
●
angular spacer YMC-D 0.45
● ●
● ●
angular spacer YMC-E 0.50
● ●
Figure 4-14. Relationship of the Shape and Thickness
4. In Figure 4-13, pay attention to the position of A and B while you reset the left angular spacer.
The replacement procedure is explained beginning in step 5.
I
r
1
Replace the right Replace the right
angular spacer
angular spacer
with a thicker one
with a thinner one
d
Figure 4-15. Spacer Select Judgement
5. Turn off the printer at once.
6. Move the carnage to the center manually, and loosen (but do not remove) the screw securing
the color head to the carriage.
Rev. D
4-13
