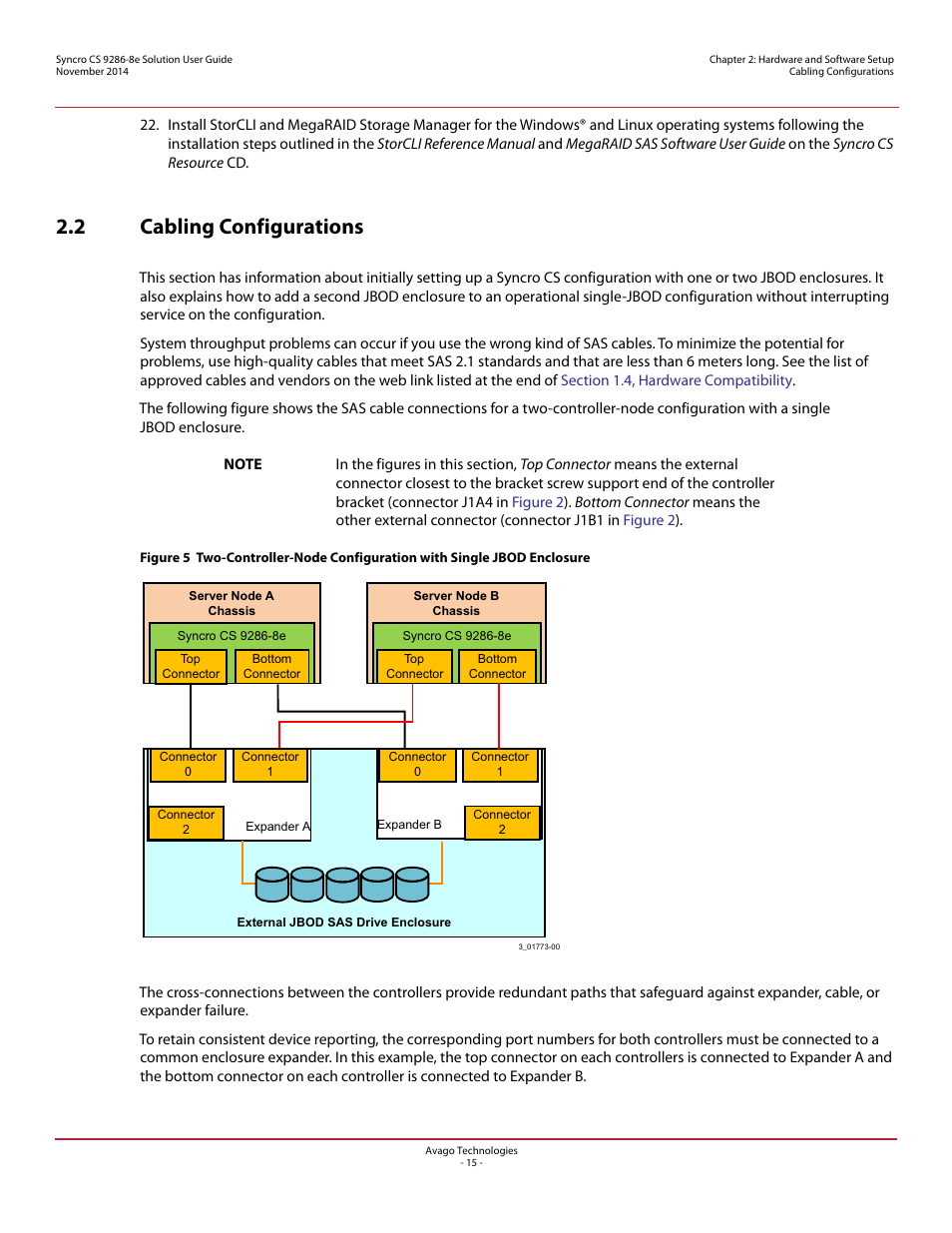

2 cabling configurations, Section, Cabling – Avago Technologies Syncro CS 9286-8e User Manual
Page 15: Configurations
