100

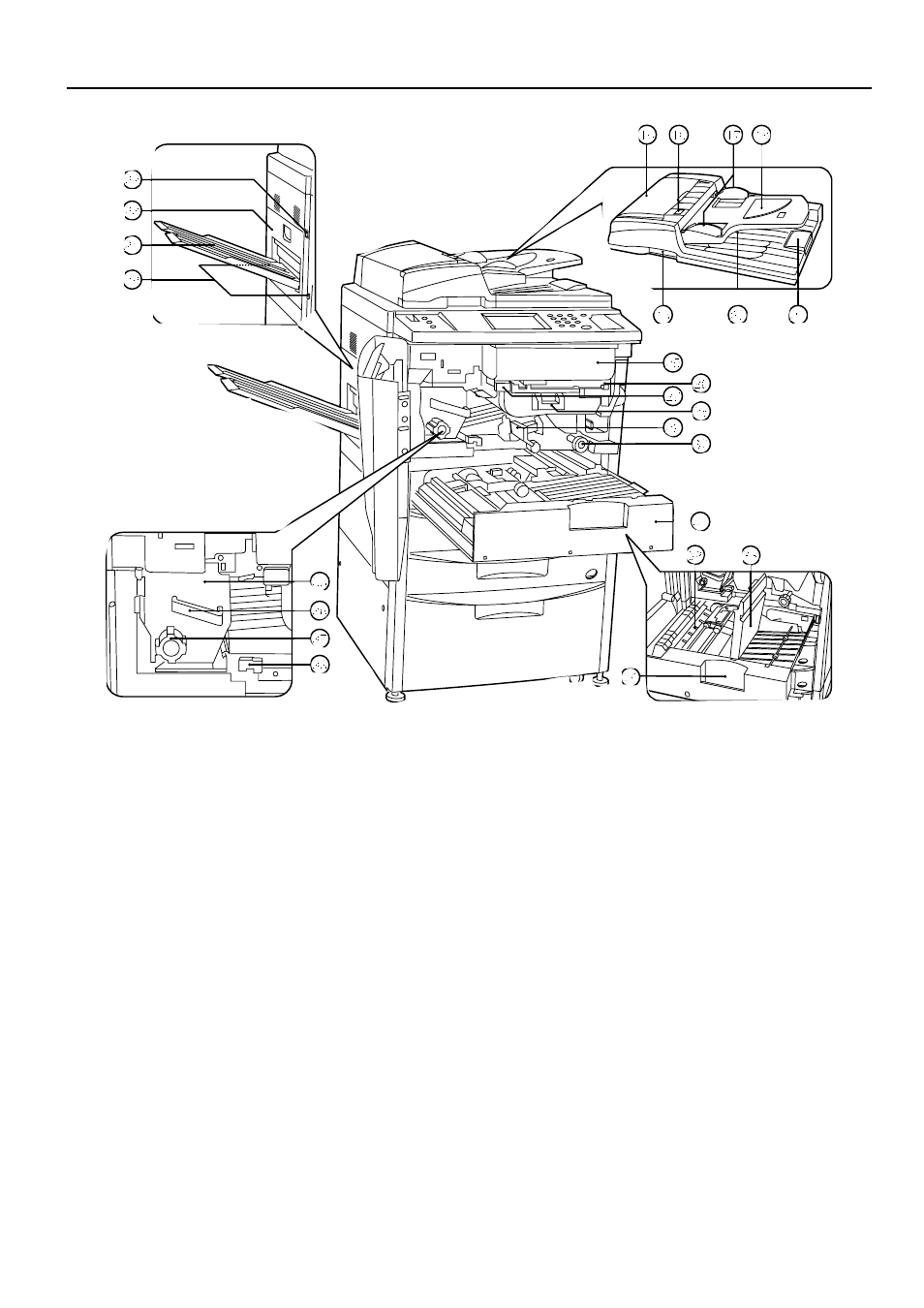

ABOUT 52 PPM COPIER
⁄ Paper ejection guide
(Open when setting an original of B4 or larger in the DF.)
¤ Main switch
(Turn ON ( | ) before starting machine.)
‹ Left cover
(Open when paper misfeed occurs in the fixing unit or
ejection section.)
› Copy tray
(Completed copies will be ejected here.)
fi Toner cartridge
fl Toner cartridge release lever
(Operate when replace a toner cartridge.)
‡ Paper transfer section release button
° Paper transfer section handle
· Paper transfer section release lever
(Operate when paper misfeed occurs in the paper transfer
section.)
‚ Paper feed section knob
(Operate to remove paper misfed in paper feed section.)
ΠDuplex unit
„ Re-feeding section
(Open when paper misfeed occurs in the duplex unit.)
´ Duplex cover
(Open when paper misfeed occurs in the duplex unit.)
‰ Duplex unit handle
(Operate to pull out duplex unit.)
ˇ Fixing unit
Á Fixing unit handle
(Pull out the fixing unit to remove paper misfed in fixing unit
by handling this.)
¨ Fixing knob
(Operate to remove paper misfed in fixing unit.)
ˆ Fixing unit release lever
(Operate to open/close fixing unit.)
Ø Handles for transport
(Pull out to be handle. They are located in four positions.)
