2. Installation and Connection
2-1. Name and Features of Each Part
Buttons are conveniently located on the front panel of the Workhorse 120-4, and various interfaces,
on its rear panel. Workhorse 120-4 can be easily installed in a standard rack using the rack mounting
handles (on the left and right sides).

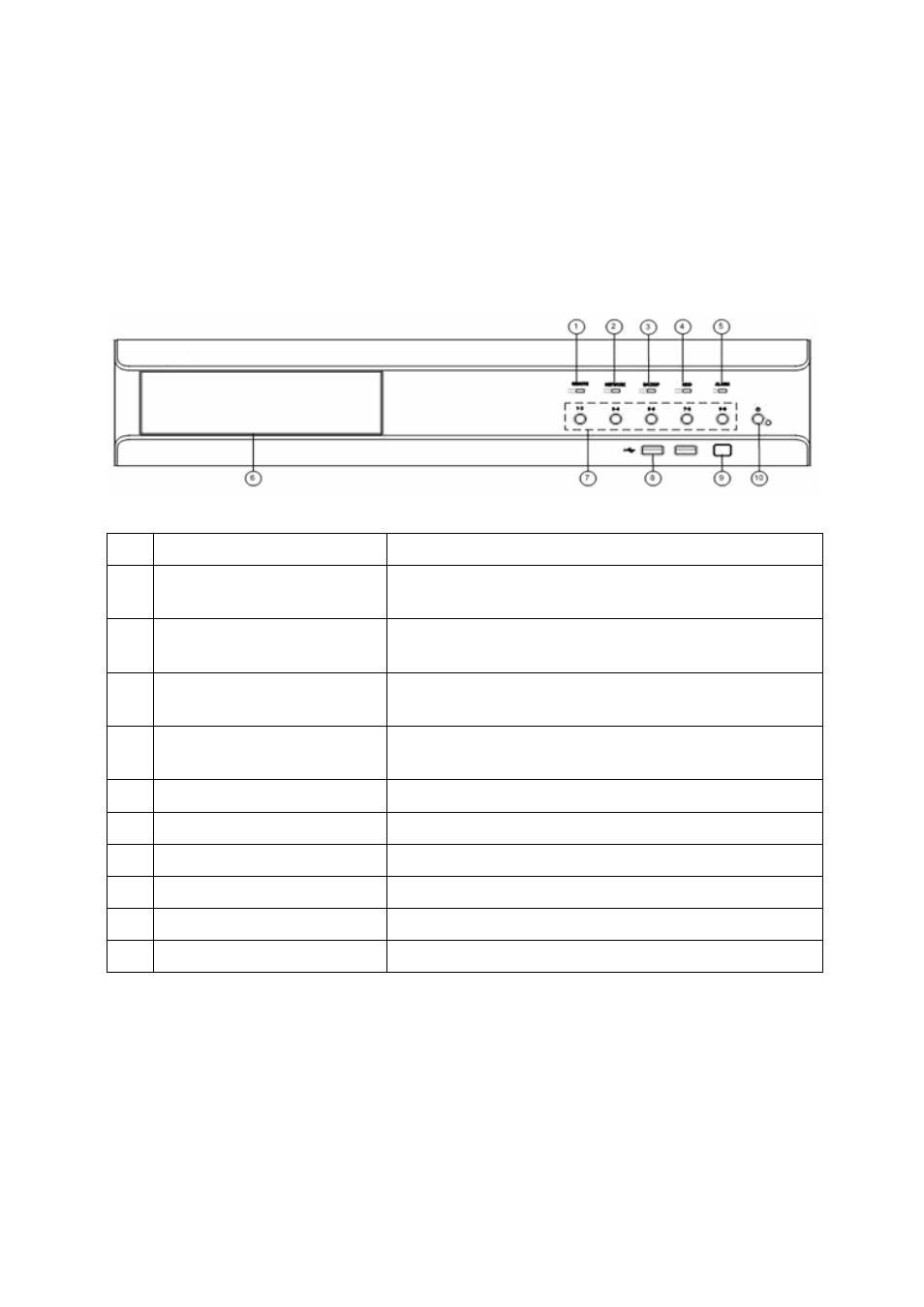

2-1-1. Front Part
No Name Features
1 Remote
The green light is ON when the remote control is
accessing the DVR
2 Network
The green light is ON when the DVR is being accessed
through the network
3 Backup
The green light is ON when the DVR is making a
backup
4 HDD
The green light is turned ON when the hard drive is
operating.
5 Alarm The red light is ON when an alarm is triggered.
6 CD-RW/DVD-RW CD-RW/DVD-RW installation slot
7 Numeric buttons Numeric buttons
8 USB External backup device or USB mouse connection
9 Remote control sensor Remote control reception sensor
10 Power
System power ON/OFF or Selection button
