Screen display based on the recording setup and video input of the camera
VL Stands for Video Loss, which indicates camera video loss or absence of video
on that channel
VD Stands for Video Disconnection, which indicates the presence of a video input
on the channel but Record and Live are turned off
VC Stands for Video Covert, which means that recording is done but the video is
hidden only in Live Mode
(5) Channel ON/OFF
Used to connect the camera to each channel port and to set video input

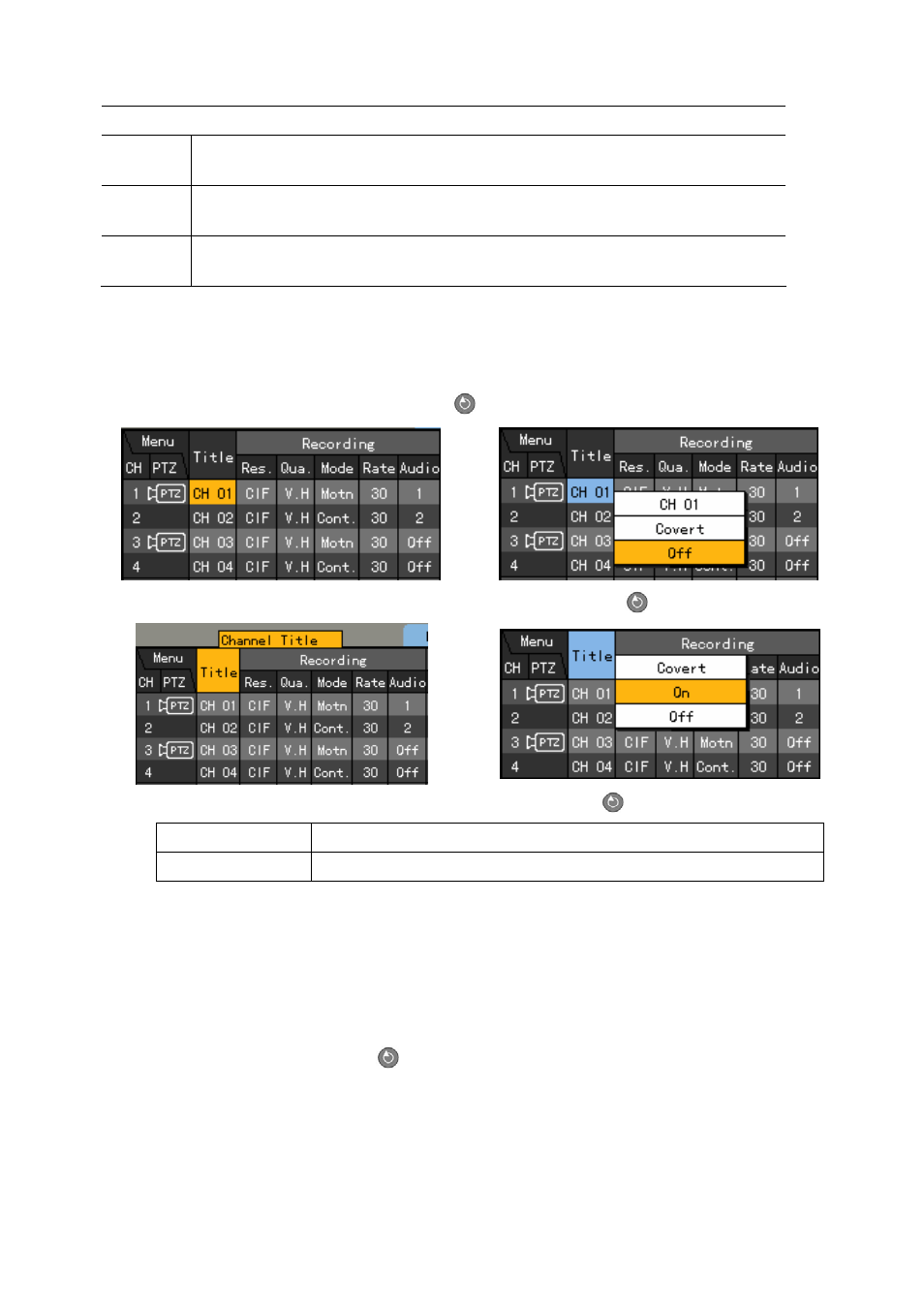

On the {Recording Setup} {Data 1~4} {Title} menu, go to the channel using the arrow
(STW X) buttons and press the [Select] button.
To set all channels at the same time, go to {Title} and press the [Select] button.
On the selection box, go to [On] or [Off] and press the [Select] button.
On Connects the inputted video of the camera
Off
Disconnects the inputted video of the camera
(6) Record
Sets the resolution, recording quality, recording type, recording frame, and audio recording status
A) Resolution
Sets the resolution of the recorded channel
On the {Recording Setup} {Data 1~4} {Recording}->{Resolution} menu, go to the
channel and press the [Select] button.
