5-2 Additional Setup
Additional Setup includes the PTZ setting and network setting.
5-2-1 Selecting the Additional Setup Menu
① On the real-time monitoring screen, select {Live Menu} {Additional Setup}.
② The Additional Setup window will then appear as shown in Figure 5-13.

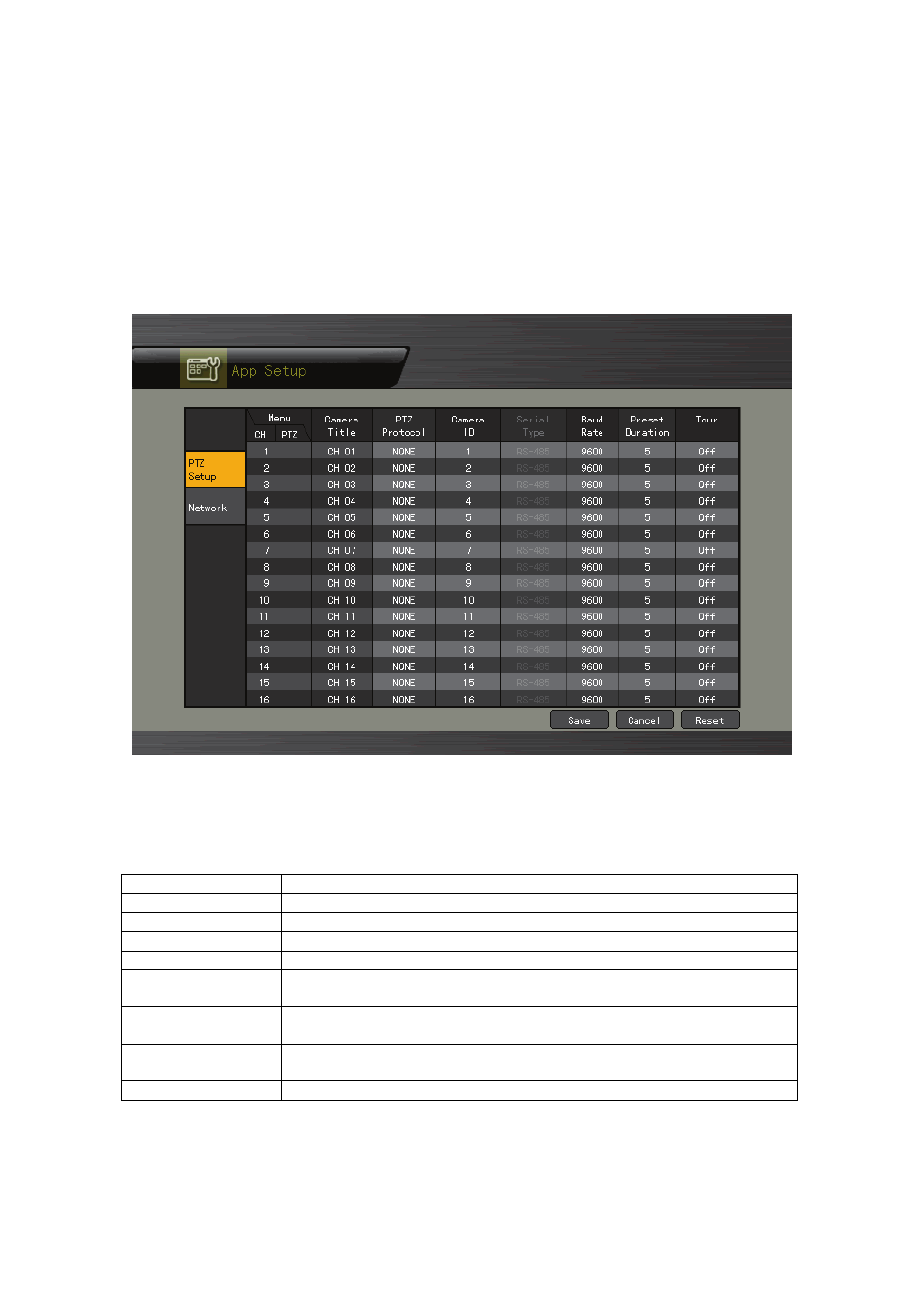

[Figure 5-13. PTZ Setup Window]
5-2-2 PTZ setup
Used to set the PTZ camera connected to the system
Menu CH Displays Channel Nos. 1 ~ 16
Menu PTZ Setting up the PTZ causing a camera icon to be displayed
Camera Title Title for each channel
PTZ Protocol Sets the protocol for communicating with the PTZ camera
Camera ID ID set up in the PTZ camera
Transmission
Type Type of control cable used to control the camera (RS-485)
Transmission
Rate Communication speed (must be the same as that defined in the
camera manual)
Preset
Maintenance Time Time interval required to change to the assigned screen between the
Preset defined in the Tour feature and the next Preset (5 ~60 seconds)
Tour Sets the Tour feature (Tour 1 and Tour 2)
