2-1-2 Back Panel

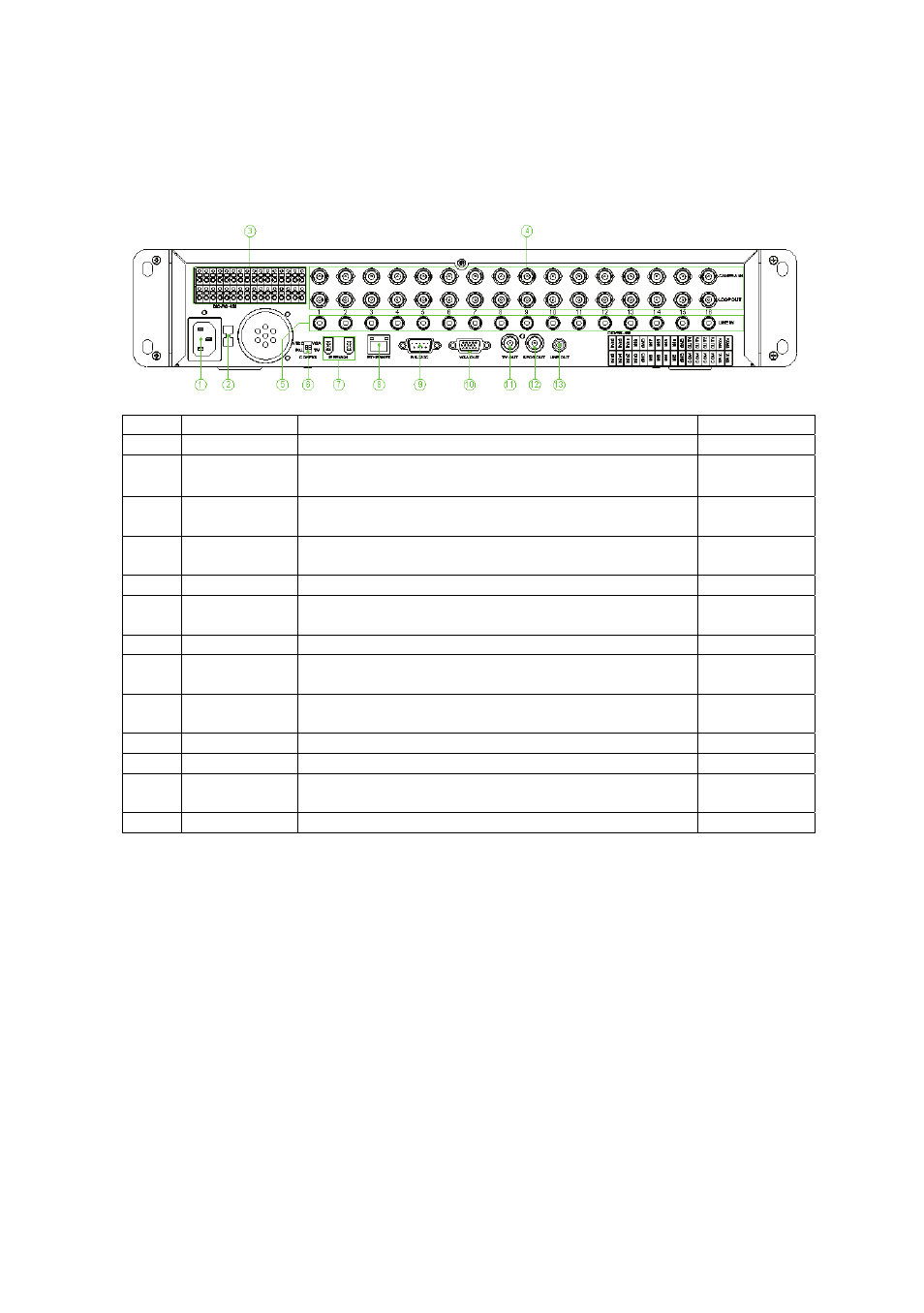

16ch Back Panel (VerteX -1648)
No. Name
Features
Type
1
AC IN
Power cable connection to the body
2 AC
Selector
110V, 220V voltage selection (※ not available for
the Free Voltage case)
3
RS485
DIO
Connection for a PTZ camera control cable
Sensor/Relay extension board connection
Terminal
Block
4
CAMERA IN
LOOP OUT
Connection for the video camera
Connection for the video signal loop-back output
BNC
BNC
5 AUDIO
IN Audio input connection
RCA
6
NTSC/PAL
VGA/TV
Used to select the video input format
Used to select the video output format
DA-2
7 iEEE1394 External backup device connection
1394 Port
8 Ethernet
ADSL, cable modem, and Ethernet 10/100 Base-T
connection
RJ-45
9 RS-232C
Serial cable connection for system upgrades
& checking
D-SUB 9P
10 VGA
Connection for the VGA monitor
D-SUB 15P
11 TV
Connection for the CCTV monitor(divided screen)
BNC
12 SPOT
CCTV monitor connection to output image from the
channel generating an event signal (full screen)
BNC
13 AUDIO
OUT
Audio output connection (Line Only output)
RCA
