① Select {Alarm Out} {Spot} for the channel using the arrow keys and the Select
button.
② On the selection window, select the event type and decide whether to use the spot
function or not using the arrow keys and the Select button.
To set all channels at the same time, go to the top of the Spot column and press the
[Select] button.
(5) Relay
In case an alarm or an event occurs, all external alarm devices connected to the relay port will
be triggered.
① Select {Alarm Out} {Relay} for the channel using the arrow keys and the Select
button.
② On the selection window, select the event type and decide whether to use the Relay
function or not using the arrow keys and the Select button.
③ Select {Alarm Out} {Relay} {Relay Type} for the channel using the arrow keys
and the Menu button.
④ On the selection window, select the relay type using the arrow keys and the Select
button.
To set all channels at the same time, go to the top of the {Relay} column and press the
[Select] button.
5-1-6 Recording Schedule
{Recording Schedule} is used to save the system configuration as data from Data 1 to Data 4
and to make a recording based on the system configuration for each day/time zone.

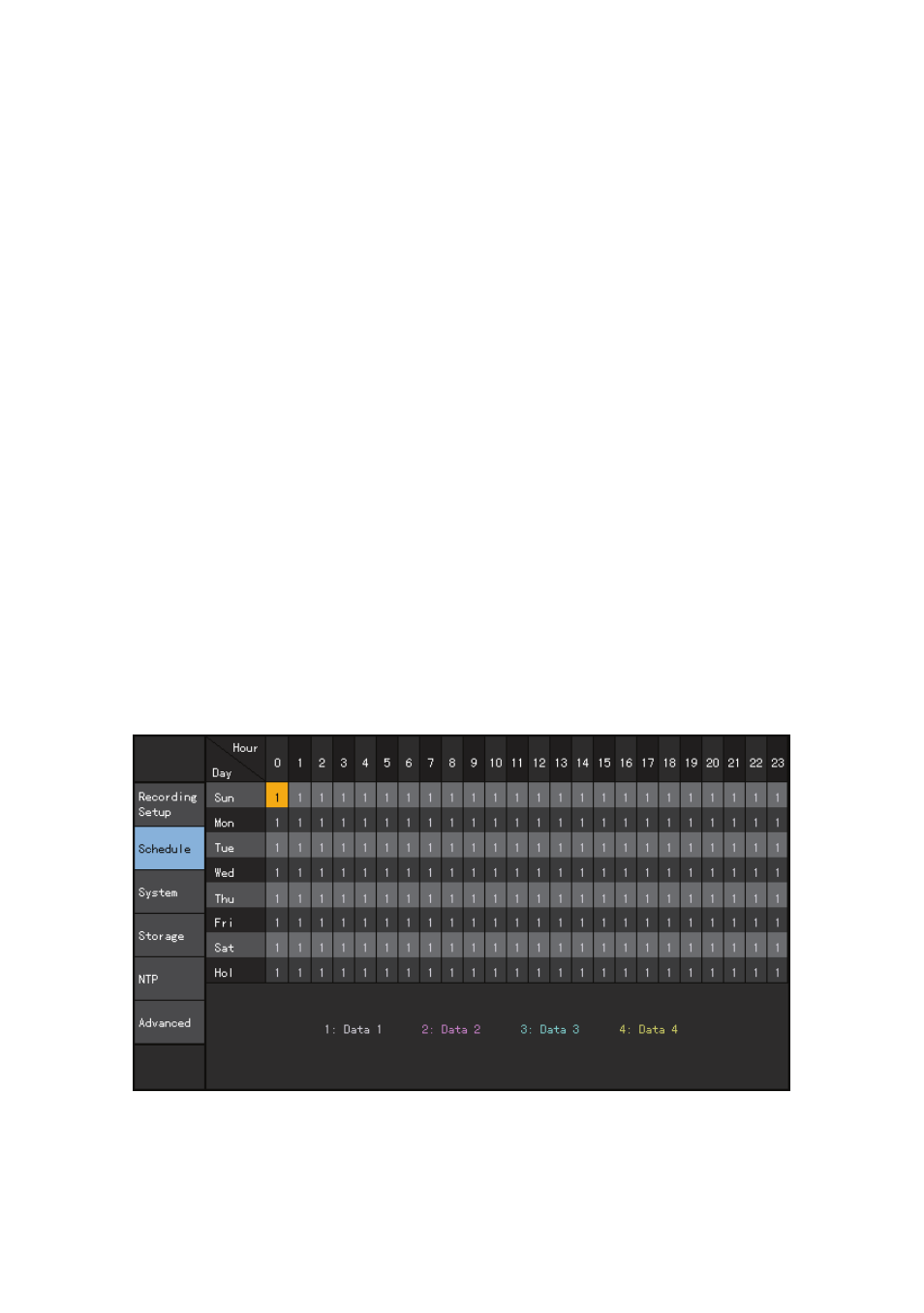

[Figure 5-5. Recording Schedule Window]
