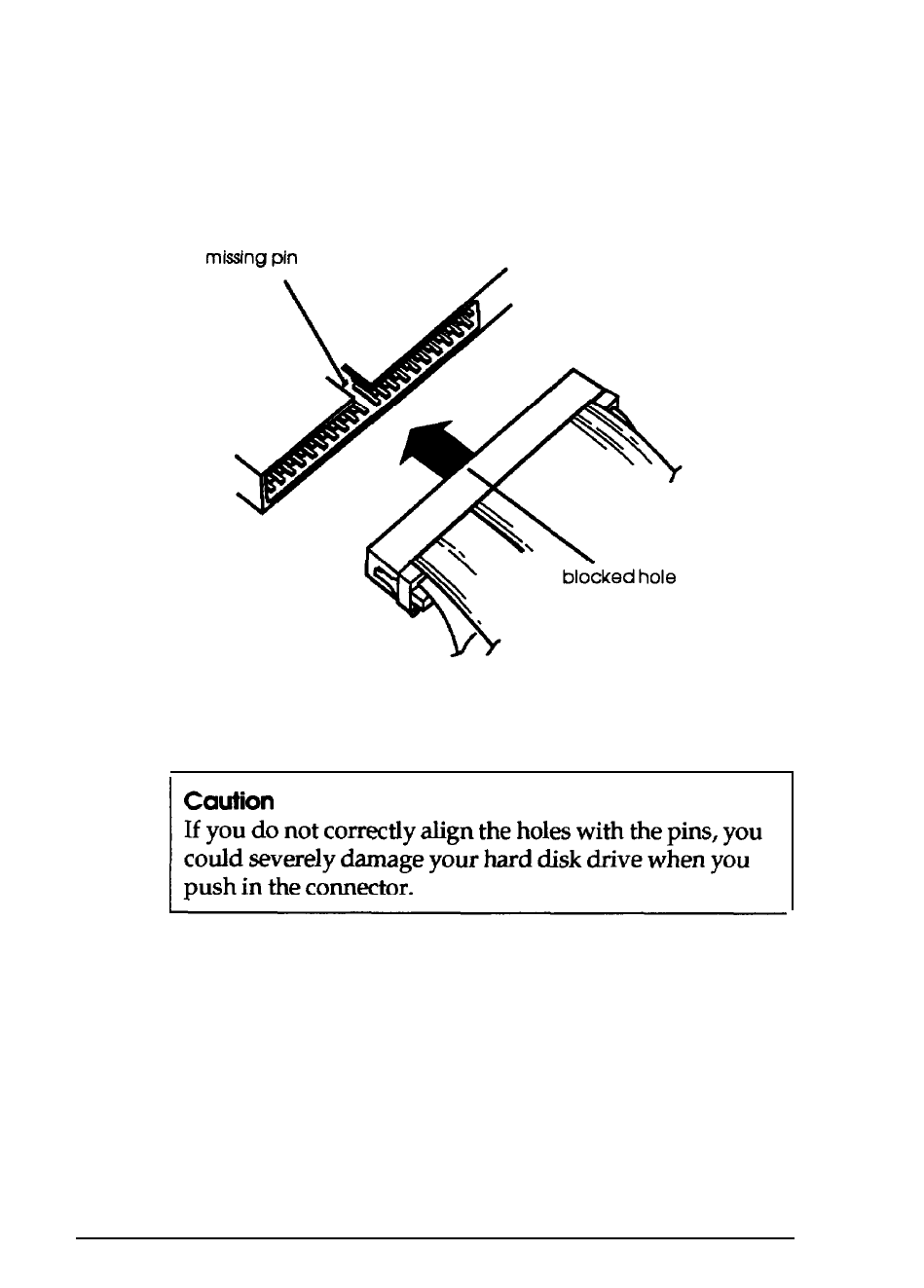

3. Align the connector with the socket so that the row in the

connector with the blocked hole lines up with the row in

the socket with the missing pin, as shown below.

Make sure the holes fit over all the pins and then push in the

Connector.

4. Locate one of the power supply cables that lead

from

the

power supply (behind the horizontal drive bays). The

cables are labelled P1, P2, and P3; you can use any one.

5-14

installing and Removing Drives
