M o u n t i n g t h e I n v e r t e r
Page 18 Operating Instructions Powador 16.0 TR3, 18.0 TR3_EN
Authorised electrician
Decke
Boden

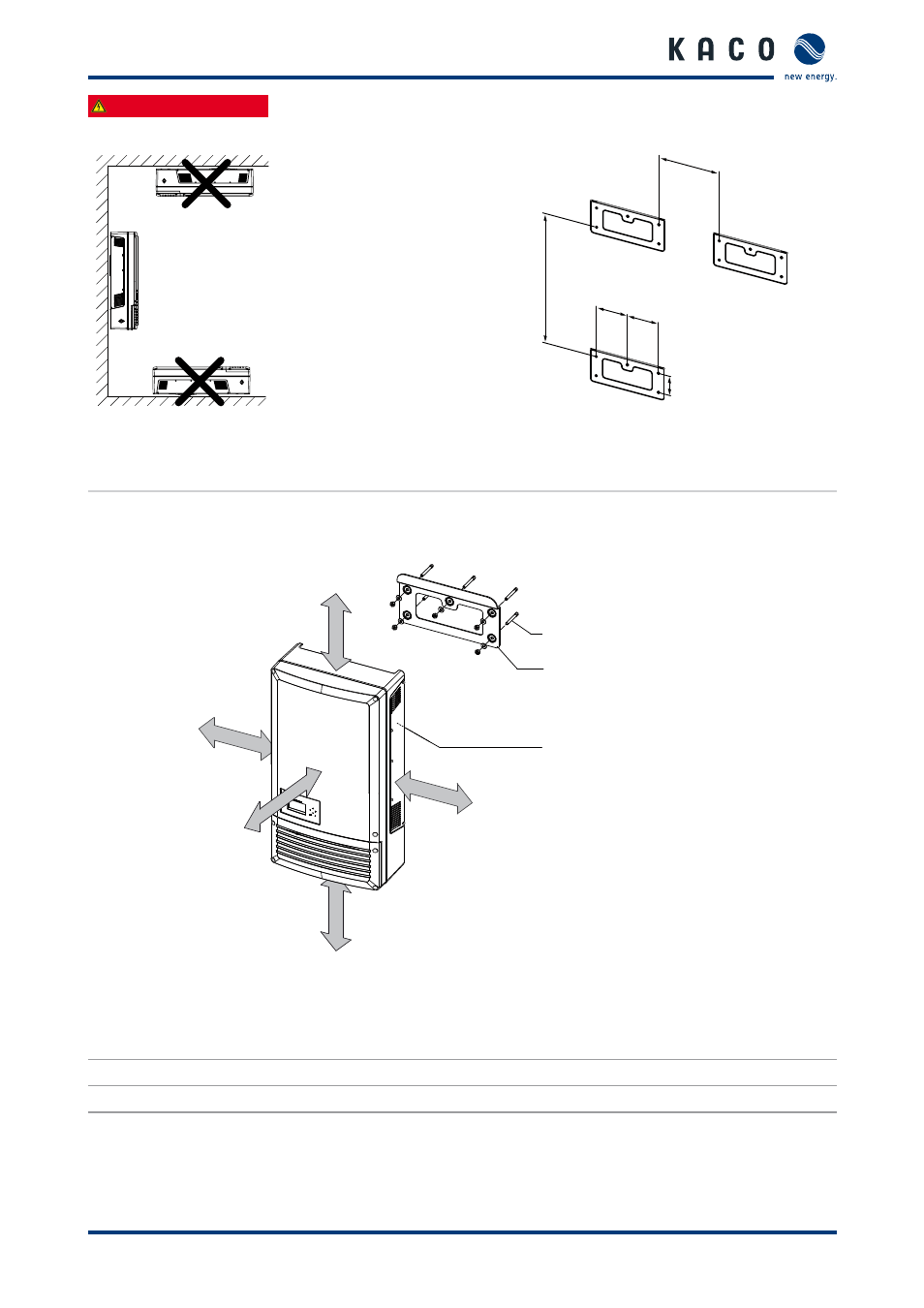

Fig. 4: Instructions for wall mounting Fig. 5: Drill stencil for wall mounting with minimum
clearances (in mm)
Fig. 6: Minimum clearances/mounting plate
Key
1 Suspension brackets (back of housing) 3 Anchoring bolts
2 Mounting plate
1526
620
195
120
195
500mm
500mm
500mm
Abstand zur Decke: 500mm
Abstand zu einem weiteren Wechselrichter: 700mm
Abstand zum Boden: 500mm
Abstand zu einem weiteren Wechselrichter: 700mm
1
2
3
Ceilling
Floor
Clearance from ceiling: 500 mm
Clearance from another inverter: 700 mm
Clearance from ceiling: 500 mm
Clearance from another inverter: 700 mm
