Installation
Operating Instructions for KACO blueplanet 3.0-4.6 TL1 Page 23
Authorised electrician
7.4.3 Maximum generator power
The input power of the inverter is limited only by the maximum input current per input. This causes the maximum
input power to increase with the input voltage.
NOTE
The overall power of the unit continues to be limited. If one input is connected to more than P
max
per MPP tracker, the maximum input power of the second input is reduced.
DANGER
In the expected temperature range of the generator the values for the no-load-voltage and the short
circuit current must never exceed the values for U
ocmax
and I
scmax
in accordance with the technical
data. (See Tabelle 1 auf Seite )
7.4.4 Recommended standard connection
1
Tracker A
2
U
MPP
n
1
n
2
B
1
Tracker A
2
U
MPP
n
1
B

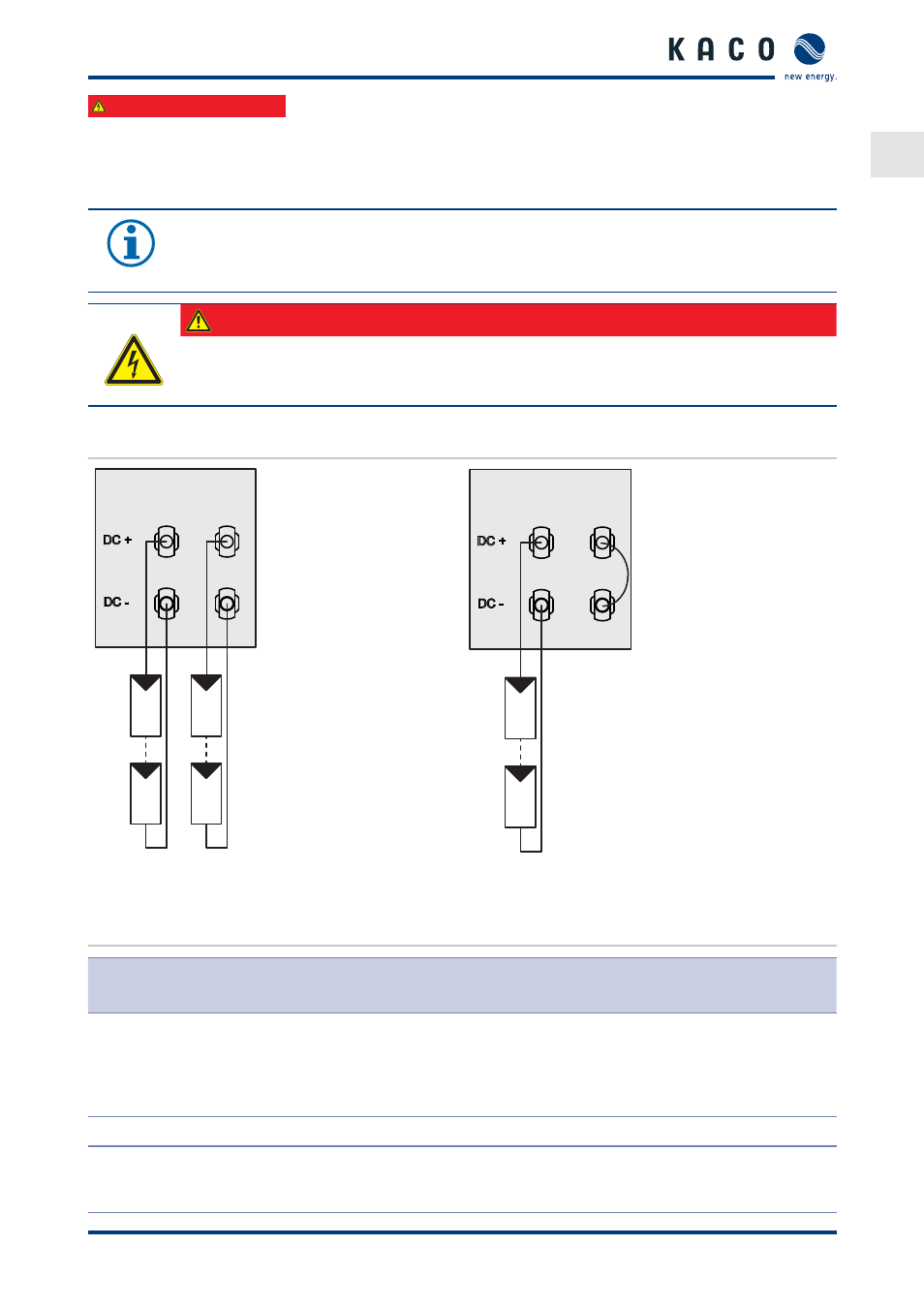

Figure 24: Two generators each on one MPP tracker Figure 25: One generator on 1st tracker, second tracker
deactivated
1.) Two generators each on one MPP tracker 2.) One generator parallel on one tracker, 2nd
tracker deactivated
The MPP voltages of the two DC lines can be diff erent.
They are tracked by separate, independently operating
MPP trackers (MPP trackers A and B).
If one of the MPP trackers (A or B) is not used, then it must
be short-circuited, otherwise faults can occur during the
self-test of the unit and the feed-in operation is not guar-
anteed. The short-circuiting of an MPP tracker does not
result in the device being damaged.
Electrical data
I
max
Depending on PV generator.
The input current per tracker must not be exceed
11A.
< 2 * max. rated current (DC)
