Mounting
Operating Instructions for KACO blueplanet 3.0-4.6 TL1 Page 17
6.2 Mounting
150mm
150mm
250mm
500 mm
700 mm
500 mm
700 mm
121 mm
497 mm
242 mm
5
6
3 mm
15 mm
1
3
2
4

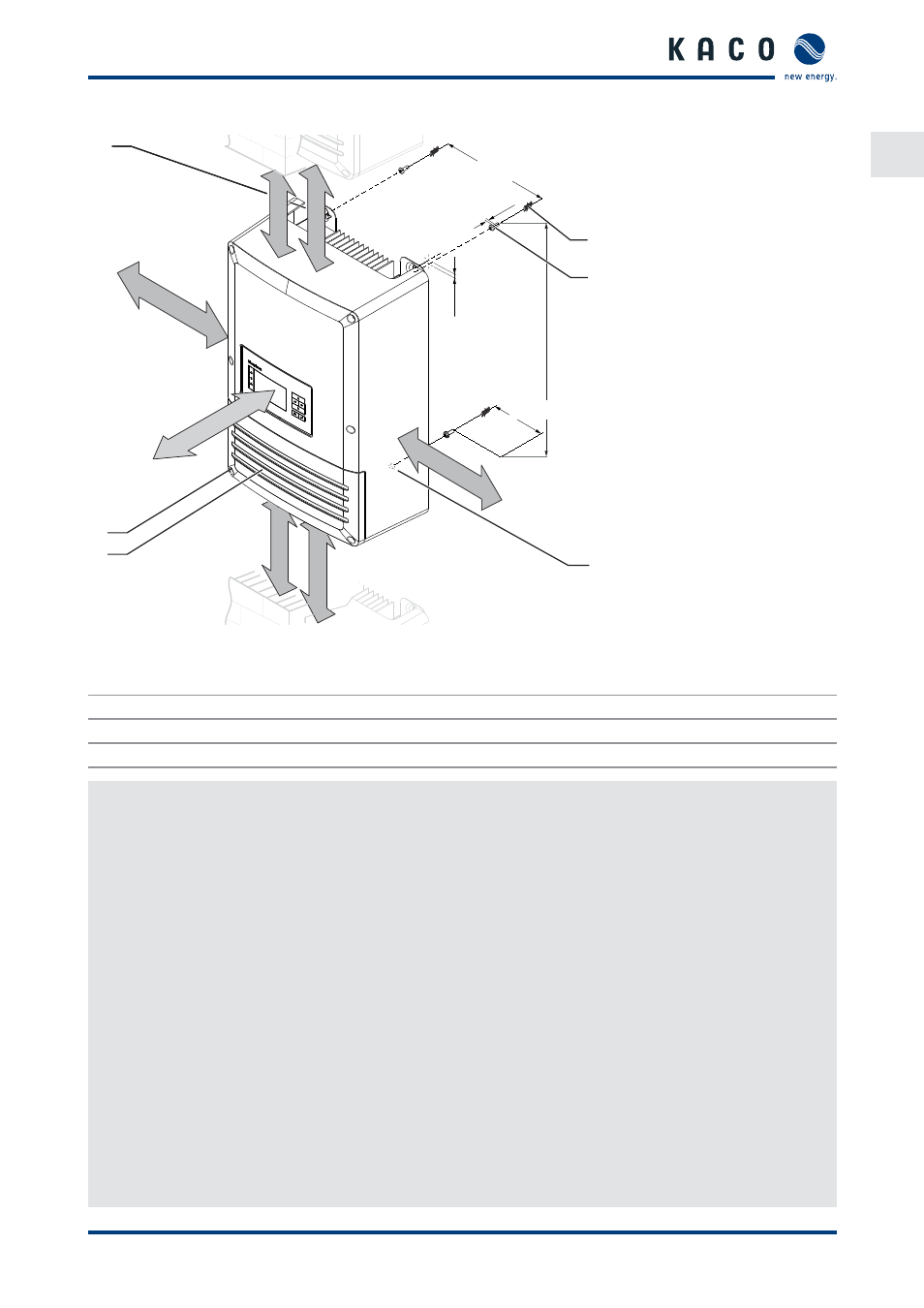

Figure 8: Minimum distances/mounting of inverter
Key
1 Cover for the connection area 4 Nozzle (x3)
2 Screws for mounting (x2) (2x Torx) 5 Screws for mounting (x3)
3 Suspension brackets 6 Hole for securing the inverter
Mounting the inverter
1. Mark the position of the upper boreholes on the wall in accordance with the dimensions in Fig. 8 or using the
suspension brackets on the back of the housing.
NOTE: Observe the minimum clearances between inverters (700 mm), or the inverter and the ceiling/fl oor (500
mm) as well as the side clearances (150 mm and 250 mm).
2. Fit wall plugs.
3. Screw in the top screws for assembly in accordance at the specifi ed distance (3 mm) from the wall.
4. Suspend the inverters on the suspension brackets from the screws.
5. Unscrew and remove the fi xing screws from the cover of the connection area.
6. Lower the cover of the connection area.
7. Variant 1: Mark the position of the bottom hole.
8. Remove the inverter and fi t wall plug to secure the inverter.
9. Fit the inverters back onto the top screws and fasten to the wall using the bottom screw.
10. variant 2. Remove the slider. (See Figure 11 on page 18)
11. Drill hole according to dowel size and mount on the wall by fastening screw.
12. Insert slider.
13. Fit the cover onto the housing.
14. Screw in the screws to fasten the cover.
» The mounting of the inverter is complete. Continue with the installation.
