KACO blueplanet 3.0 - 4.6 TL1 - Manual (Page 19)

EN
Installation
Operating Instructions for KACO blueplanet 3.0-4.6 TL1 Page 19
Authorised electrician
3 1 2 4
0,47 In
(12mm)
1,97 In
(50mm)
0,31 In
(8mm)
5
L3
L2
N
PE
L1
L3
L2
N
PE
L1
4
3-phase
connection
1-phase
connection

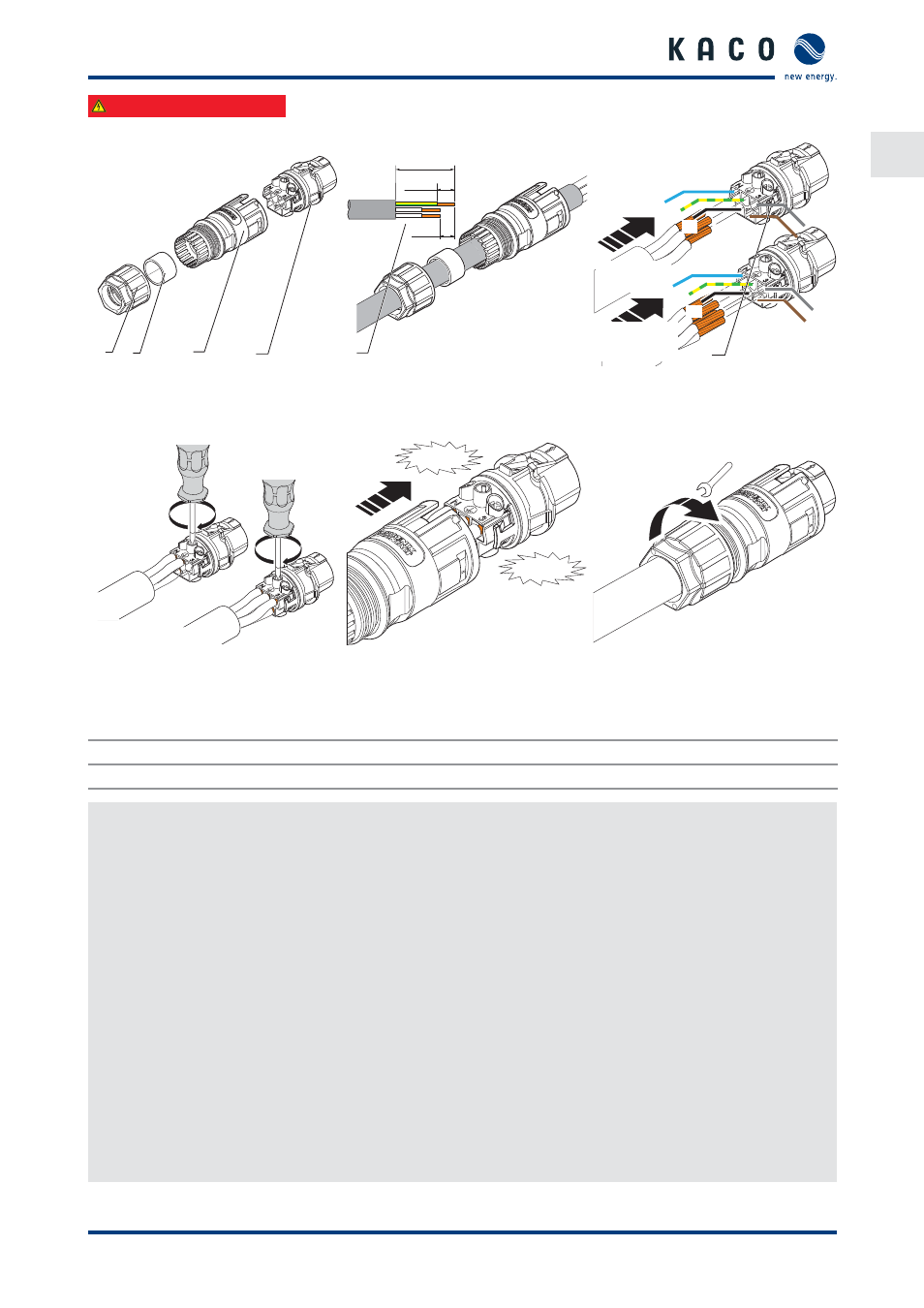

Figure 12: AC connector Figure 13: Remove cable insulation Figure 14: Connect wires to the contact
carrier
1 Nm
1 Nm
3-phase con-
nection
1-phase con-
nection
CLICK !
CLICK !
30
6,5 Nm
Figure 15: Tighten screws Figure 16: Press contact carrier into the
housing
Figure 17: Tighten the cable screw
fi tting
Key
1 cable fi tting 3 Housing 5 Cable lengths
2 Seal 4 Contact plug
Confi guring the AC connector
↻ Connection area opened.
1.
Slide the cable fi tting over the cable.
2. Select seal according to cable diameter used (8 ... 12 mm/ 12 ... 16 mm/ 16 ... 21 mm).
3. Slide the housing and seal over the cable.
4. Remove 50 mm of the outer cladding.
5. Shorten the wires N, L1 by 8 mm if a single-phase connection is present or shorten the wires N, L1, L2, L3 by the
same length in case of a 3-phase connection.
6. Strip the wires N, L1 by 12 mm if a single-phase connection is present or shorten the wires N, L1, L2, L3 by the
same length in case of a 3-phase connection.
7. Flexible wires must be fi tted with wire sleeves in accordance with DIN 46228.
8. Insert wires into the contacts in accordance with the markings on the contact carrier.
9. Tighten the screws on the contact carrier with 1 Nm.
10. Press contact carriers into the housing with an audible "click".
11. Secure the housing with a screwdriver (size 30).
Tighten the cable fi tting using a torque of 6.5 Nm.
» Make the electrical connections.
