SMA Solar Technology AG

Electrical Connection

Installation Manual

SMC70HV11-IA-IEN112970

33

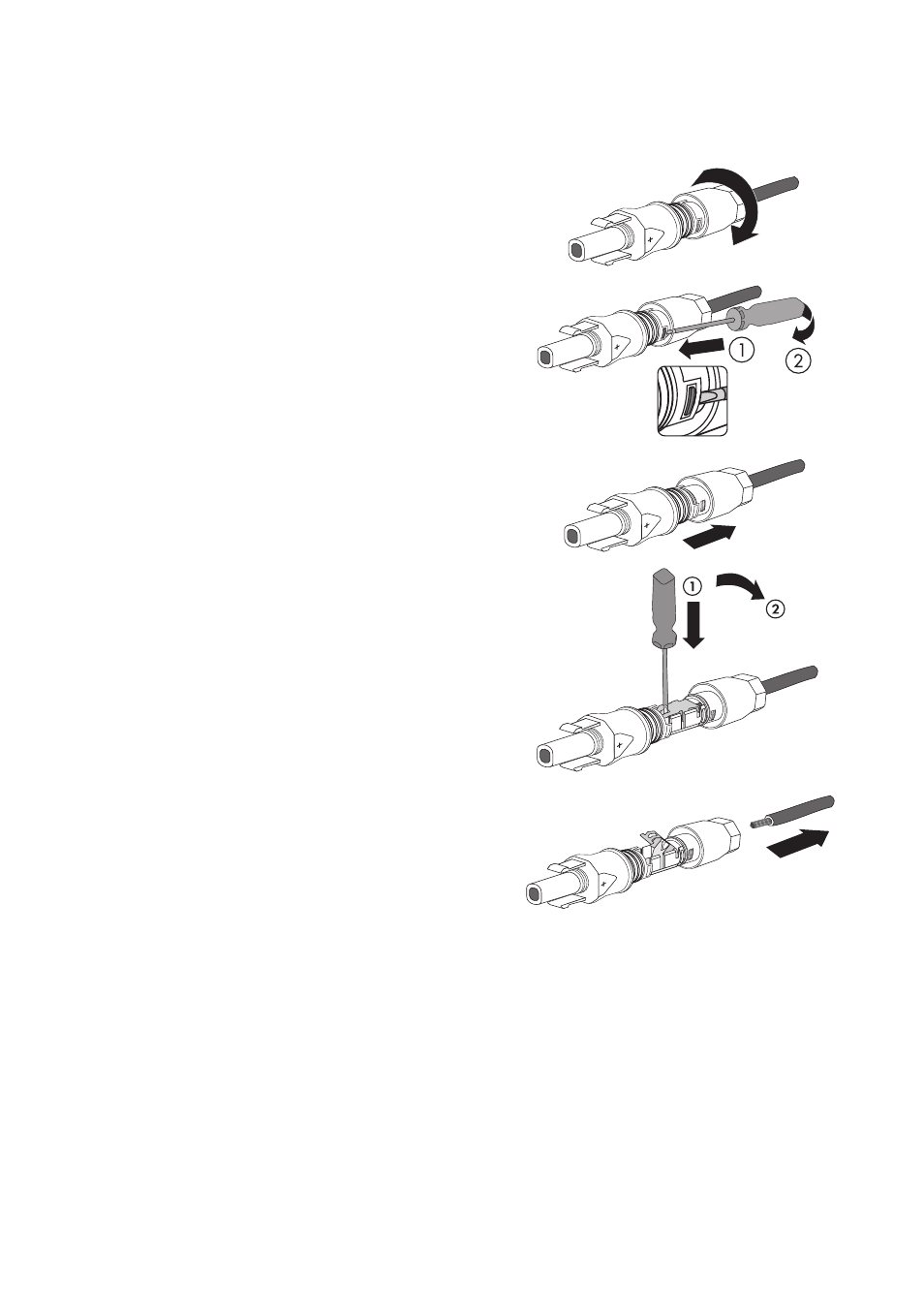

5.4.3 Opening the DC Connector

1. Unscrew the screw connection.

2. Unlocking the DC connector: Insert a 3.5 mm

screwdriver into the snap slot on the side and lever
it out.

3. Carefully pull the DC connector apart.

4. Loosen the clamping clip. To do so, insert a 3.5 mm

screwdriver into the terminal clamp and lever it out.

5. Remove the cable.

☑ The cable is now removed from the DC connector.
