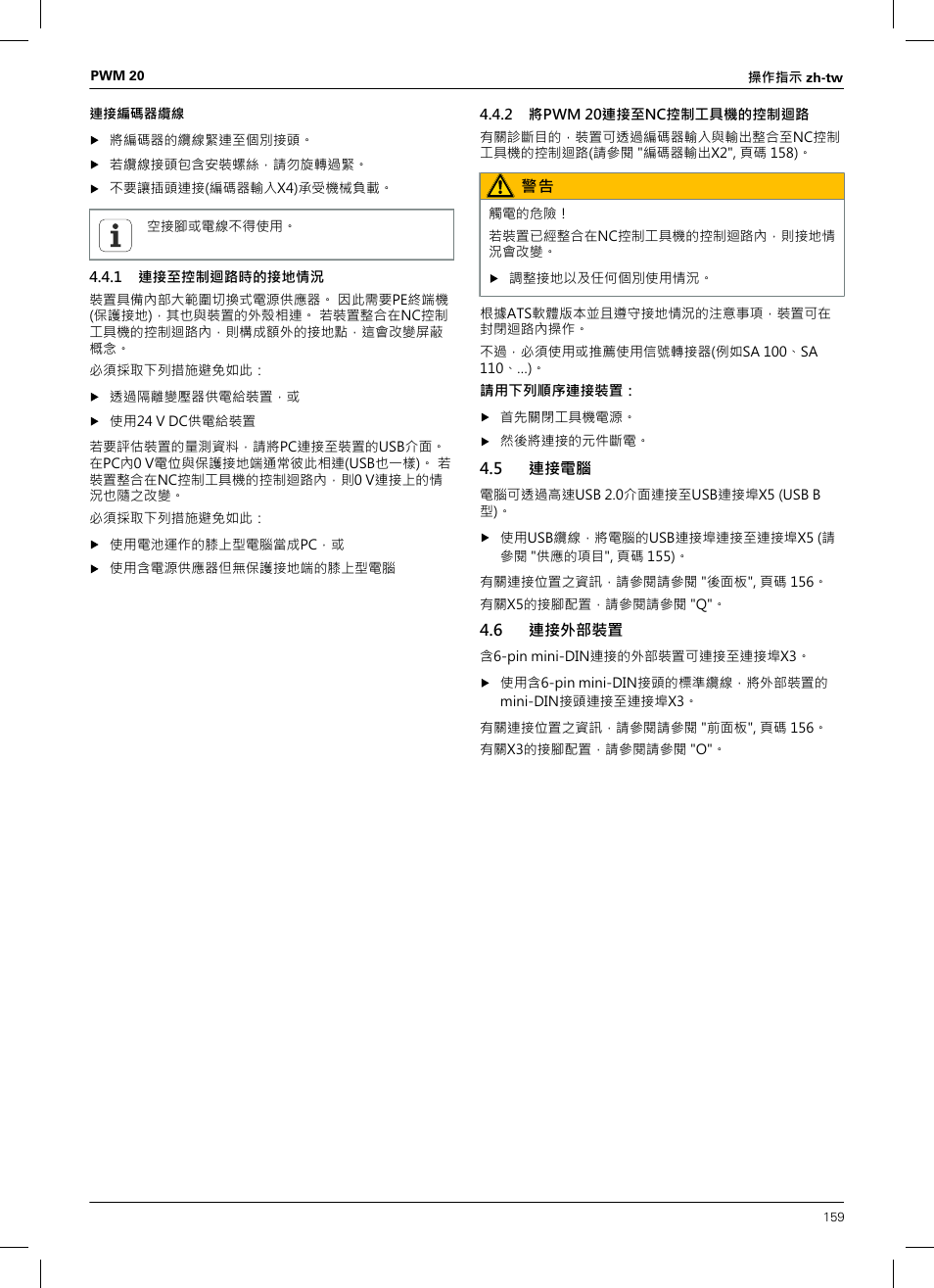

1 連接至控制迴路時的接地情況, 2 將pwm 20連接至nc控制工具機的控制迴路, 5 連接電腦 – HEIDENHAIN PWM 20 User Manual
Page 157: 6 連接外部裝置
