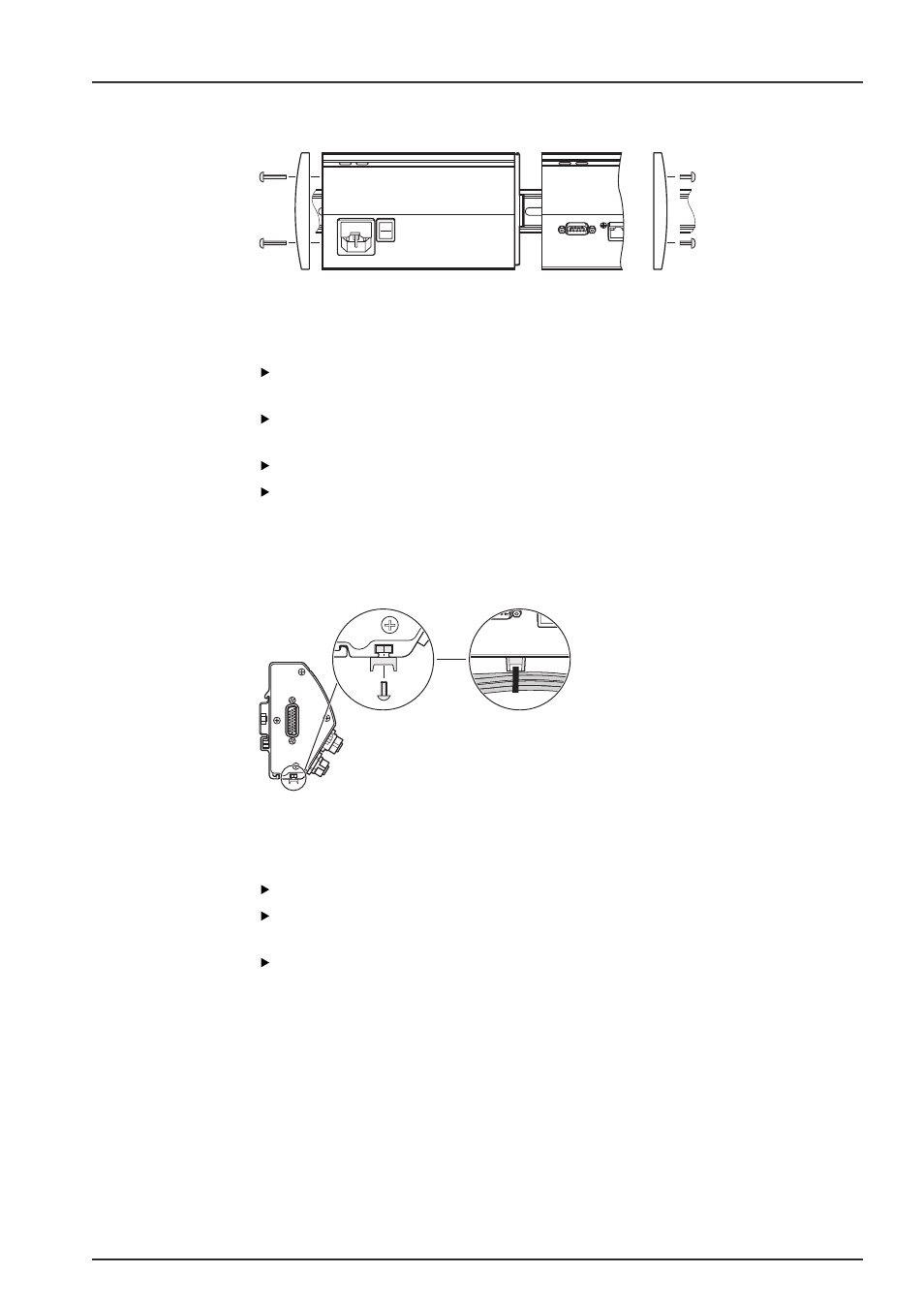

4.3 Installing end covers
Left and right end cover kits are provided with each power supply module for covering
open module ends.
Install end covers To install end covers:
Insert the left end cover into the left side of the first power supply module in the
chain.
Insert 19 mm end cover screws through the end cover mounting holes and into the
end cover screw holes
34 on the module.
Using a cross-head screwdriver, tighten the screws.
Install the right end cover onto the right side of the last module in the chain using
the provided 9 mm screws and following the instructions given above.
4.4 Installing cable mounting hardware
A cable mounting hardware kit is provided with each module for routing cables. Each kit
contains two sets of mounting hardware.
Install cable mounting
hardware To install cable mounting hardware:
Insert the M3 hex nut into the cable mounting slot 36 on the bottom of the module.
Insert the M3 screw through the cable tie holder and fasten to the M3 hex nut
using a cross-head screwdriver.
Insert the cable tie through the cable tie holder and fasten cables.
