Mounting
Operating Instructions 17
MSE 1000 modules are designed to be mounted on a standard 35 mm, DIN EN 50022
rail in an electrical cabinet or on a mounting stand (accessory). The individual modules
are plugged into each other and fixed together with a lock creating a module chain.
     

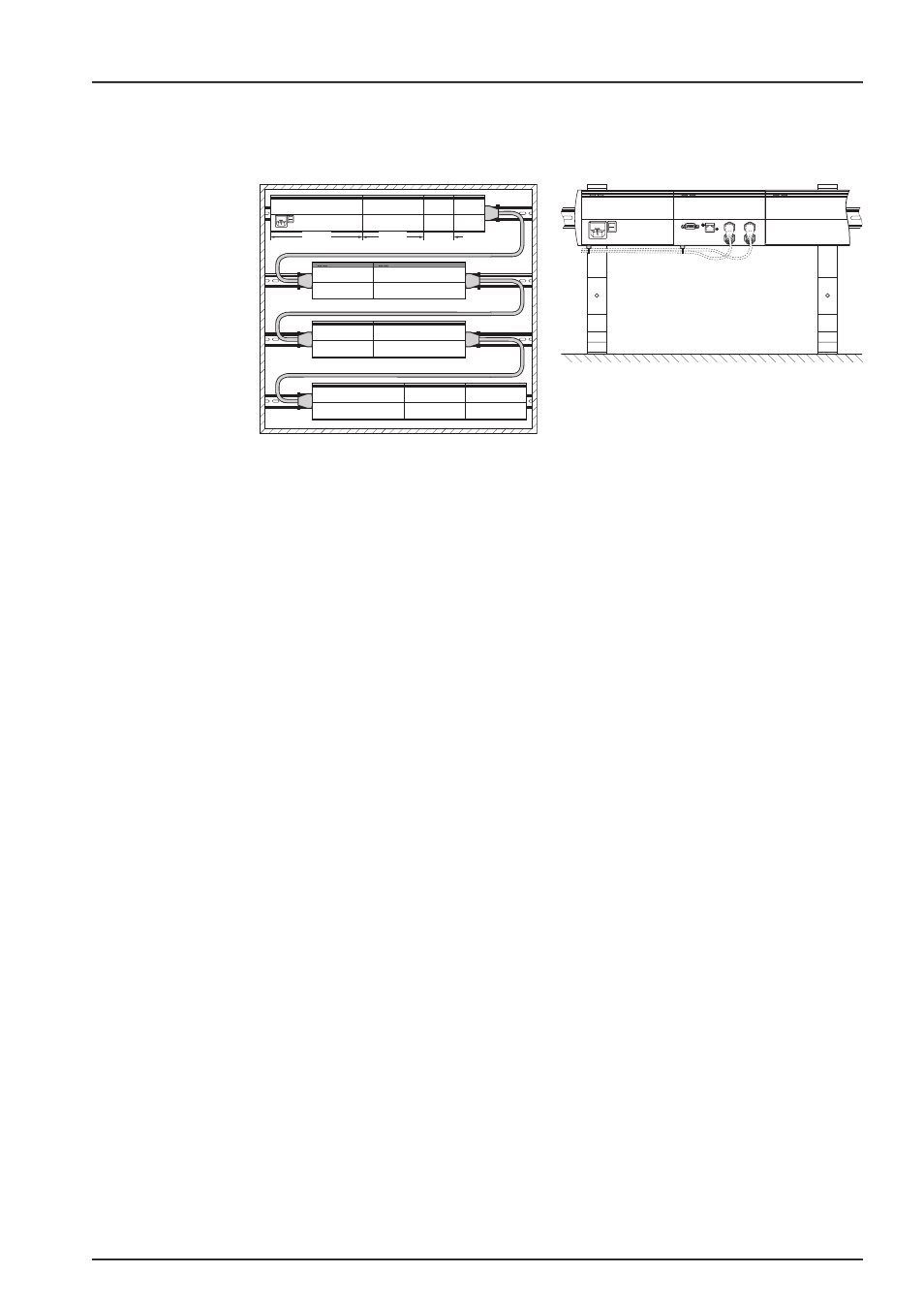

19" mounting cabinet
Mounting stand
In its basic configuration, the MSE 1000 consists of a power supply module and a base
module. It can be expanded by further modules as needed. In all, up to 250 axes or
channels can be configured.
Multiple power supply modules may be needed based on the power consumption
of the modules following the power supply in the module chain and any equipment
connected to those modules. When the maximum power rating of a power supply
module is reached it is necessary to install another power supply module into the
module chain. Refer to "Technical specifications", page 157 for maximum power
consumption rating of power supply modules.
