2-7

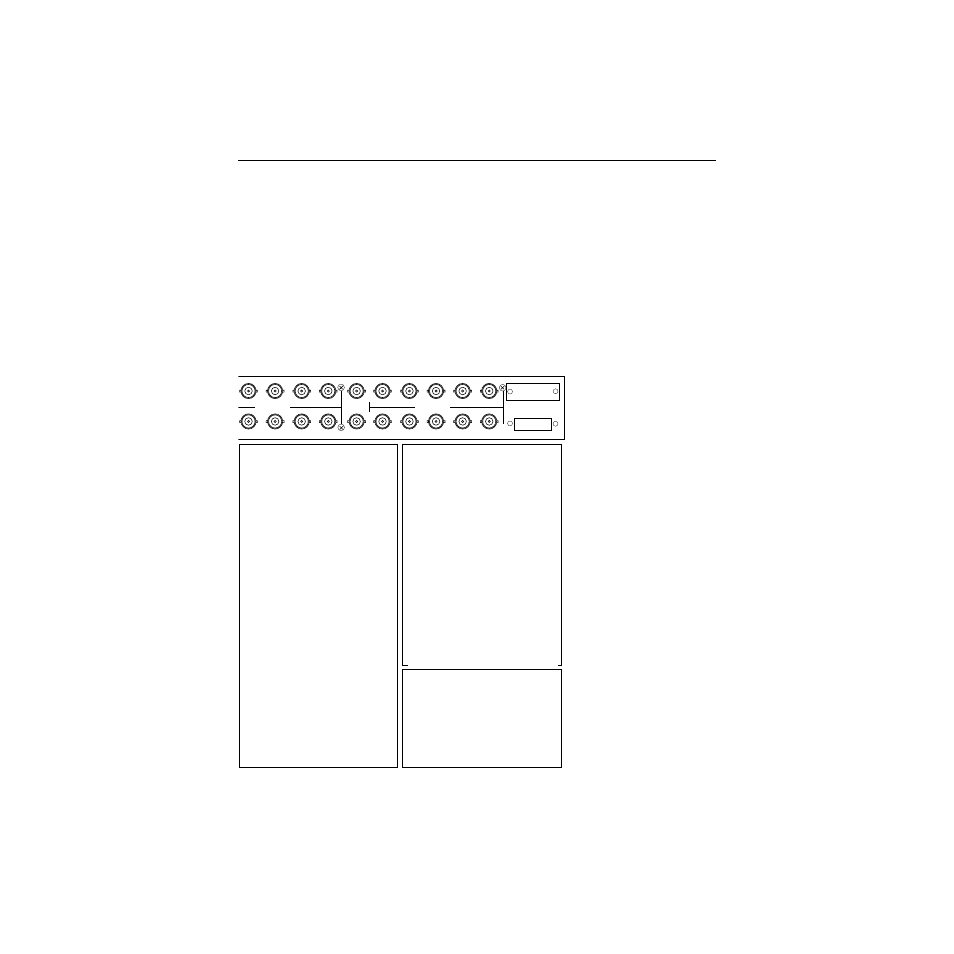

Installation Overview
Video IN (1-10)
1. Using 75-ohm coaxial cable,
connect your number 1 video
source to Video IN 1 BNC.
2. Connect additional video
sources to V2 through V10
just as you did for V1.
3. Unused inputs must be
terminated with a 75-ohm
load for proper operation.
NOTE
Video sources should be
1V p-p optimum, and must
not exceed 2V p-p. For
AUTO mode, inputs will be
automatically equalized to
270MHz for up to 225m of
BELDEN 8281 cable. For
DIRECT mode, cable length
is dependent on serial
standard and receiving
equipment.
Video Out (V OUT 1 and 2)
Single video output has two
points of connection.
1. Using 75-ohm coaxial cable,
connect the V OUT 1 or
V OUT 2 BNC to the equip-
ment you are feeding.
2. Connect the unused V OUT
BNC in step 1 to additional
equipment or to a video
monitor as necessary.
3.The output cable must be
terminated with a 75-0hm
load for proper operation.
OPTION and REMOTE
Information is located in the
Common Configurations and
Installation Reference sub-
sections of this Installation
section.
utput
(–) (s)
V OUT AUDIO 1 IN VIDEO IN
OPTION
REMOTE
7 1 3 5
8 2 4 6
7 9 1 1 3 5
8 10 2 2 4 6
