2-75
Control Panel Reference
TEN–20 Panel Switch Settings
The 10 BPS, MBCP, XYCP, and SERIM control devices all have
switches which allow user configuration.
BPS and MBCP Panels Switch Settings

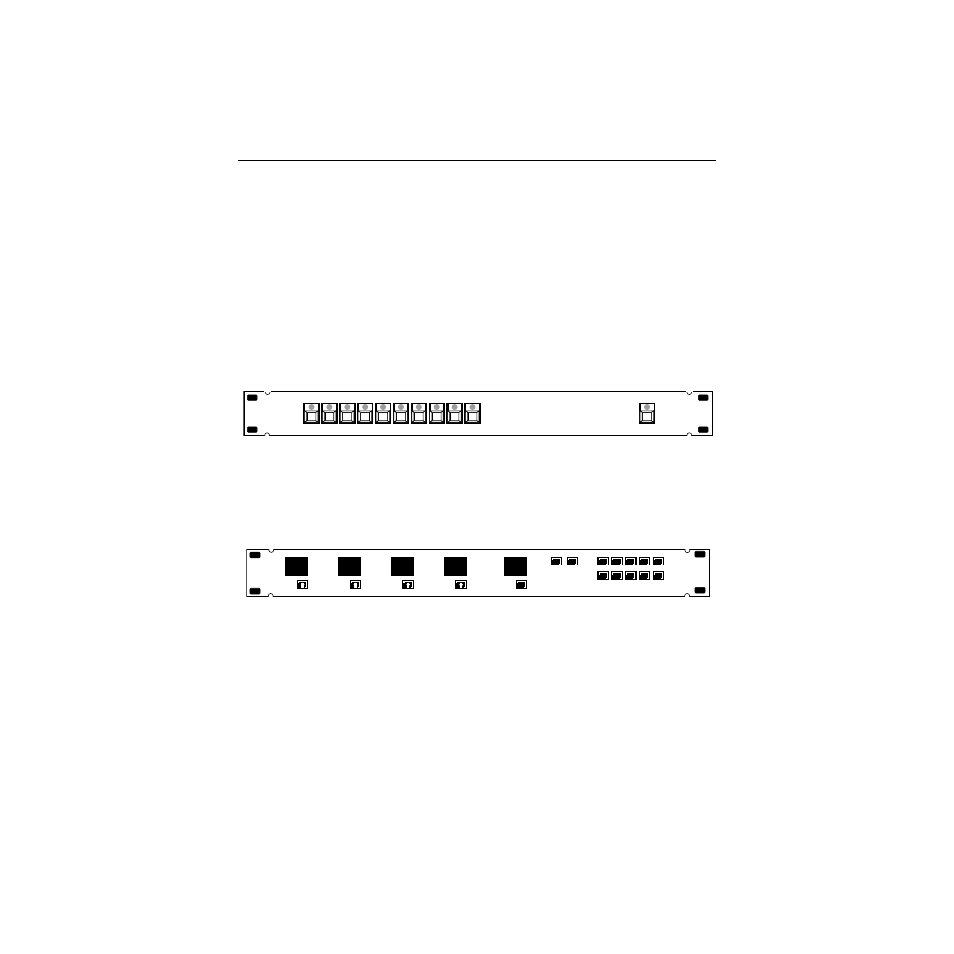

The 10 BPS (Button Per Source) panel has a number of source
selection buttons equal to the number of sources it is able to select
for the controlled destination. The 10BPS controls 10 sources. The
panel has switches on its rear connector channel which determine
levels controlled, level tallied, panel address (number), and
destination (of control) address.
The MBCP (Multibus Control Panel) allows you to make a source
selection from preassigned control levels to any of four
destinations (routing switchers).
1 2 3 4 5 6 7 8 9 10 PROTECT
GRASS VALLEY GROUP
PROTECT 0 1 2 3 4
5 6 7 8 9
CLEAR TAKE TAKE TAKE TAKE
DEST D DEST C DEST B DEST A ID
GRASS VALLEY GROUP
