210 Maestro Channel Branding User Guide
Section 5 — The Maestro Configuration Editor
9th Step: General
The 9th Step: General has the following steps:
• Channel Server
• GUI Configuration
These steps are explained in detail below.
Channel Server
“Channel server” refers to the CP Panel Server board and/or the PCI Panel
Server board. The CP Panel Server board is contained within the hardware
control panel; the PCI Panel Server may or not be present.

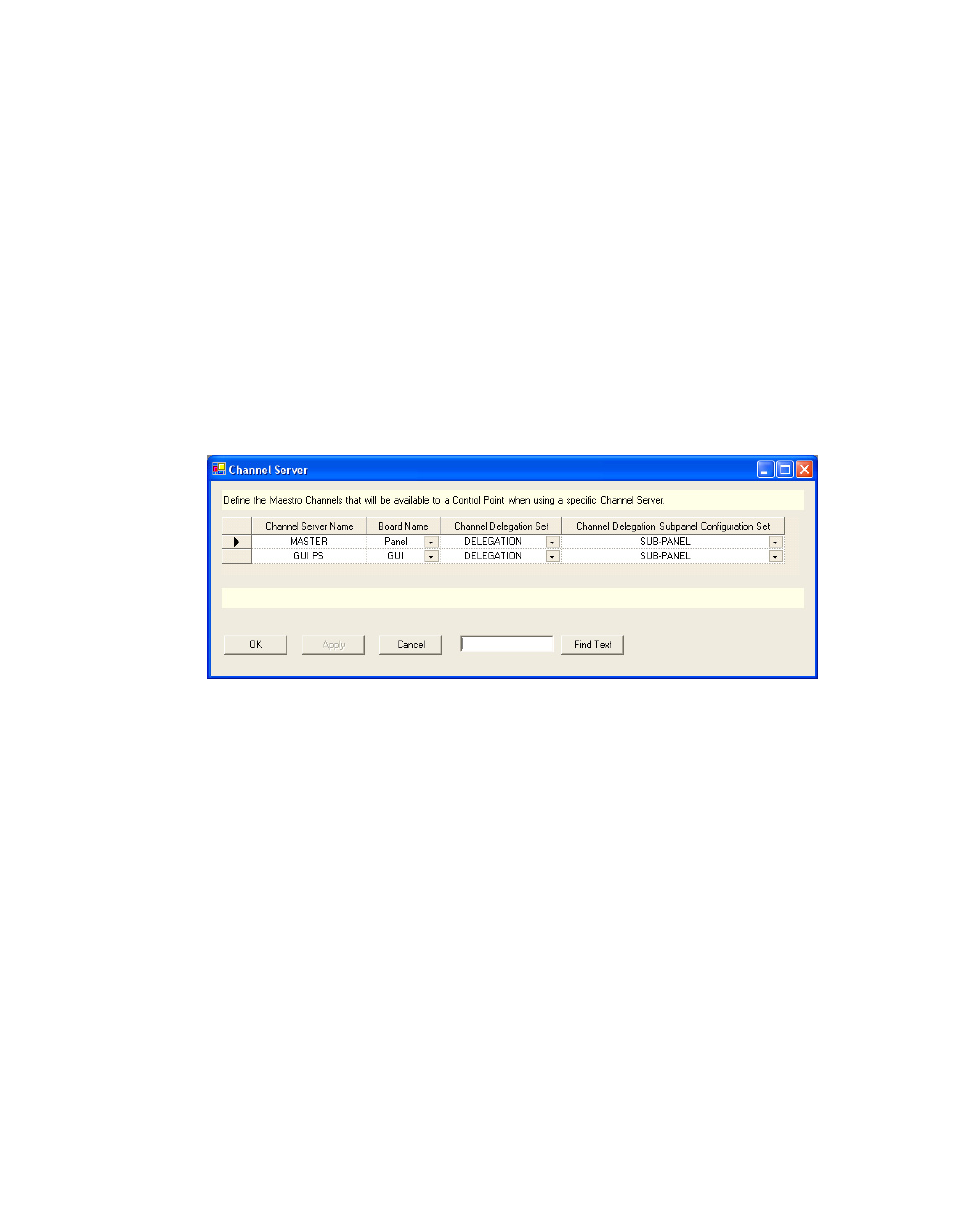

Figure 162. Channel Server Table (Example)
Channel Server Name
Create a Channel Server Name.
This is the source of the name that appears on the GUI Configuration table
(
page 211 ).
Board Name
Select a previously defined control panel from the Network Description
table (
page 112 ).
If there is no hardware control panel, this will be the name of the PCI Panel
Server board.
Channel Delegation Set
Select a previously defined Channel Delegation set ( page 207 ).
