Section 5 — The Maestro Configuration Editor
7th Step: Effects Configuration
The 7th Step: Effects Configuration:
• Wipe Transitions
• DVE Configuration
• Automation DVE Association
• Transition Configuration
• Transition Associations
• VBI Passthrough
Each of these steps is described below.
Wipe Transitions
When a wipe effect is enabled, the standard video transitions (That is, fade-
cut, cut-fade, V-fade, and cross-fade) are superseded.
The Wipe Transition table is assigned to a channel using the Channel Setup
table. In most cases, the same Wipe table (set) will be assigned to each
channel.
When Wipe Transitions is selected, the editor will open a set panel. After
naming the table, select “New.” The system will display a table similar to
that shown in
Figure 135 .

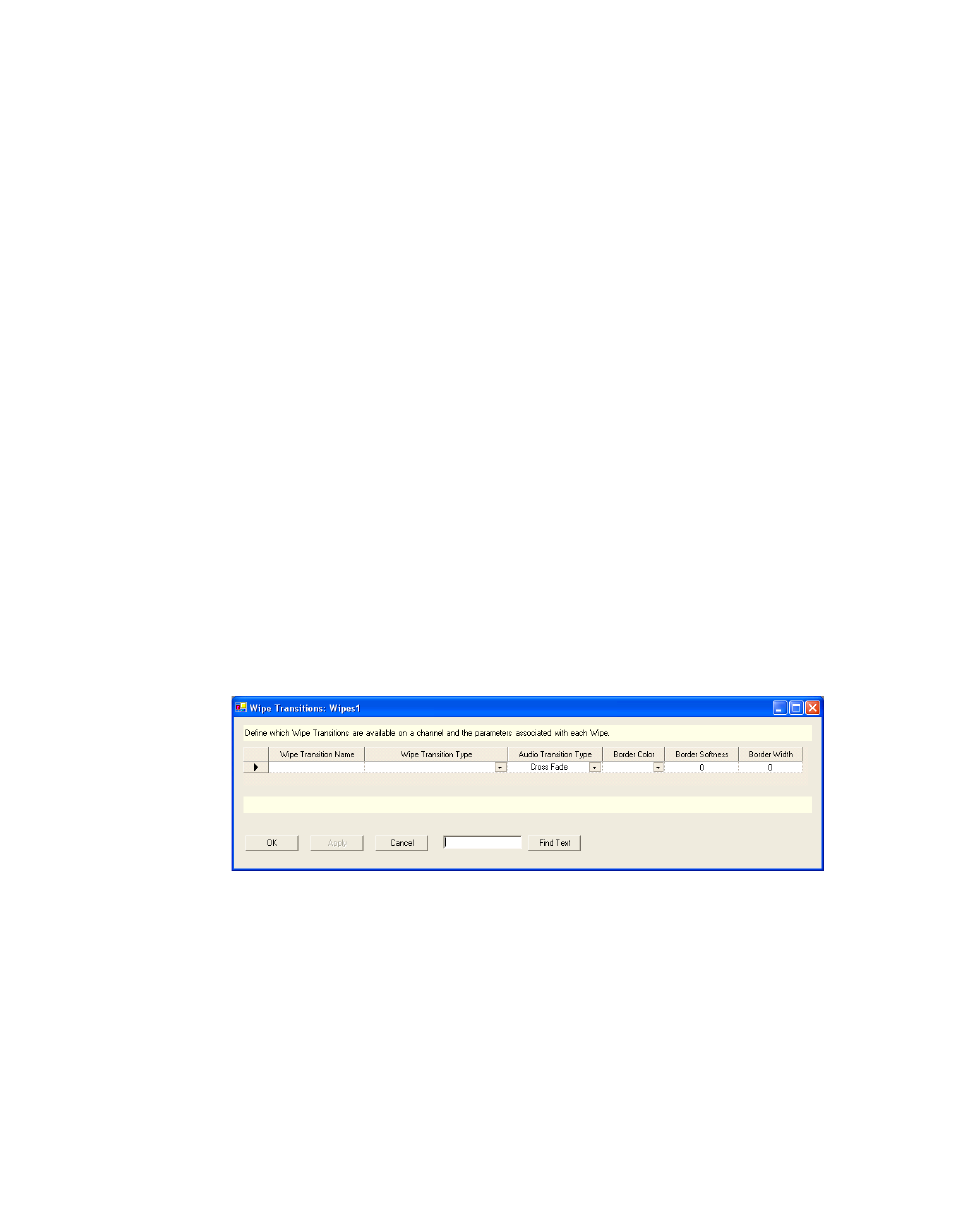

Figure 135. Wipe Transitions Table
Wipe Transition Name
Enter or select a name for this wipe transition. The name should be similar
to the wipe transition type selected in the next step as a suggestion.
Wipe Transition Type
Select a Wipe transition from the drop-down list. Choices are shown in
Figure 136 .
