170 Maestro Channel Branding User Guide
Section 5 — The Maestro Configuration Editor

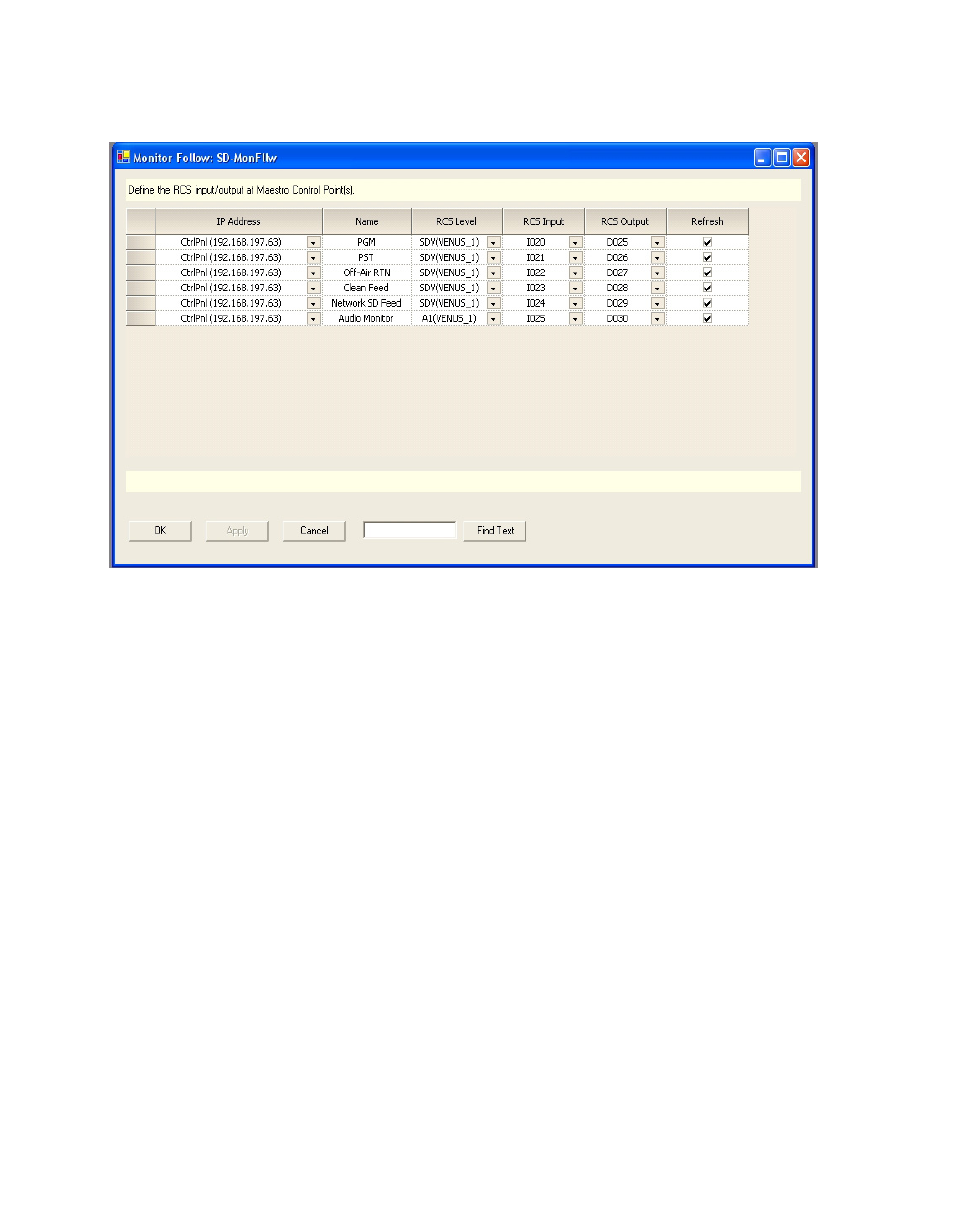

Figure 129. “SD” Channel Monitor Follow Configuration
In Figure 129 sources defined as PGM, PST, Off-Air RTN, Clean Feed,
Network SD Feed and Audio Monitor are switched to the Master Control
room video and audio monitors when the channel “WXYZ-SD” is under
the control of the control panel at IP address 192.168.197.63. PGM, PST and
Clean Feed video as well as Audio Monitor are output from the SD Maestro
channel. Off-Air Return and SD Network Feeds are not Maestro outputs;
however they can be switched to the monitors whenever the “WXYZ-SD”
channel is the active channel on the control panel.
The first entry in SD-MonFllw table describes the following actions, phys-
ical connections and result (assuming this table is the assigned Monitor
Follow table for the channel “WXYZ-SD”):
• When the control panel with IP address 192.168.197.63 takes control of
the channel “WXYZ-SD” the router will automatically perform the
switches defined in this row.
• The PGM output on the Maestro rear panel for the channel “WXYZ-SD”
is wired to the router input labelled I020 on the SDV level.
• Input I020 is switched to output D025 (also on the SDV level) which is
wired to the PGM video monitor in the master control room.
• The video source currently active on the PGM bus of the Maestro
“WXYZ-SD” channel thus appears on the PGM monitor in the master
control room.
