37
Kaleido-Modular-X
Quick Start Guide

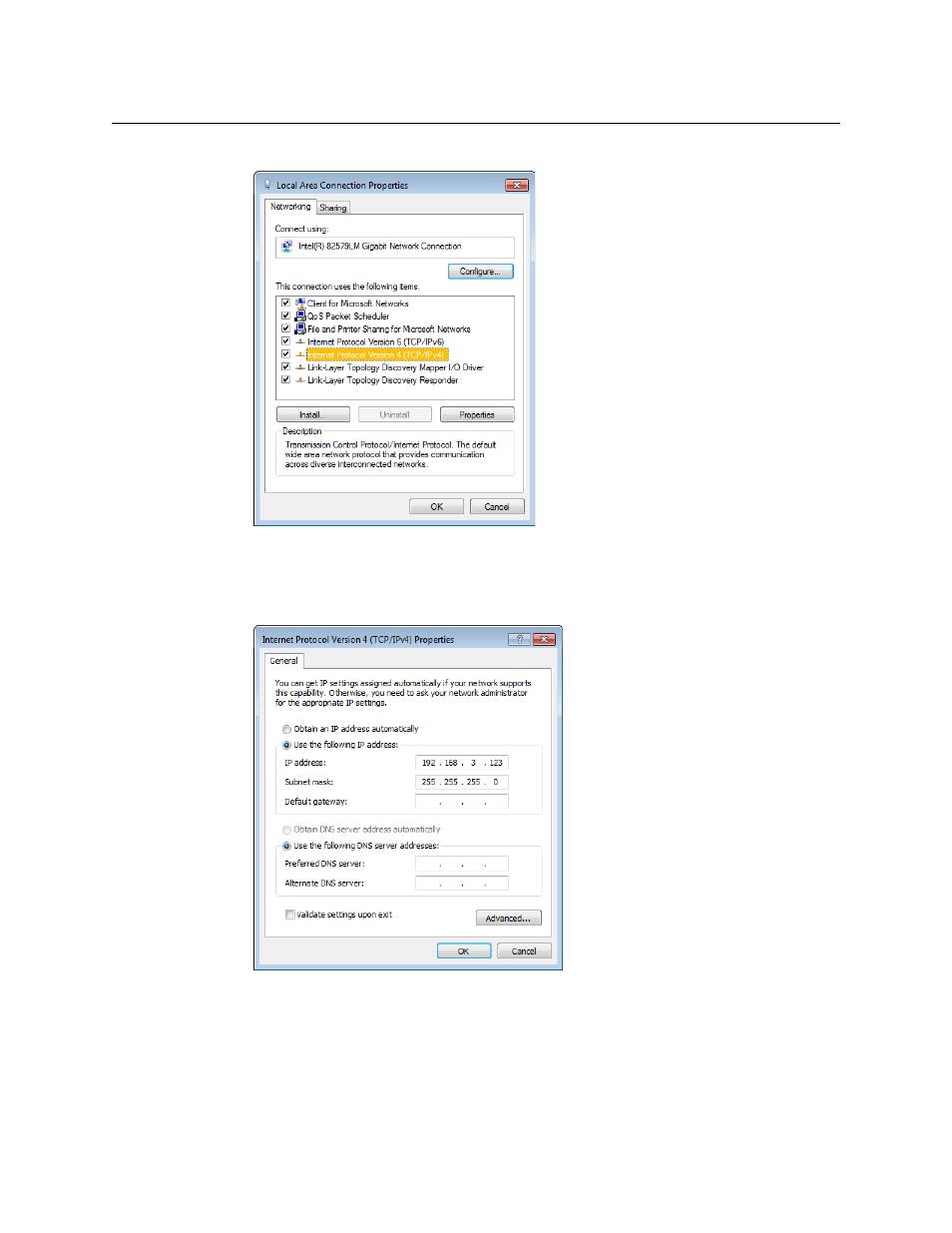

The Properties window for the selected network adapter opens.
4 On the Networking tab, under This connection uses the following items, click
Internet Protocol Version 4 (TCP/IPv4), and then click Properties.
The Internet Protocol Version 4 (TCP/IPv4) Properties window opens.
5 On the General tab, click Use the following IP address.
6 Type an IP address in the same range as the multiviewer’s current IP address.
For example, if the multiviewer’s IP address is 192.168.3.31, then the IP address of your
client PC could be 192.168.3.123. If you are unsure, contact your network administrator.
7 Type a subnet mask in the same range as that of the multiviewer.
8 Click OK.
9 In Local Area Connection Properties, click Close.
