Dashboard - Intuition XG’s Local Configuration Software
Device Profile page
The Device Profile page appears below Dashboard’s Device List when the S ETTINGS M ODE
is set to S IMPLE and a device is selected from the Device List (figure 5-5 ). The Device Profile
page provides a brief summary of some of the device and system’s settings that may be
relevant when operating or troubleshooting the system.

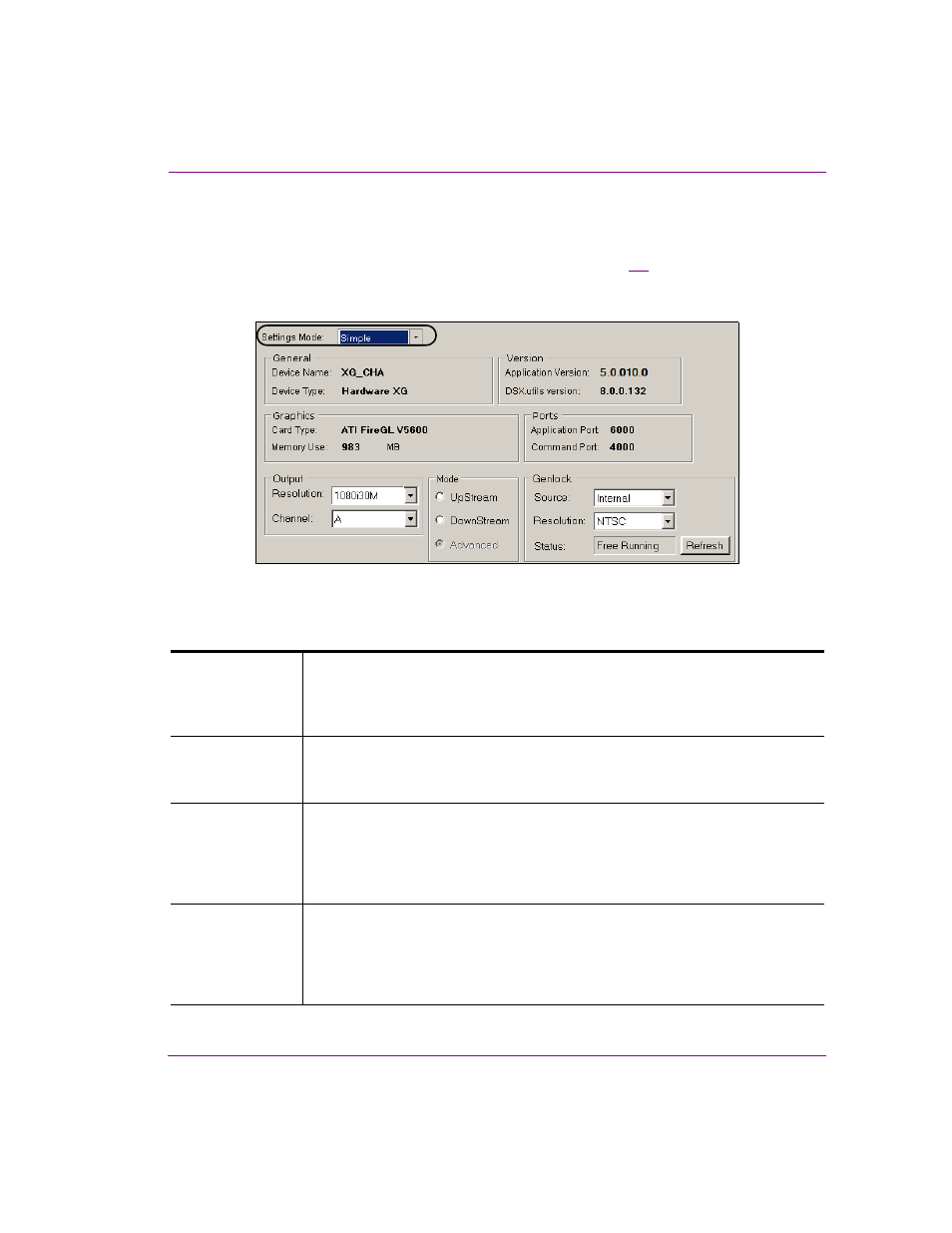

Figure 5-5. Dashboard’s Device Profile page
The following table describes each of the fields that are displayed on the Device Profile
page for Vertigo devices:
G ENERAL • D EVICE N AME : The name given by the last connecting application. Such as
Xplay or Xstudio.
• D EVICE T YPE : Displays the Vertigo device type, either H ARDWARE XG or
S OFTWARE CG.
V ERSION • A PPLICATION V ERSION : Displays the software version of Vertigo device.
• DSX. UTILS VERSION : Displays the version of the driver used inside the Vertigo
device.
G RAPHICS • C ARD T YPE : Identifies the type of graphics card used by the Vertigo device.
This information is useful when troubleshooting the Vertigo device as some
functionality might depend upon the type of graphics card used.
• M EMORY U SE : Displays the total amount of memory being used by the
graphics card, including host and onboard.
P ORTS • A PPLICATION P ORT : Displays the communication port used between the
Dashboard application and the selected Vertigo device.
• C OMMAND P ORT : The communications port used by the Vertigo device for
command and control by applications, such as Xstudio or Xplay. To edit this
setting, select the Display Settings Tab and edit the C
OMMAND P ORT field.
