Installing the Pulser Kit in Twin Units (Kits M06245K001 through M06245K003 and M06245K008)
Page 8
MDE-4506A Atlas™ Pulser Kits M06245K0XX Installation · May 2006
Installing the Drive Gear on the Meter Computer Shaft
In the kit, locate two 043225 pins, two 031035 hubs, two 027401 gears, and two K76238-41
retaining rings. See
1
On one of the computers, press a pin into the hole in the computer shaft until it is flush on one
side of the shaft. For kits M06245K001 through M06245K003, press the pin into the hole in
the computer quantity shaft. For M06245K008, press the pin into the hole in the computer
money shaft.

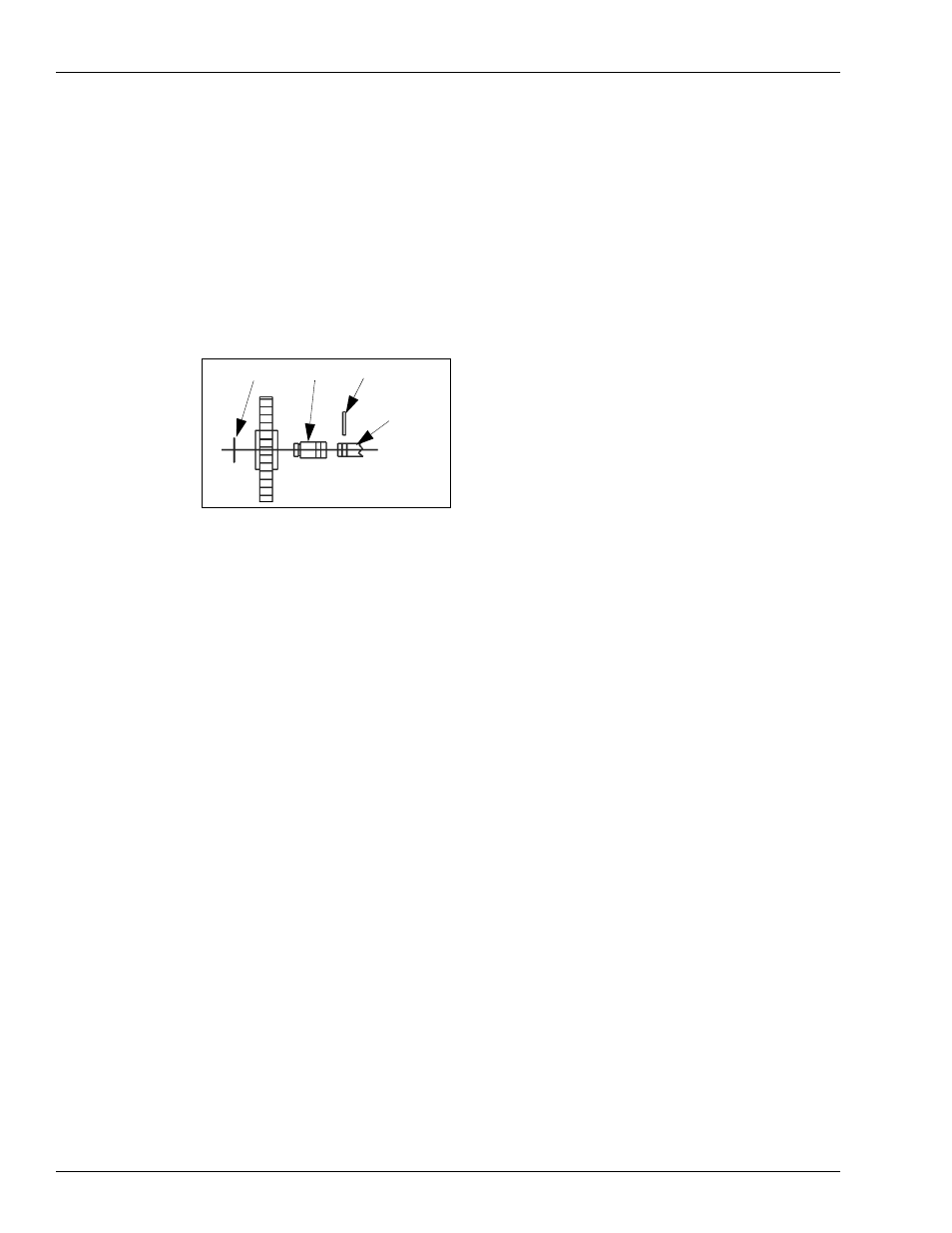

Figure 1: Driver Gear on Meter Computer Shaft
Retaining Ring Hub
Pin
Computer
Shaft
2
Place a hub on the shaft with the slotted portion of the hub straddling the extending pin and
align the hole in the hub with the pin.
3
Push the pin through the hole in the hub until the pin extends equally on both sides of the hub.
4
Place a gear on the hub and align the pin in the shaft with the bearing slot in the gear.
5
Secure the gear in place by placing a retaining ring in the slot near the end of the shaft.
6
through
on the shaft of the other computer.
Installing the Plate and Idler Assembly
1
In the kit, locate two K85736-39 screws and two 027044 Plate and Idler Assemblies. See
Note: The 053920 mounting screw for the Plate and Idler Assembly is a self-tapping screw.
Turning the screw into the mounting hole in the computer side frame and then removing
it without the assembly in place will make mounting the assembly easier.
2
At one of the computers, hold the Plate and Idler Gear Assembly in place and loosely secure it
with the mounting screw. The boss and bracket holes in the computer assembly must align for
proper gear meshing with the previously installed gear.
