MDE-4506A Atlas™ Pulser Kits M06245K0XX Installation · May 2006 Page 11
Installing the Pulser Kit in Twin Units (Kits M06245K001 through M06245K003 and M06245K008)
5 On the left computer, remove and discard two assembly screws and replace with the two
spacers in positions shown in
Figure 4 . Notice the difference in part numbers and position of
the spacers.

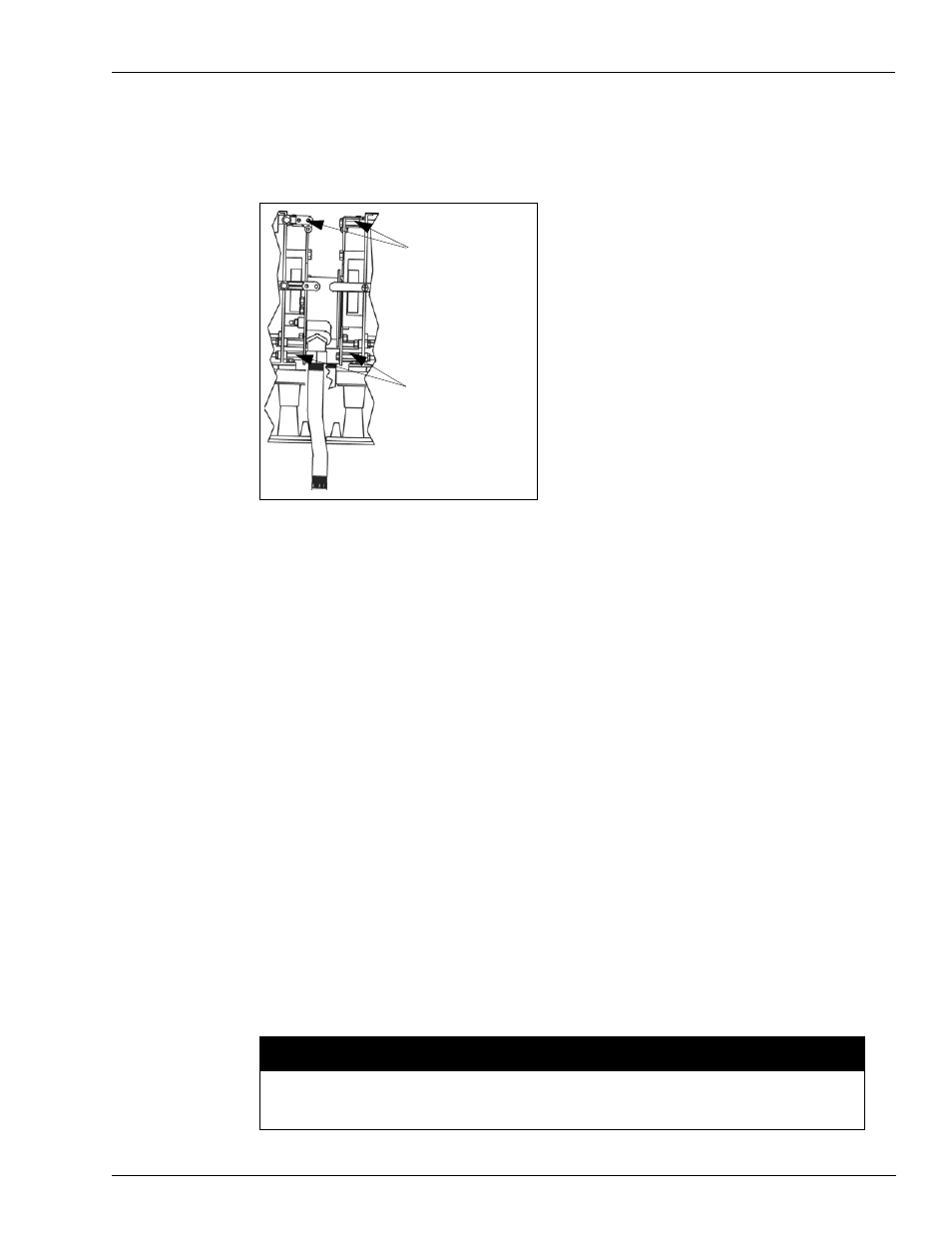

Figure 4: Front Pulser Assembly
056895 Spacers
056877 Spacers
6 Place the front pulser (one with M05292B001 or M05368B001 conduit mounted on it) in
position (installs on the left computer) by positioning the conduit mounted on the pulser
through the slot in the unit between the computers. Ensure that the pinned shaft on the pulser
aligns with the center hole in the idler gear (refer to
Figure 2 on page 9 ) and the pin seats in the
slot in the gear. The mounting holes in the mounting plate must align with the holes in the
spacers. See
Figure 4.
7 Loosely secure in place with two washers and two screws.
8 Ensure that the parts are meshed properly and tighten the screws.
9 Repeat step 2 through step 5 for the second pulser and coupling assembly (installs on the right
computer).
Remounting the Computers
To remount the computers, proceed as follows:
1 At the side shaft mounting, turn the rotating wheel (on the computer) until the mark on the
wheel is pointing upward.
2 Mount the shaft on the computer and pin it with the pin saved during removal.
3 Mount the vertical shaft in the slot noted during removal (pin in shallow slots).
4 Move the computer in place aligning the mounting holes and ensuring that the two shafts are
properly seated (as noted prior to moving the computers).
Improper alignment can cause meter/computer wear/damage or stalling of the meter/
computer at slow flow rates.
CAUTION
