Hardware Information
Chapter 17
145

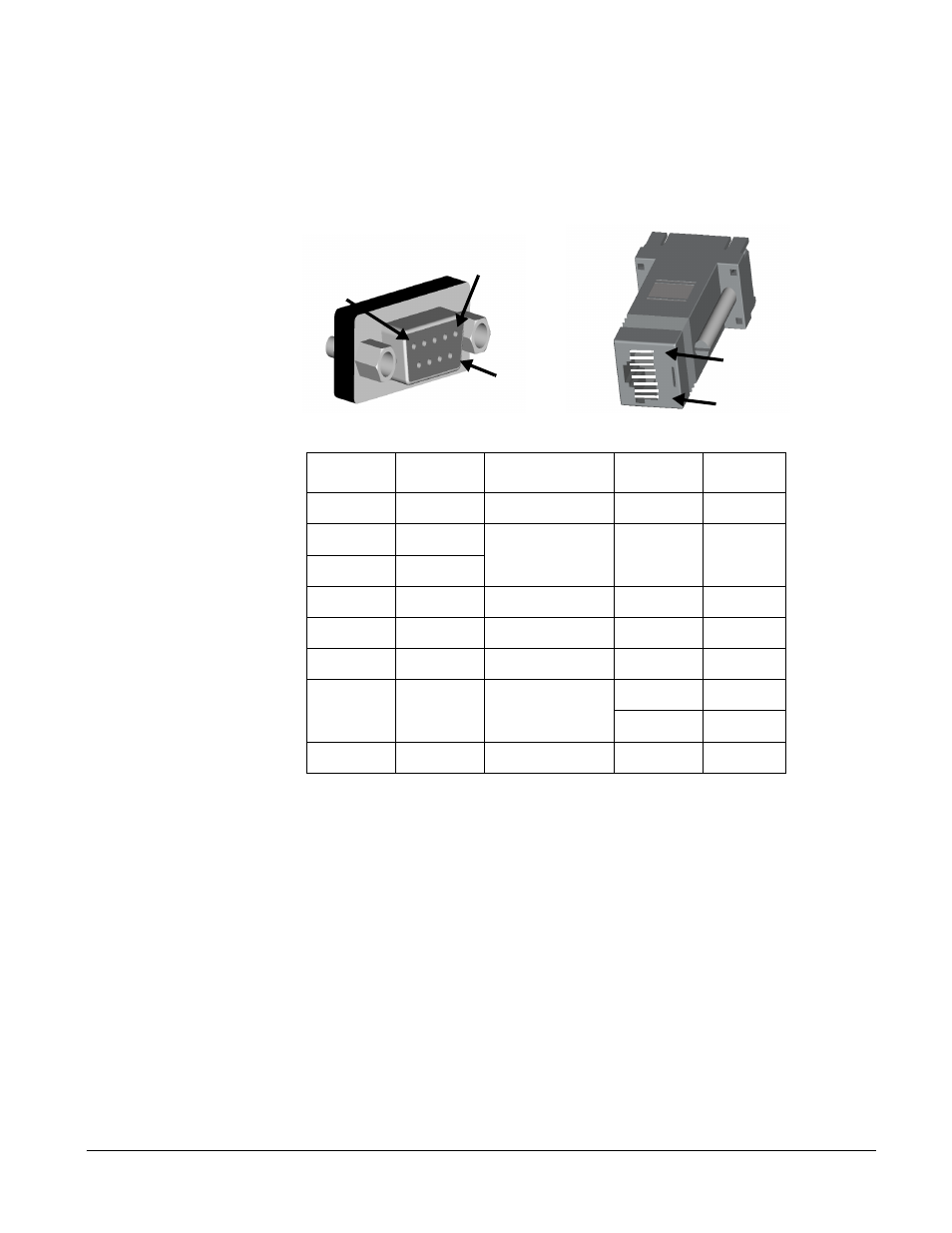

DB-9 Female Console Adapter
(Digi 8-pack reorder P/N 76000671)
DB-9 Female to RJ-45 Pin Assignments
RJ-45
Signal
DB-9F
Signal
1
CTS
Connected to
7
RTS
2
DSR
Connected to
4
DTR
5
DCD
3
RxD
Connected to
3
TxD
4
GND
Connected to
5
GND
6
TxD
Connected to
2
RxD
7
DTR
Connected to
1
DCD
6
DSR
8
RTS
Connected to
8
CTS
Pin #5
Pin #1
Pin #6
Pin #1
Pin #8
