Cable Adapters
144
Chapter 17
Cable Adapters
The Digi CM comes with four cable adapters. The following illustrations show
cable adapter pin outs. Additional adapters can be purchased from Digi in
quantities of 8.

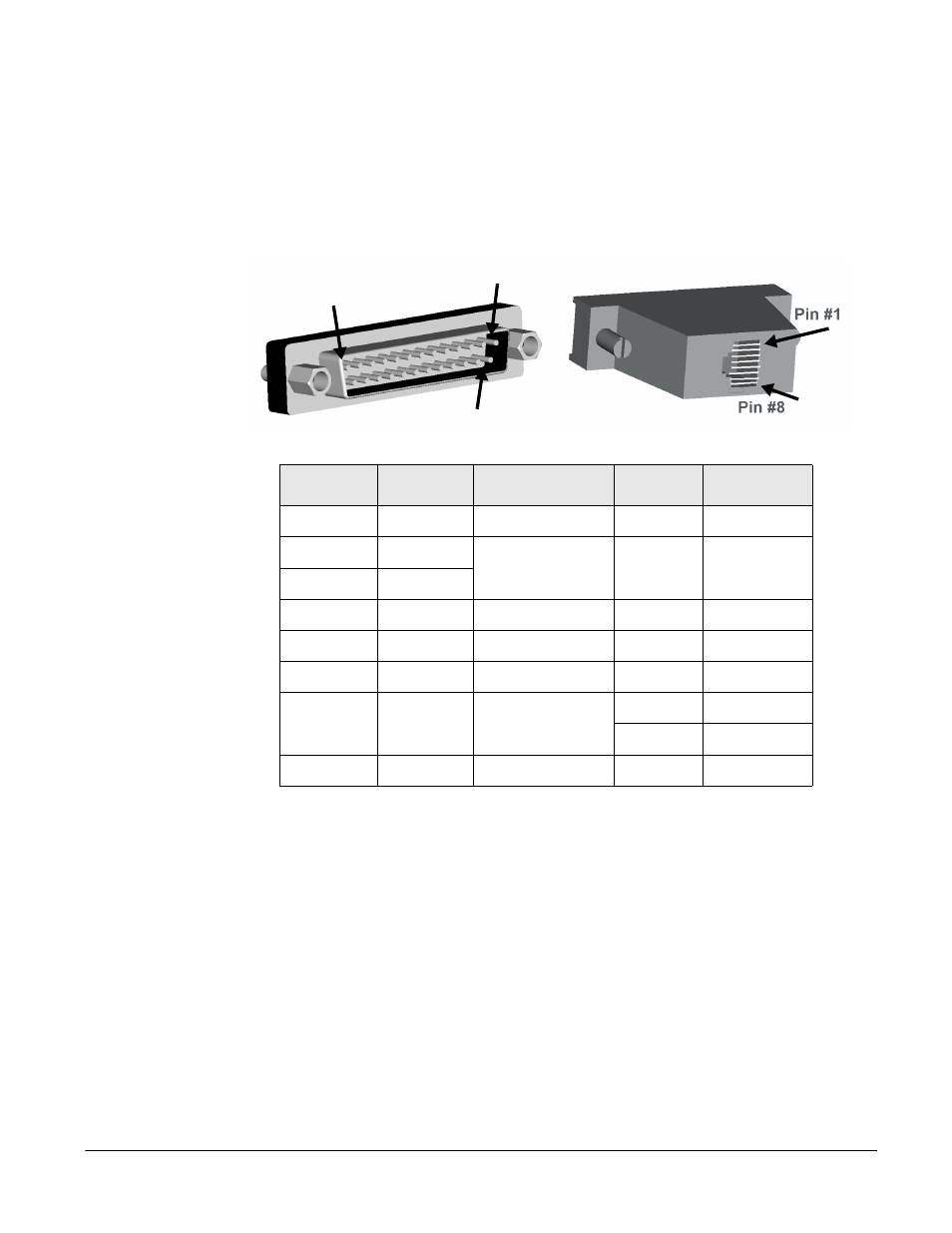

DB-25 Male Console Adapter
(Digi 8-pack reorder P/N 76000672)
DB-25 Male to RJ-45 Connector Pin Assignments
RJ-45
Signal
DB-25M
Signal
1
CTS
Connected to
4
RTS
2
DSR
Connected to
20
DTR
5
DCD
3
RxD
Connected to
2
TxD
4
GND
Connected to
7
GND
6
TxD
Connected to
3
RxD
7
DTR
Connected to
6
DCD
8
DSR
8
RTS
Connected to
5
CTS
Pin #1
Pin #13
Pin #25
