Page 64: Figure 2-32 hitless switching dialog -48
Vipersat
2-48
CDM-570/L, CDD-56X Parameter Editor User Guide
choosing a value for this allocation, future bandwidth requirements for the chan-
nel must be balanced against efficient bandwidth utilization.
Hitless Switching
Unless inherent delays in configuring both ends of a satellite bandwidth link
during dynamic switching are accounted for, transmitted data may be lost
during the transition. The time for a switch command to be sent across the satel-
lite link (~ 250 ms), the command processing time, as well as receiver acquisi-
tion time must be considered. The Vipersat Hitless Switching feature provides a
means to coordinate timing and utilize buffering to eliminate these data outages.
Click on the Hitless Switching menu item below Application to display the
dialog shown in figure 2-32.

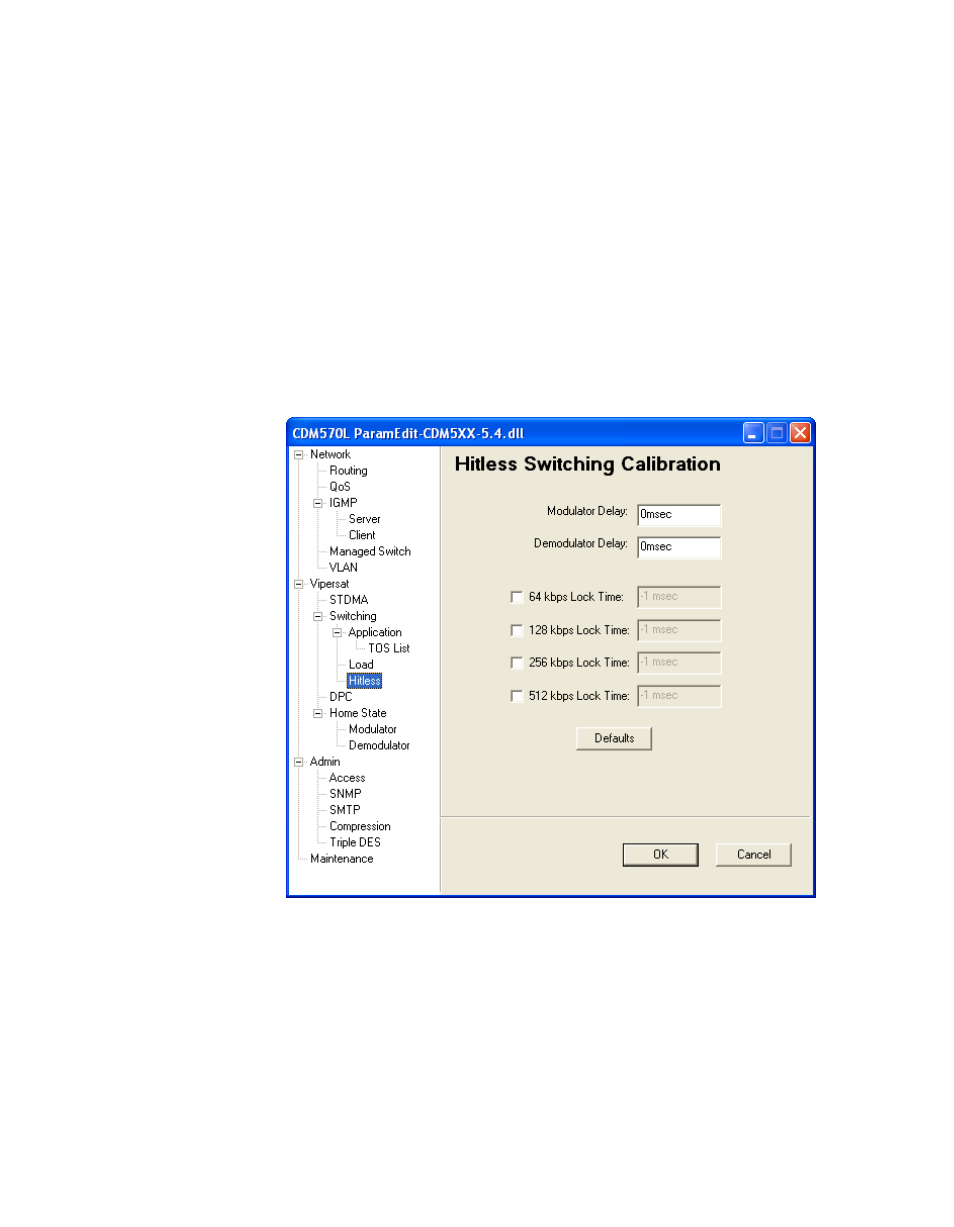

Figure 2-32 Hitless Switching dialog
Modulator Delay
This field allows the operator to insert additional delay to buffer more data after
modulator transmission is ceased.
