Network
2-18 CDM-570/L, CDD-56X Parameter Editor User Guide
Diff Serv QoS Mode
Selecting the Diff Serv Mode radio button displays the QoS dialog appearance
shown in figure 2-13. This selection makes the target unit fully compliant with
the Differentiated Services QoS standards. All rules are preconfigured.

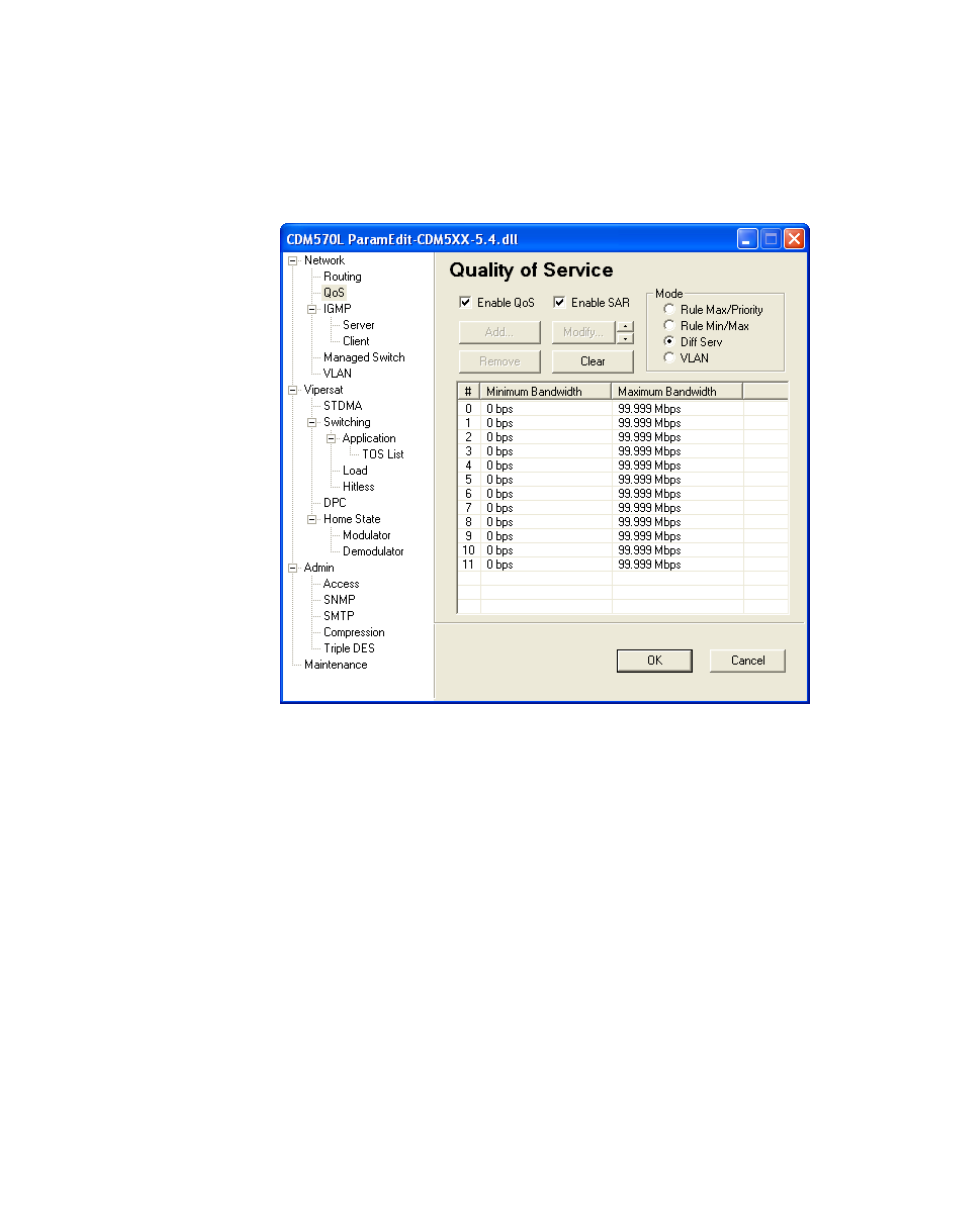

Figure 2-13 QoS Tab, Diff Serv Mode
Rules can not be added, removed, or cleared. To modify the bandwidth settings
for a rule, select the rule and click on the Modify button. Uncheck the All box to
edit the Bandwidth settings, as shown in figure 2-14.
