2-38 CDM-570/L, CDD-56X Parameter Editor User Guide
For STDMA set to ECM, enter the SCPC Data Rate and the Switch Type
to be used by this remote.

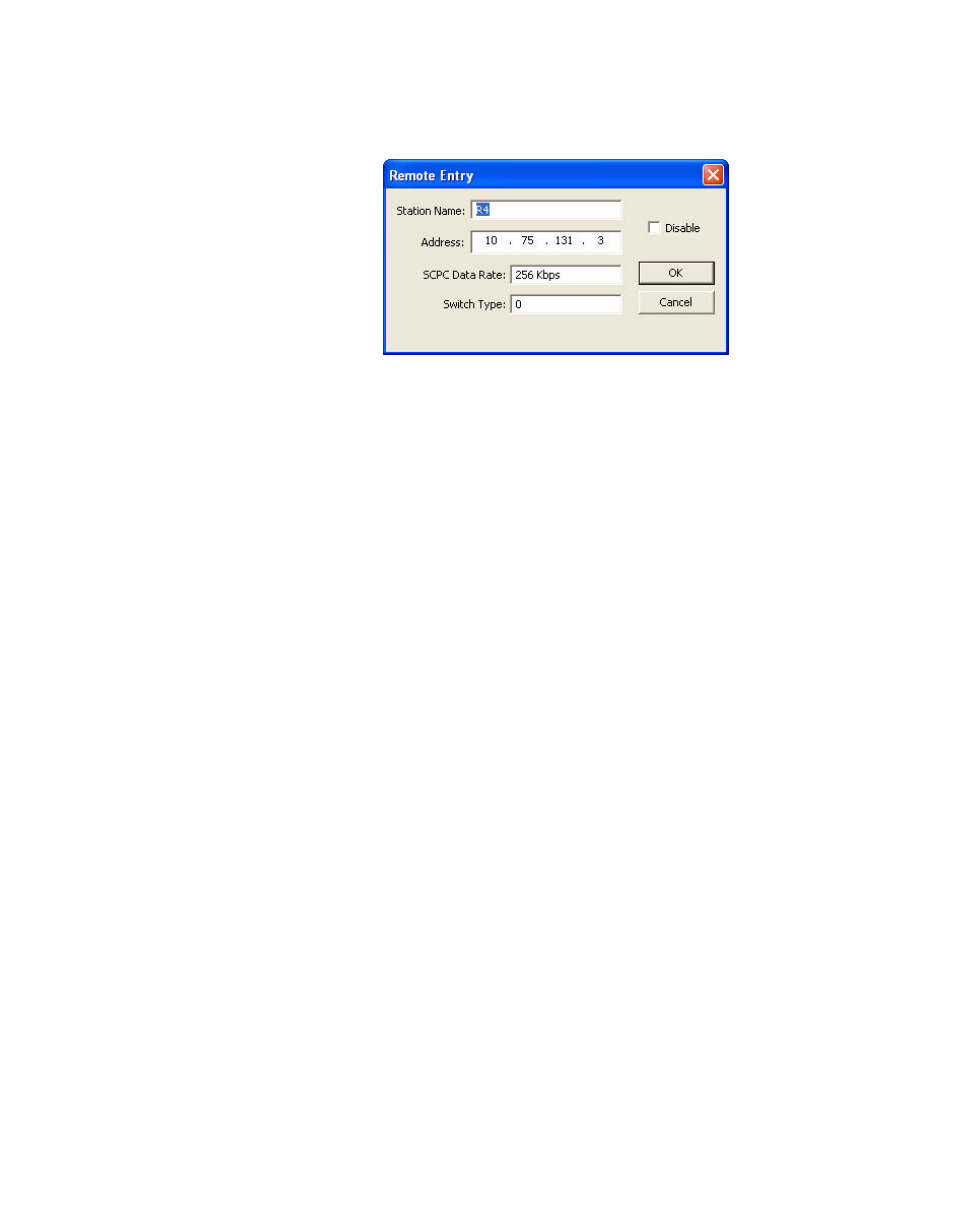

Figure 2-25 Remote Entry dialog, ECM
• Remove - Selecting a remote from the list, then clicking the Remove
button will remove the remote from the VMS.
• Disable - Selecting a remote from the list, then clicking the Disable button
will disable the selected remote.
• Modify - Selecting a remote from the list then clicking the Modify button
will display the Remote Entry dialog shown in figure 2-25, allowing the
information for the remote to be edited.
• Sort - Clicking the Sort button will sort the remotes in the list
• Clear - Clicking the Clear button will clear all remotes from the list.
Automatic Remote Removal
Appears for Hub modems only.
Selecting the Remote Removal menu item below STDMA displays the Auto-
matic STDMA Remote Removal dialog shown in figure 2-26. Clicking the
Enable Remote Removal check box activates the editable fields in this dialog
that provide settings to define when an associated remote will be removed from
the group.
