Network
2-8 CDM-570/L, CDD-56X Parameter Editor User Guide

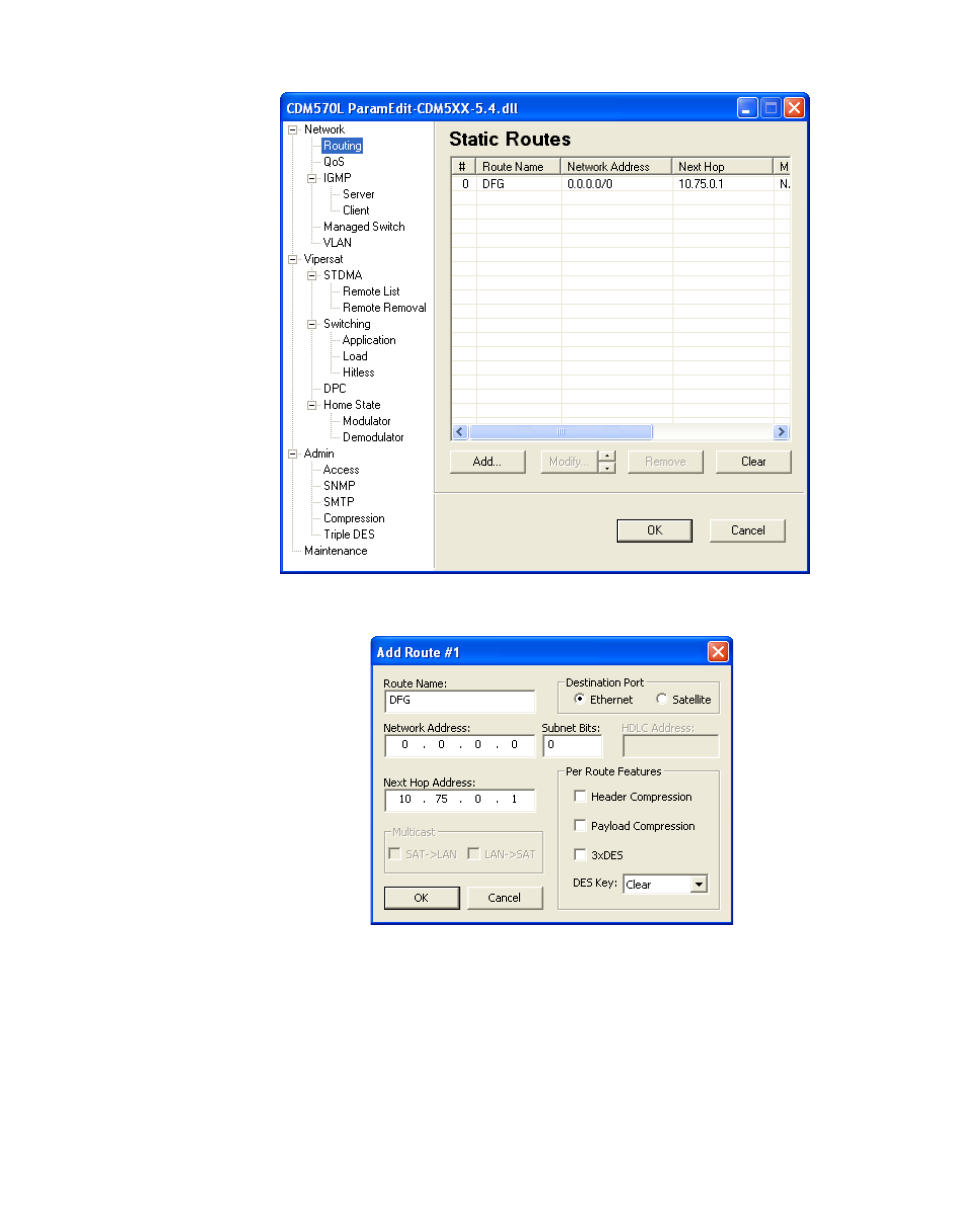

Figure 2-5 Routing dialog
Figure 2-6 Add Route dialog
Destination Port
The Destination Port can be either Ethernet (LAN) or Satellite (WAN). Note
that if the Ethernet radio button is selected, the Next Hop Address box
becomes active. If the Satellite radio button is selected, the Next Hop Address
