Chapter 2 - Using Parameter Editor 2-37
Vipersat
remote in the cycle begins transmitting. This delay prevents the remote from
overrunning the next terminal in the cycle.
The setting for this parameter should be obtained using the Vipersat STDMA
Calculator.
Remote List
Appears for Hub modems only.
Clicking the Remote List menu item below STDMA brings up the STDMA
Remote List dialog shown in figure 2-24.

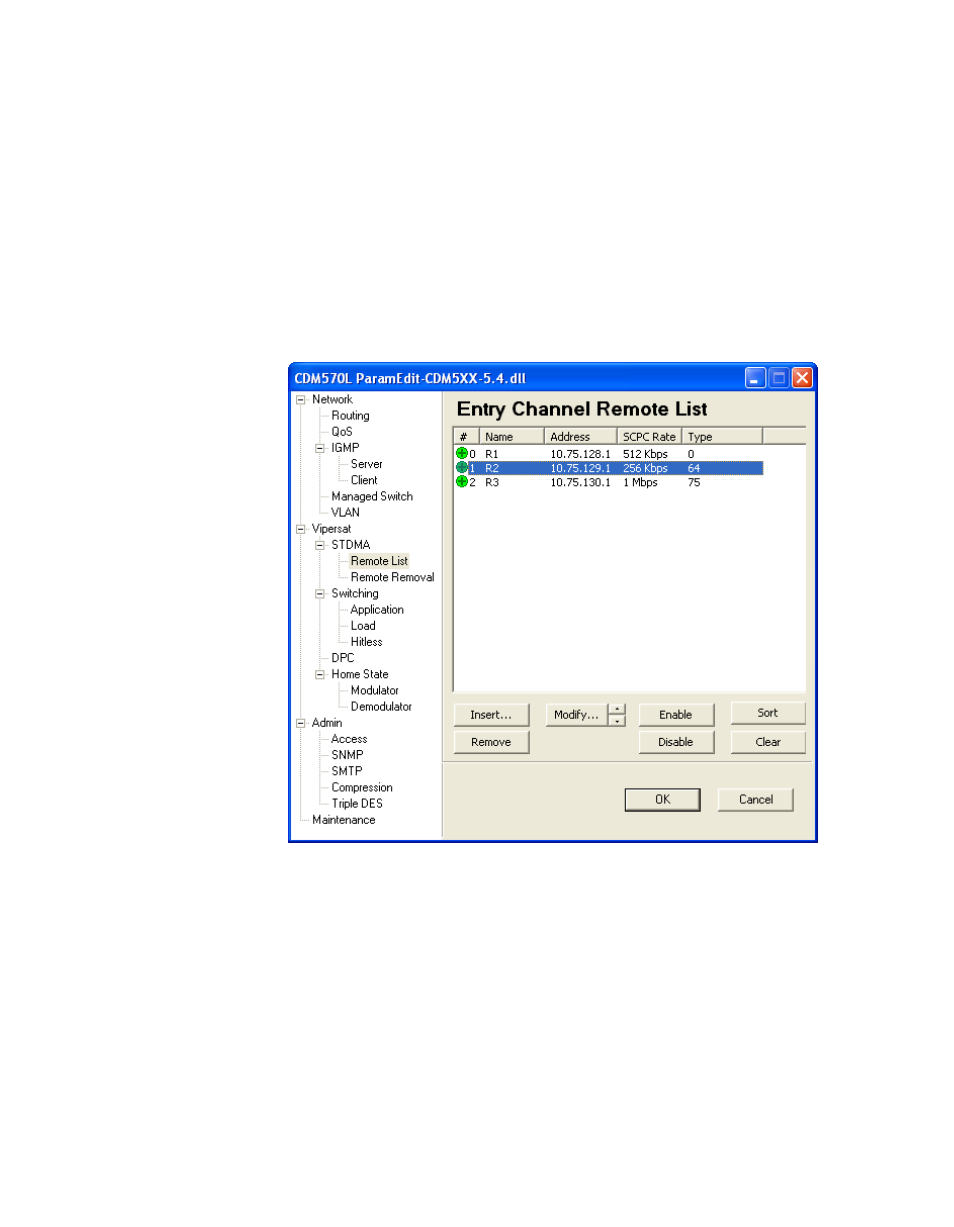

Figure 2-24 STDMA Remote List, ECM
Use the buttons at the bottom of the dialog to perform the following actions:
• Add/Insert - Clicking the Add (Insert when a remote is selected) button
displays the Remote Entry dialog (figure 2-25). Use this dialog to enter
the Name of a remote, the remote’s IP Address, and to either disable or
enable the remote with the Disable check-box.
For STDMA set to GIR mode, enter the Switch Rate and the GIR value to
be used by this remote.
