Chapter 2 - Using Parameter Editor 2-3
Parameter Editor Tree Menu
Parameter Editor Tree Menu
The Parameter Editor displays the editable parameter categories for each
network modem/router in the form of a tree menu, as shown in figure 2-1. The
tree appearance will vary depending on the selected Network Addressing Mode,
the Role Designation, and whether the unit has both a modulator and a demodu-
lator, or a demodulator(s) only.

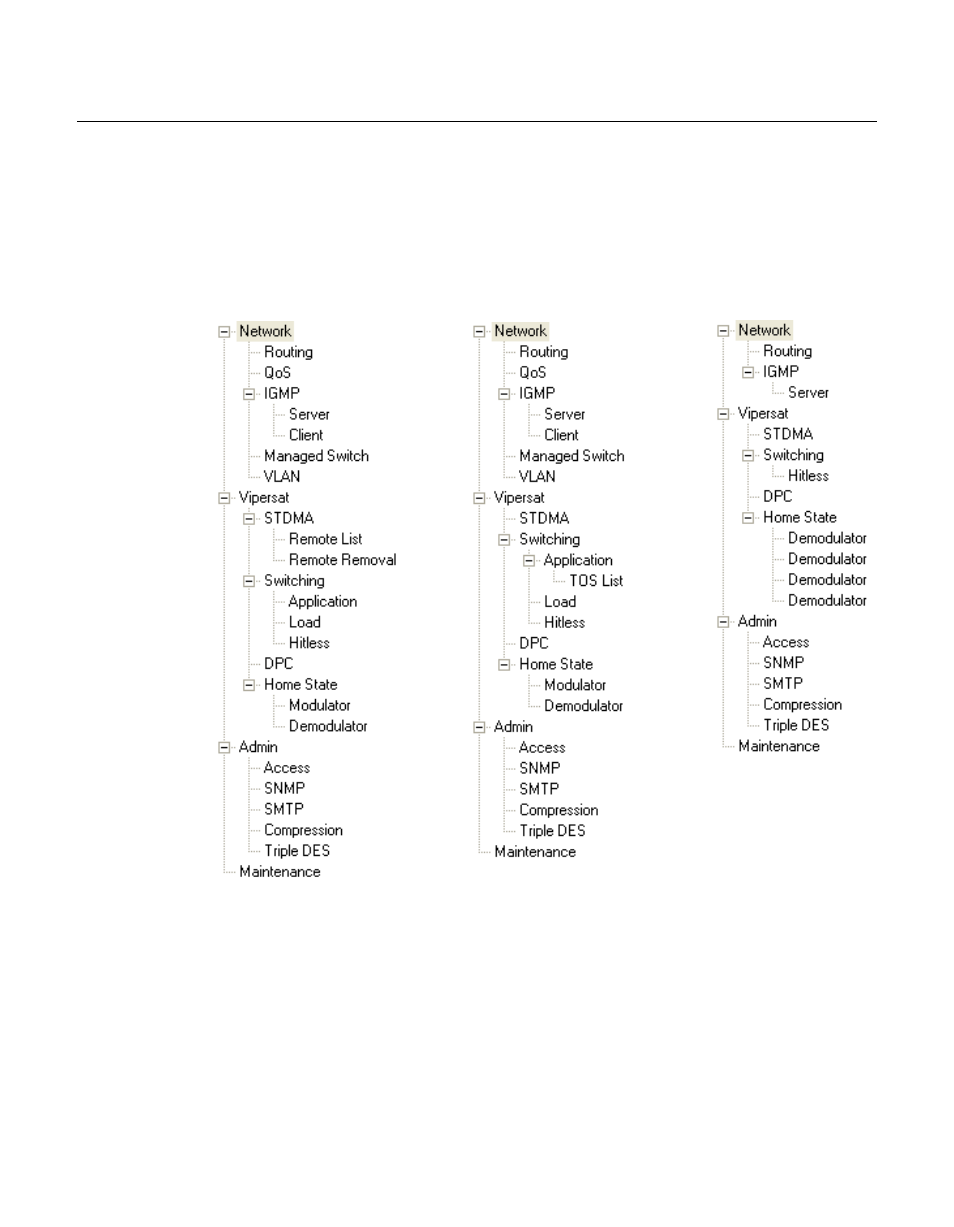

Figure 2-1 Tree Menus, Vipersat Modes
From the VMS, the Parameter Editor is accessed by selecting the modem
Configure command.
From VLoad, the Parameter Editor is accessed by clicking on the Edit Param
File button.
Vipersat Hub Vipersat Remote Expansion w/o Mod
