Page 47: In figure 2-21 is op
Chapter
2 -
Using Parameter Editor
2-31
Vipersat
power to ensure that burst map acknowledgements from that unit are received
by the Hub burst controller.

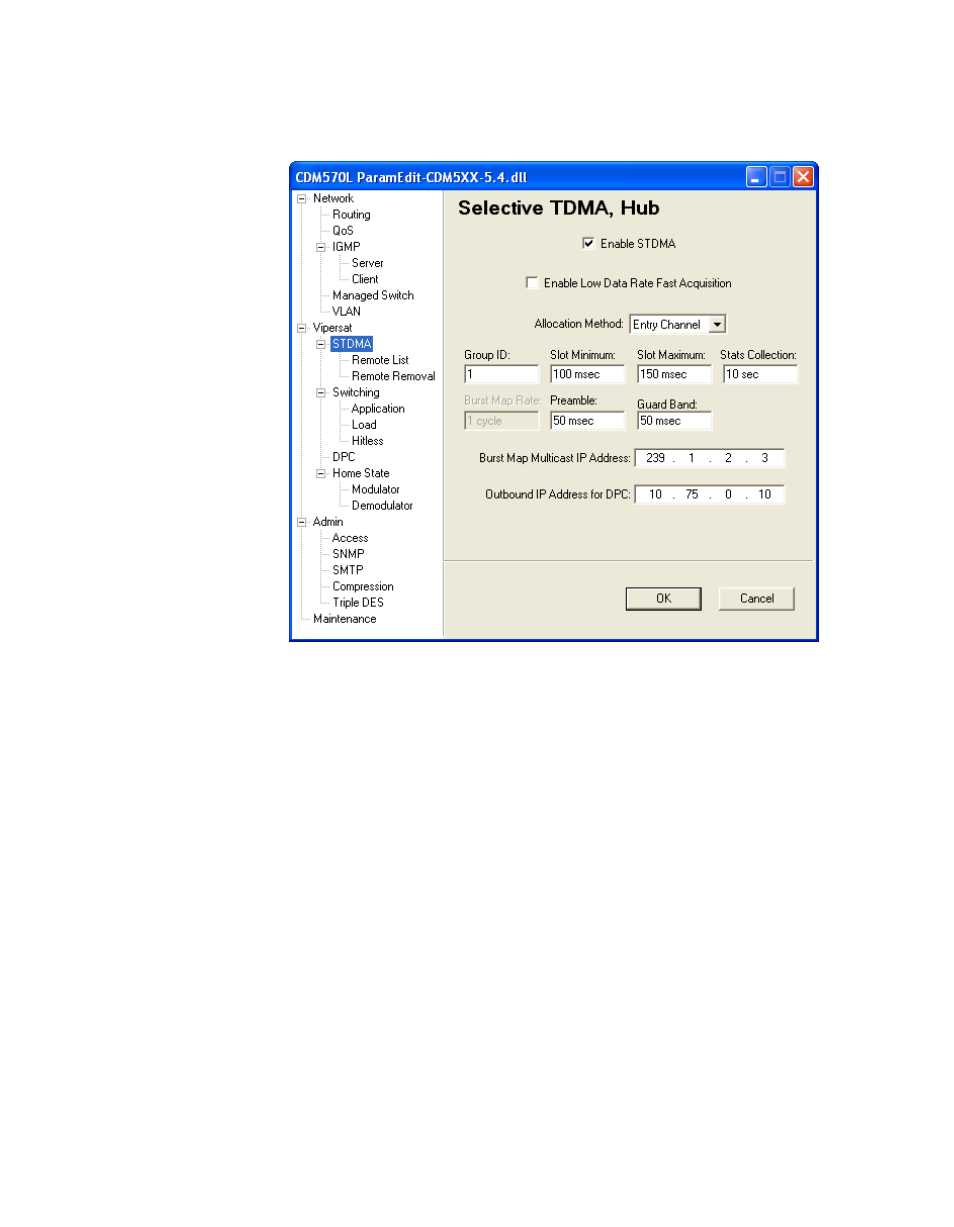

Figure 2-21 STDMA dialog, Hub Unit
When enabled, the burst controller sets a flag in the burst map that indicates it is
not receiving acknowledgements from an enabled Remote. When the Remote
receives the burst map, it will see the flag and automatically increase power by
3 dB above the default or Home State setting. If this closes the link, the burst
controller will clear the flag. Note that if the 3 dB increase is more than is neces-
sary, DPC will make a down adjustment to the appropriate level and this adjust-
ment will be added to the DPC Offset.
This feature is enabled by selecting the check box.
Enable Low Data Rate Fast Acquisition
Configurable on a Hub Burst Controller only.
Selecting this check box enables the Vipersat Burst Fast Acquisition Timing
(BFAT) feature that functions at low data rates (64 kbps to 256 kbps). This
feature allows for significantly faster acquisition times at these data rates, even
with higher noise, resulting in improved efficiency of the shared STDMA chan-
