Parameter Editor Tree Menu
2-4
CDM-570/L, CDD-56X Parameter Editor User Guide
Configuration Alert
Parameter Editor performs a check of the configuration settings that are input by
the user. If any settings are found to be in conflict for the unit, an alert message
is generated to inform the user that an adjustment is necessary. When a dialog
containing a conflicting parameter setting is exited, an alert icon will appear in
front of the associated menu item (figure 2-2). Upon re-opening the dialog, an
alert icon will be displayed next to the field in question. Clicking on the icon
will display a pop-up info-tip that explains the conflict.

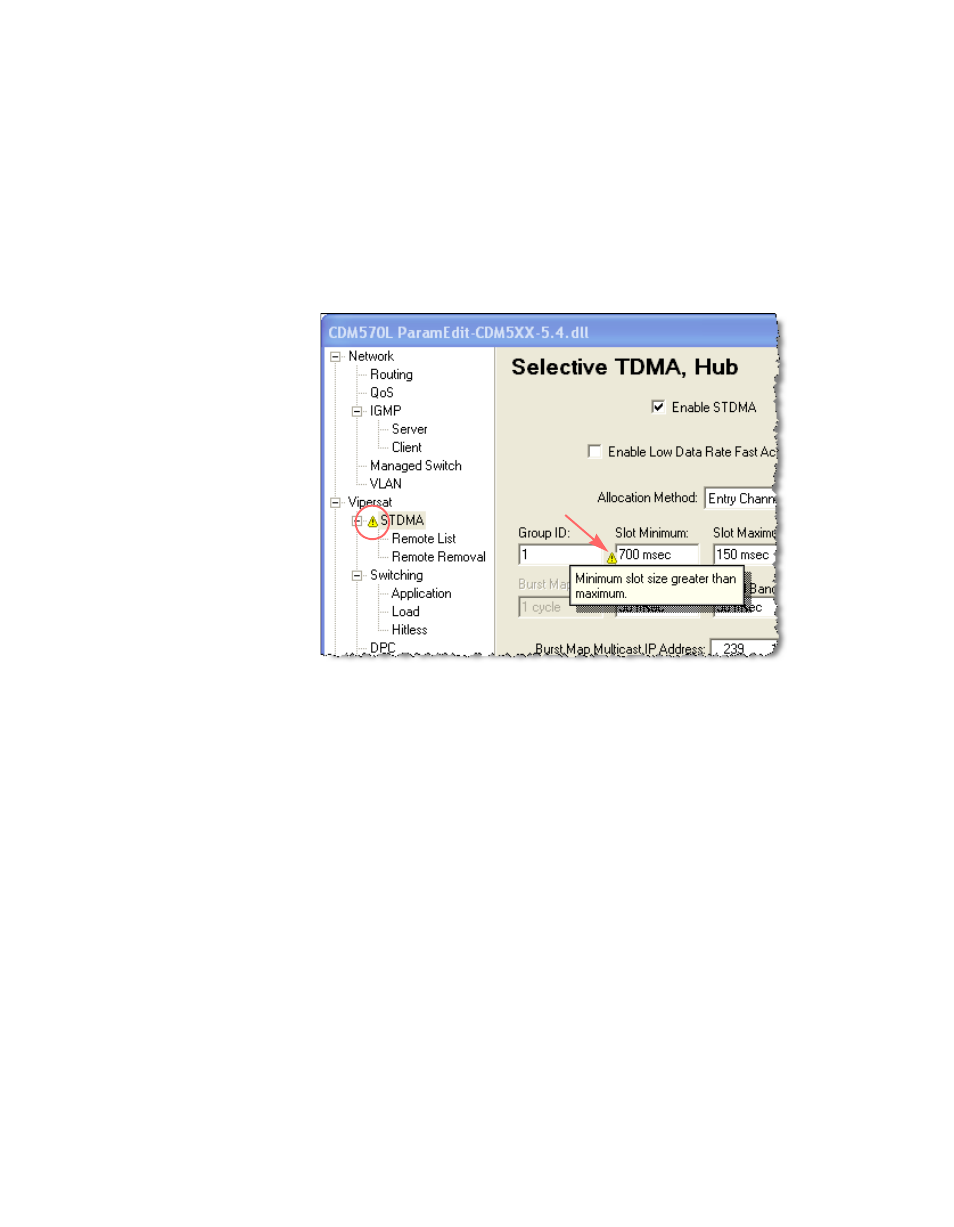

Figure 2-2 Alert, Parameter Conflict
The following sections describe each of the menu items and their associated
parameter settings.
