Chapter 2 - Using Parameter Editor 2-39
Vipersat

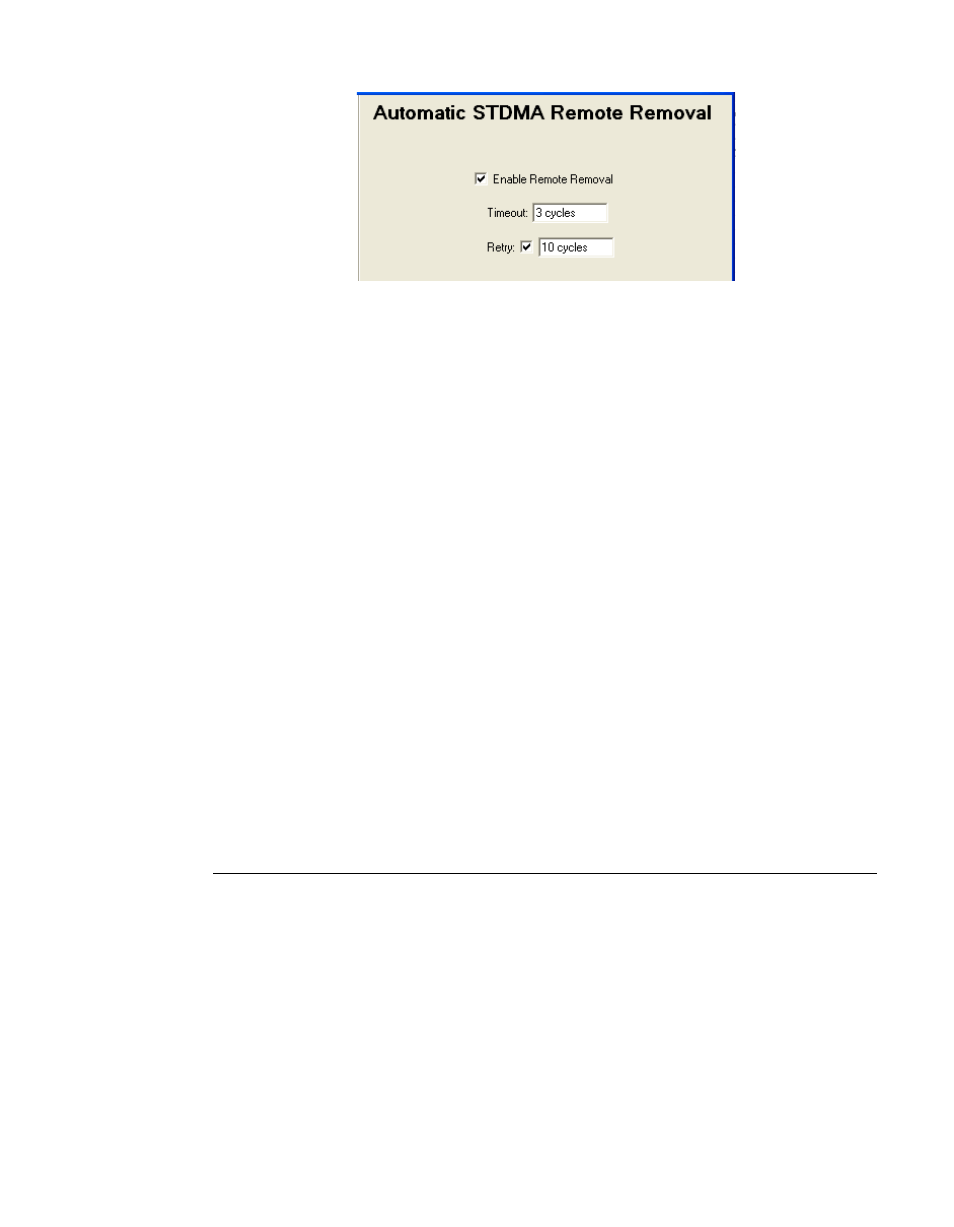

Figure 2-26 Automatic Remote Removal
Timeout
The value entered in the Timeout field determines the number of cycles with no
connection (received ACKs) before a remote is removed from the network (the
burst map). This would be used, for example, where a mobile remote has
finished its assignment and has shut down.
After the number of cycles entered in the dialog above, the remote is removed
from the network and the bandwidth resources it had been using are available
for other uses.
Retry
The Retry field value determines the number of cycles which are allowed to
pass, following the removal of a remote, before that remote is returned to the
burst map and an attempt is made to re-establish a link.
This allows, again using a mobile remote as an example, shutting down the
remote at one location, moving it to a new location, and then automatically re-
establishing a connection to the satellite network.
Switching
For a detailed description of Automatic Switching in the VMS, refer to the
Vipersat Management System User Guide.
Clicking the Switching menu item displays the dialog shown in figure 2-27.
The fields available for edit on the sub-menu dialogs will vary, depending on
the function/role that this modem unit is performing in the network.
The Vipersat Automatic Switching feature allows the modem unit to automati-
cally adjust to varying bandwidth demands in the Vipersat network by switch-
ing between STDMA and SCPC. Automatic Switching must be enabled on a
